The classic of the circular connector
series the Zylin R2.5 is a low
cost
alternative. They are suitable for
applications in mechanical engineering,
in measurement and control
engineering and in medical
electronics.
# of contacts: 8+1, 9, 12, 16, 17
433
TECHNICAL DATA
Number of Contacts:
Insulation Group:
8+1, 9, 12, 16, 17
B; corresponds to equipment used primarily in residential premises, sales or other
professional environments, precision engineering workshops, laboratories, testing
centers, hospitals, etc.
8+1: 60V
8+1: 60V
8+1: N/A
9:60V
9: N/A
9: N/A
12: 60V
12: 60V
12: 60V
16:60V
16: 60V
16: 60V
17: 60V
17: N/A
17: N/A
Rated Voltage:
Solder:
PCB Solder:
Crimp:
Rated Current:
3
Solder:
PCB Solder:
Crimp:
8+1: 7.5A
8+1: 7.5
8+1: N/A
9: 7.5A
9: N/A
9: N/A
12: 7.5A
12: 7.5A
12: 5.0A
16: 7.5A
16: 7.5A
16: 5.0 A
17: 7.5A
17: N/A
17: N/A
Test Voltage:
Solder:
PCB Solder:
Crimp:
8+1: 1.5KV
8+1: 1.5KV
8+1: N/A
9: 1.5KV
9: N/A
9: N/A
12: 1.5KV
12: 1.5KV
12: 1.5KV
16: 1.15KV
16: 1.15KV
16: 1.15KV
17: 1.15KV
17: N/A
17: N/A
Temperature Range:
-40ºC to 125ºC
Protection Class:
IP 65 ... 67 according to DIN 40050 depending on cable gland
Wire Gauge:
Solder:
1 mm2 to Ø1; 2 mm2 to Ø2
PCB Solder:
PC Board Assembly
Crimp:
0.08 - 0.52 mm2
Contact Resistance (mOhm):
Solder:
8+1: <3
9: <3
12: <3
16: <3
PCB Solder:
8+1: <3
9: N/A
12: <3
16: <3
Crimp:
8+1: N/A
9: N/A
12: <3
16:<3
Mating Cycles:
500 (higher mating cycles depends on the application)
Material:
Housing:
Copper alloy, nickel plated
Insulation Body:
Thermoplast UL 94 V-0
Contacts:
Copper alloy, gold plated
Gaskets:
Neoprene
17: <3
17: N/A
17: N/A
Parts are specified separately but sold assembled.
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
434

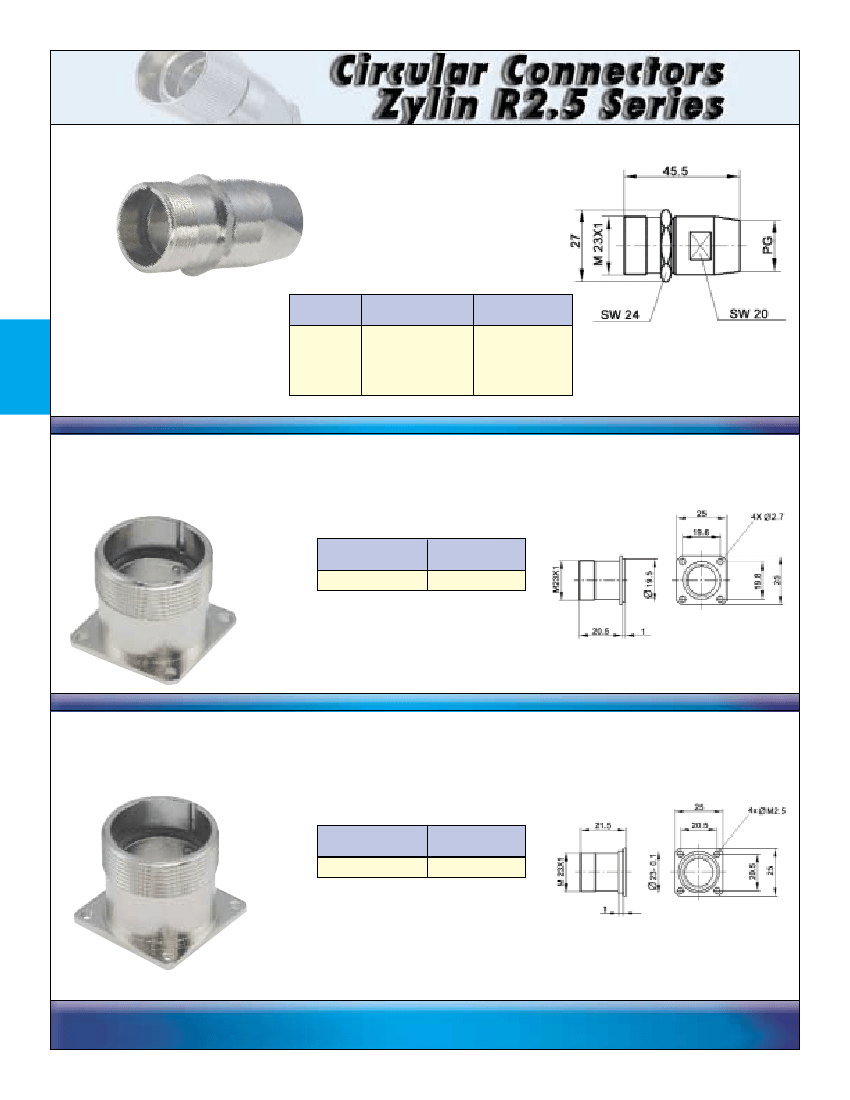

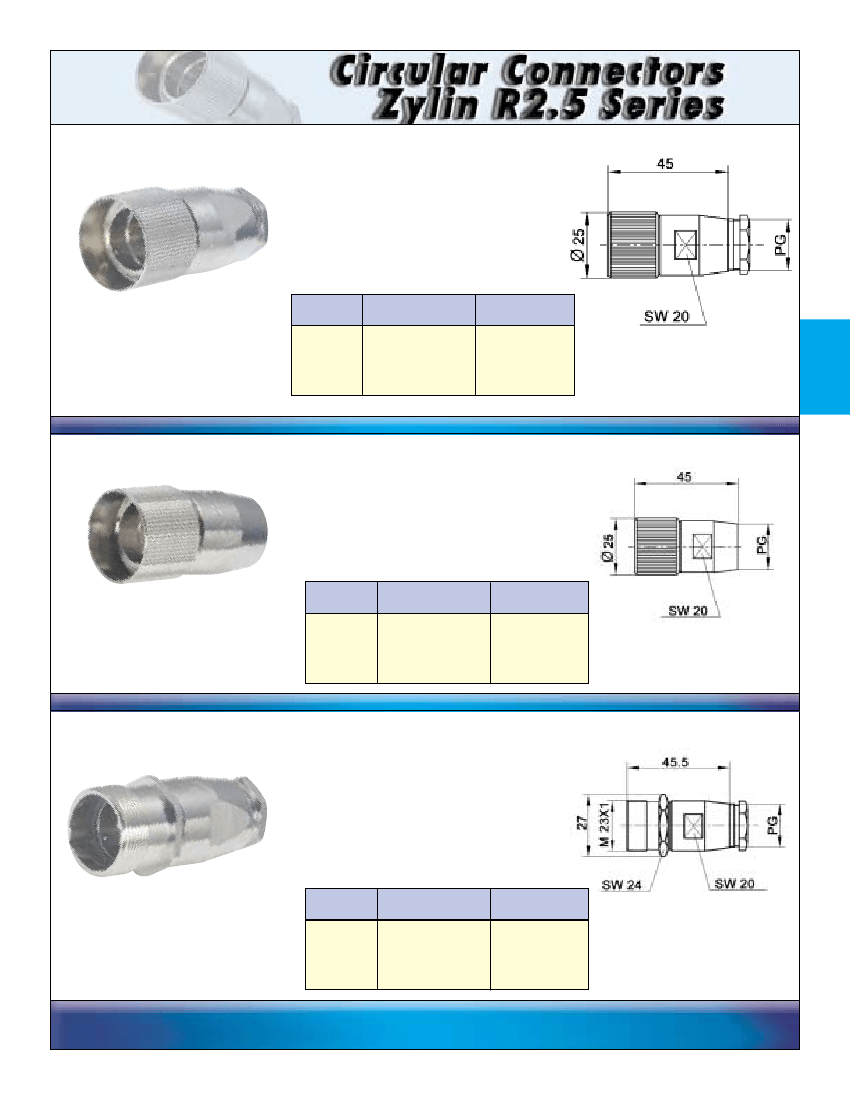

R2.5 CONNECTORS WITH CABLE GLAND
Accessory Part Numbers:
Plastic Protection Cap: 50.104151
Assembly Removal Tool: 50.100800
PG
7
9
11
13.5
Part
Number
20.1040AB
20.1040AC
20.1040AD
20.1040AE
Standard
Pack
5
5
5
5
These connectors can be
male or female.
3
R2.5 CONNECTORS WITHOUT CABLE GLAND
Accessory Part Numbers:
Plastic Protection Cap: 50.104151
Assembly Removal Tool: 50.100800
PG
7
9
11
13.5
Part
Number
20.1040CA
20.1040CB
20.1040CC
20.1040CD
Standard
Pack
5
5
5
5
These connectors can be
male or female.
R2.5 COUPLING WITH CABLE GLAND
Accessory Part Numbers:
Plastic Protection Cap: 50.105150
Assembly Removal Tool: 50.100800
PG
7
9
11
13.5
Part
Number
20.1050AB
20.1050AC
20.1050AD
20.1050AE
Standard
Pack
5
5
5
5
These connectors can be
male or female.
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
435
R2.5 COUPLING WITHOUT CABLE GLAND
3
Accessory Part Numbers:
Plastic Protection Cap: 50.105150
Assembly Removal Tool: 50.100800
PG
7
9
11
13.5
Part
Number
20.1050CA
20.1050CB
20.1050CC
20.1050CD
Standard
Pack
5
5
5
5
These connectors can be
male or female.
R2.5 PANEL MOUNT SOCKET:
ASSEMBLY ON THE OUTSIDE OF THE PANEL
Part
Number
20.1010AA
Standard
Pack
5
Accessory Part Numbers:
Flat Gasket: 50.101200
Plastic Protection Cap: 50.105150
Metal Screw Cap: 50.101102
These connectors can be
male or female.

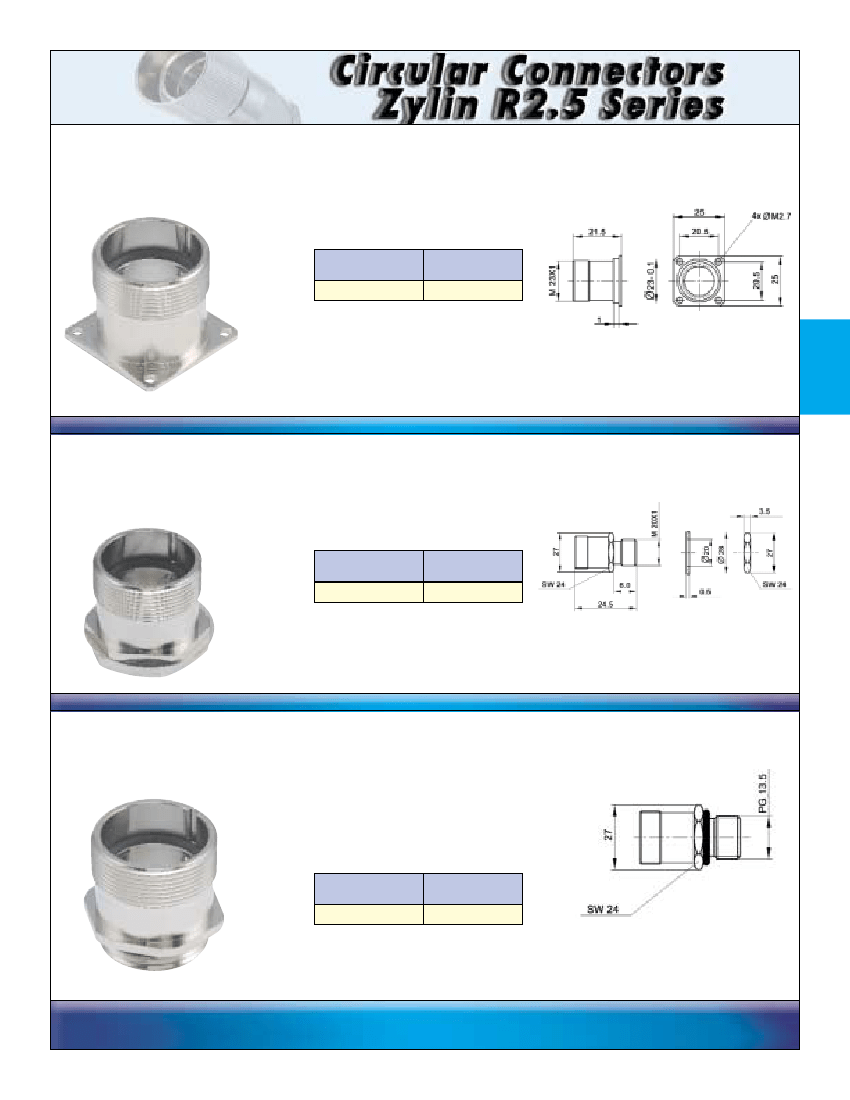

R2.5 PANEL MOUNT SOCKET:
ASSEMBLY ON THE INSIDE OF THE PANEL
Part
Number
20.1020AA
Standard
Pack
5
Accessory Part Numbers:
Flat Gasket: 50.1012201
Plastic Protection Cap: 50.102150
Metal Screw Cap: 50.102102
These connectors can be
male or female.
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
436
R2.5 PANEL MOUNT SOCKET:
ASSEMBLY ON THE INSIDE OF THE PANEL
Part
Number
20.1030AA
Standard
Pack
5
Accessory Part Numbers:
Flat Gasket: 50.1012201
Plastic Protection Cap: 50.103150
Metal Screw Cap: 50.103102
These connectors can be
male or female.
3
R2.5 PANEL MOUNT SOCKET: METRIC SINGLE HOLE ASSEMBLY ON
THE INSIDE OF PANEL WITH LOCKNUT
Part
Number
20.1060AA
Standard
Pack
5
Accessory Part Numbers:
Sealing Ring: 50.106202
Plastic Protection Cap: 50.106150
These connectors can be
male or female.
R2.5 PANEL MOUNT SOCKET: PG SINGLE HOLE MOUNT ASSEMBLY
ON THE INSIDE OF PANEL WITH LOCKNUT
Part
Number
20.1060KI
Standard
Pack
5
These connectors can be
male or female.
No accessories
w ww.co n ta c t el ec t ro ni cs . co m
.c o nt a
e le c
n ic s.
800-221-1451
0-
437
