DS50-1006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> DS50-1006

DS50-1006: DescriptionPower/Signal Relay, SPDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 50A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size130KB，3 Pages; ManufacturerDRI Relays Inc

Download Datasheet Parametric Compare View All

DS50-1006 Overview

Power/Signal Relay, SPDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 50A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount

DS50-1006 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	28.45 mm
body height	35.56 mm
Body length or diameter	47.24 mm
Maximum coil current (DC)	0.097 A
Coil operating voltage (DC)	18 V
Coil power	2716 mW
Coil release voltage (DC)	1.5 V
Coil resistance	290 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Maximum contact current (DC)	50 A
Contact (DC) maximum rated R load	50A@28VDC
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Electrical life	50000 Cycle(s)
Manufacturer's serial number	DS50
Installation features	PANEL MOUNT
operating hours	27 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	47.24mm x 28.45mm x 35.56mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	27 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

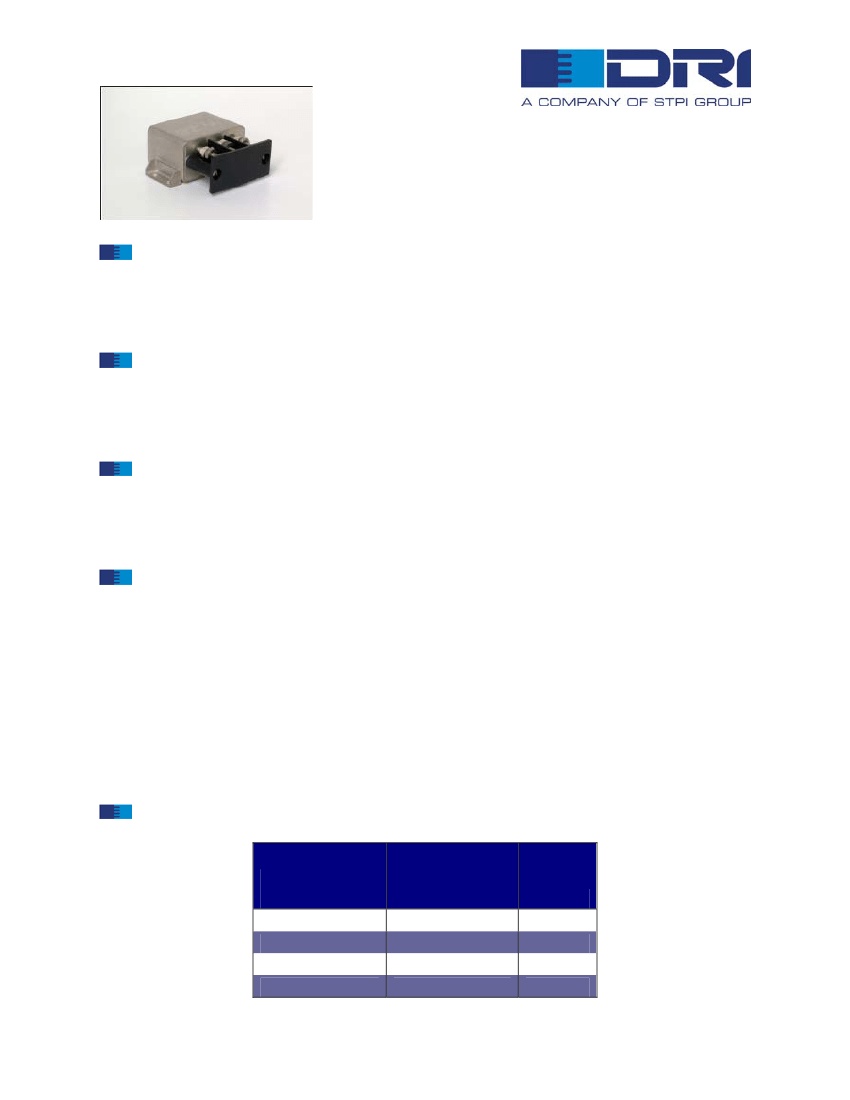

D50 & DS50

Military Specified

Meets MIL-PRF-6106

General Characteristics

Number of Poles:

Dimensions:

Weight:

1 Form Z (SPDT)

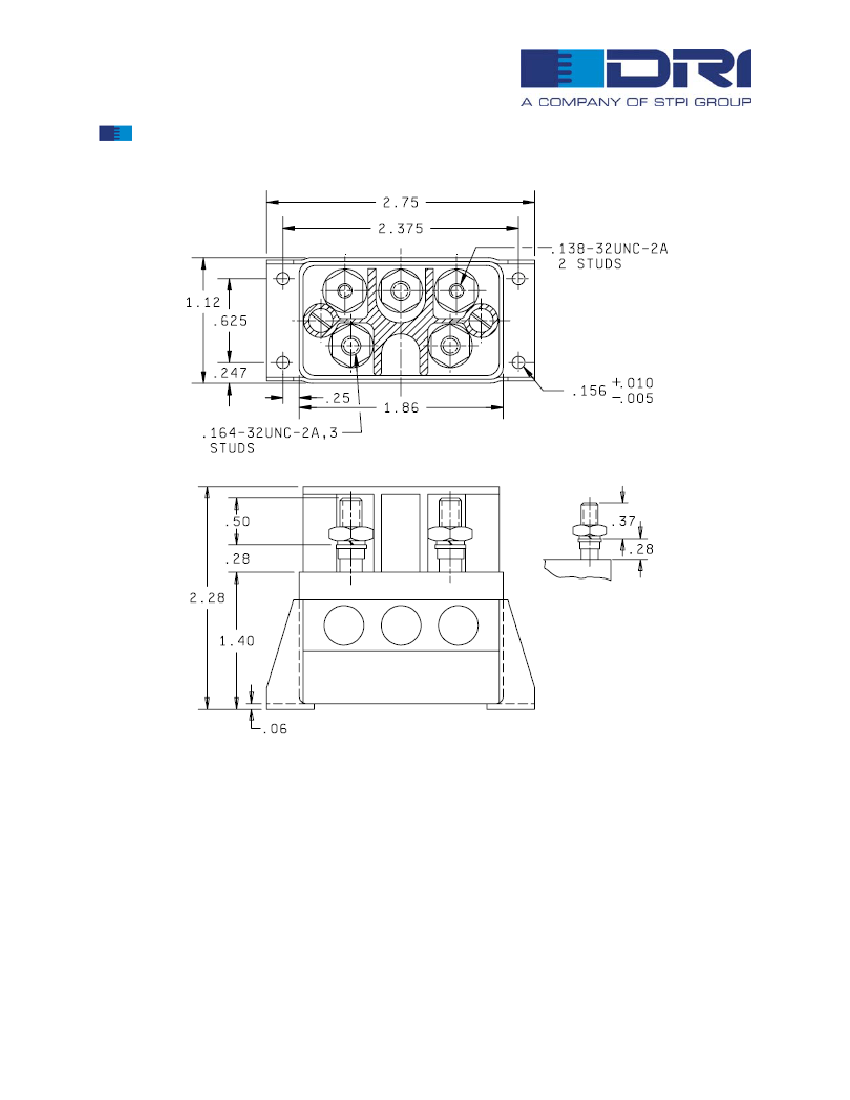

2.75” x 1.12” x 2.28”

(69.9mm x 28.5mm x 57.9mm)

0.43 lb. (195 grams)

Switching Characteristics

Operate Time @ 25 C:

Release Time @ 25 C:

Bounce Time:

Mechanical Life:

25 ms Max.

2 ms Max.

100,000 Cycles

Environmental Characteristics

Temperature Range:

Vibration (Sinusoidal):

Shock (any axis):

Seal:

-70 C to +125 C

15g 10-2,000 Hz

25g, 11 ms

-8

Hermetic (1x10 atm cm /s)

Electrical Characteristics

Contact Voltage Drop (at rated resistive load)

-Initial:

-After Guaranteed Life:

Dielectric Strength

Coil to Case @ Sea Level

-Initial @ 60 Hz:

All Other Points @ Sea Level

-Initial @ 60 Hz:

Insulation Resistance

-Initial:

Back EMF (Transient Voltage):

150 mV Max.

175 mV Max.

1,050 Vrms

100 MΩ Min, @ 500 Vdc

42 Vdc Max. (DS50 Only)

Contact Rating (Amps)

Type of Load

(High Level)

Resistive

Inductive

Motor

Lamp

55 Engineers Road

Hauppauge, NY 11788

Cycles x 10

28 Vdc

Mil Spec D50

Page 1/3

www.drirelays.net

(631) 342-1700

DS50-1006 Related Products

	DS50-1006	D50-1005	M6106/15-001	M6106/15-002
Description	Power/Signal Relay, SPDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 50A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount	Power/Signal Relay, SPDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 50A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount	Power/Signal Relay, SPDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 50A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount	Power/Signal Relay, SPDT, Momentary, 0.097A (Coil), 28VDC (Coil), 2716mW (Coil), 50A (Contact), 28VDC (Contact), DC Input, DC Output, Panel Mount
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	28.45 mm	28.45 mm	28.45 mm	28.45 mm
body height	35.56 mm	35.56 mm	35.56 mm	35.56 mm
Body length or diameter	47.24 mm	47.24 mm	47.24 mm	47.24 mm
Maximum coil current (DC)	0.097 A	0.097 A	0.097 A	0.097 A
Coil operating voltage (DC)	18 V	18 V	18 V	18 V
Coil power	2716 mW	2716 mW	2716 mW	2716 mW
Coil release voltage (DC)	1.5 V	1.5 V	1.5 V	1.5 V
Coil resistance	290 Ω	290 Ω	290 Ω	290 Ω
Maximum coil voltage (DC)	28 V	28 V	28 V	28 V
Coil/Input Power Type	DC	DC	DC	DC
Maximum contact current (DC)	50 A	50 A	50 A	50 A
Contact (DC) maximum rated R load	50A@28VDC	50A@28VDC	50A@28VDC	50A@28VDC
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V
Contact/Output Power Type	DC	DC	DC	DC
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
Manufacturer's serial number	DS50	D50	M6106	M6106
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
operating hours	27 ms	27 ms	27 ms	27 ms
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-70 °C	-70 °C	-70 °C	-70 °C
physical size	47.24mm x 28.45mm x 35.56mm	47.24mm x 28.45mm x 35.56mm	47.24mm x 28.45mm x 35.56mm	47.24mm x 28.45mm x 35.56mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPDT	SPDT	SPDT	SPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	27 ms	27 ms	27 ms	27 ms
seal	HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED	HERMETICALLY SEALED
surface mount	NO	NO	NO	NO
Termination type	SCREW	SCREW	SCREW	SCREW
