H5014NLT datasheet, PDF - EEWORLD Datasheet

H5014NLT: DescriptionDatacom Transformer, 1000 BASE-T Application(s), 1:1, ROHS COMPLIANT; CategoryPower management transformer; File Size317KB，3 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

H5014NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H5014NLT	-	-	View	Buy Now

Datacom Transformer, 1000 BASE-T Application(s), 1:1, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pulse Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Samacsys Description	Audio Transformers / Signal Transformers 1000BaseT SMD NonPoE 350uH .65Ohms 2-Port
Other features	MEETS IEE 802.3
application	1000 BASE-T
high	6.99 mm
Insulation voltage	1500 V
JESD-609 code	e3
length	27.81 mm
Manufacturer's serial number	H5014NL
Installation features	SURFACE MOUNT
Number of functions	4
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL

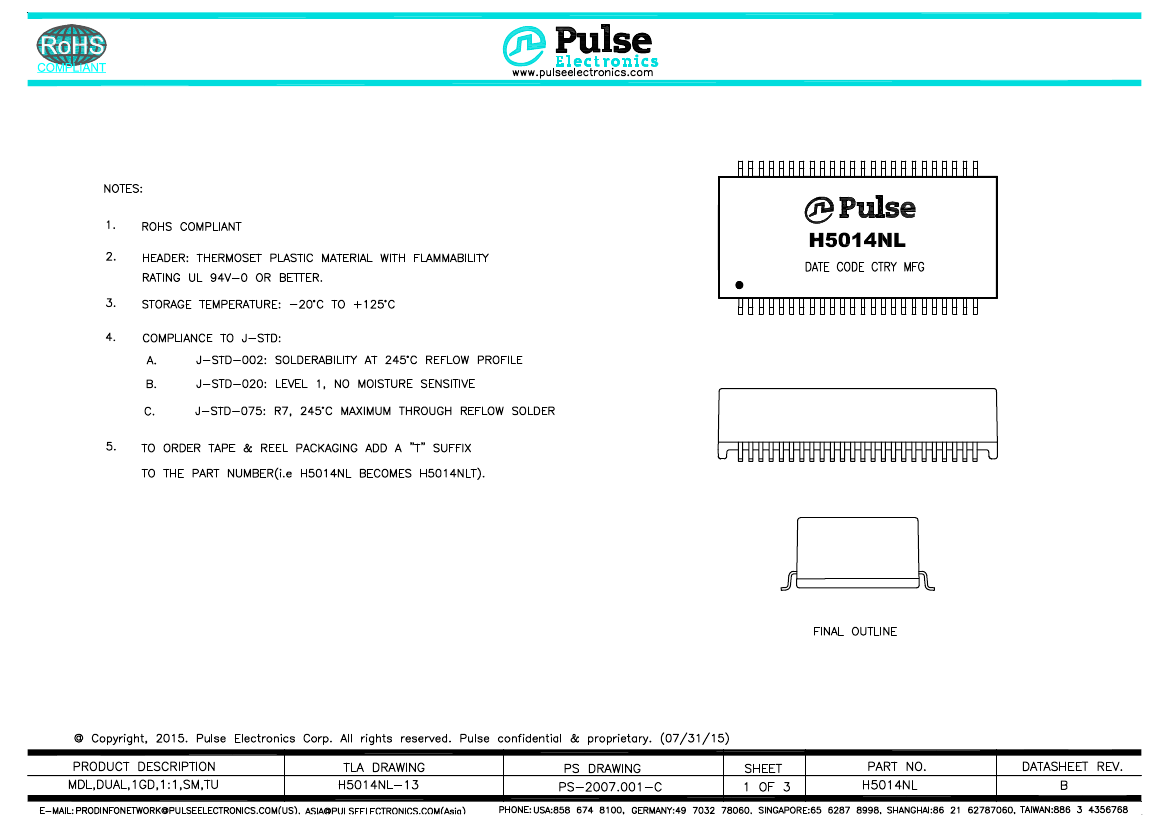

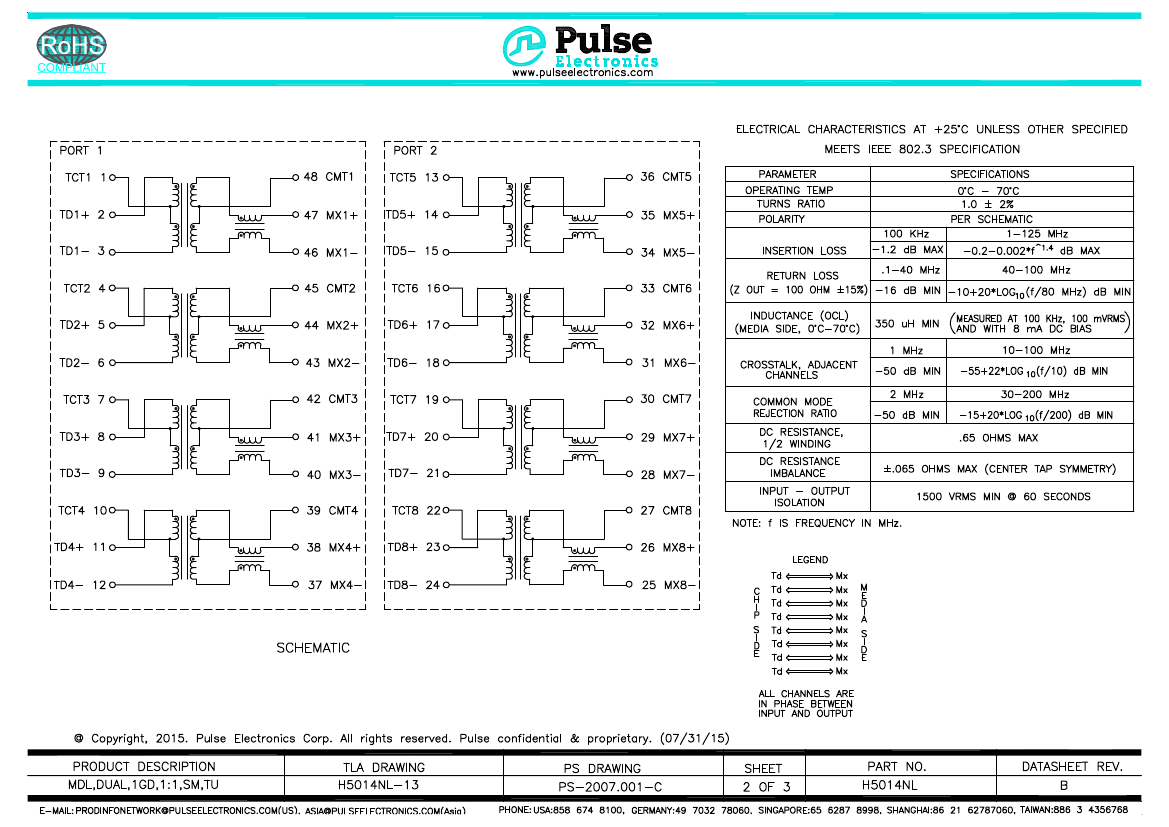

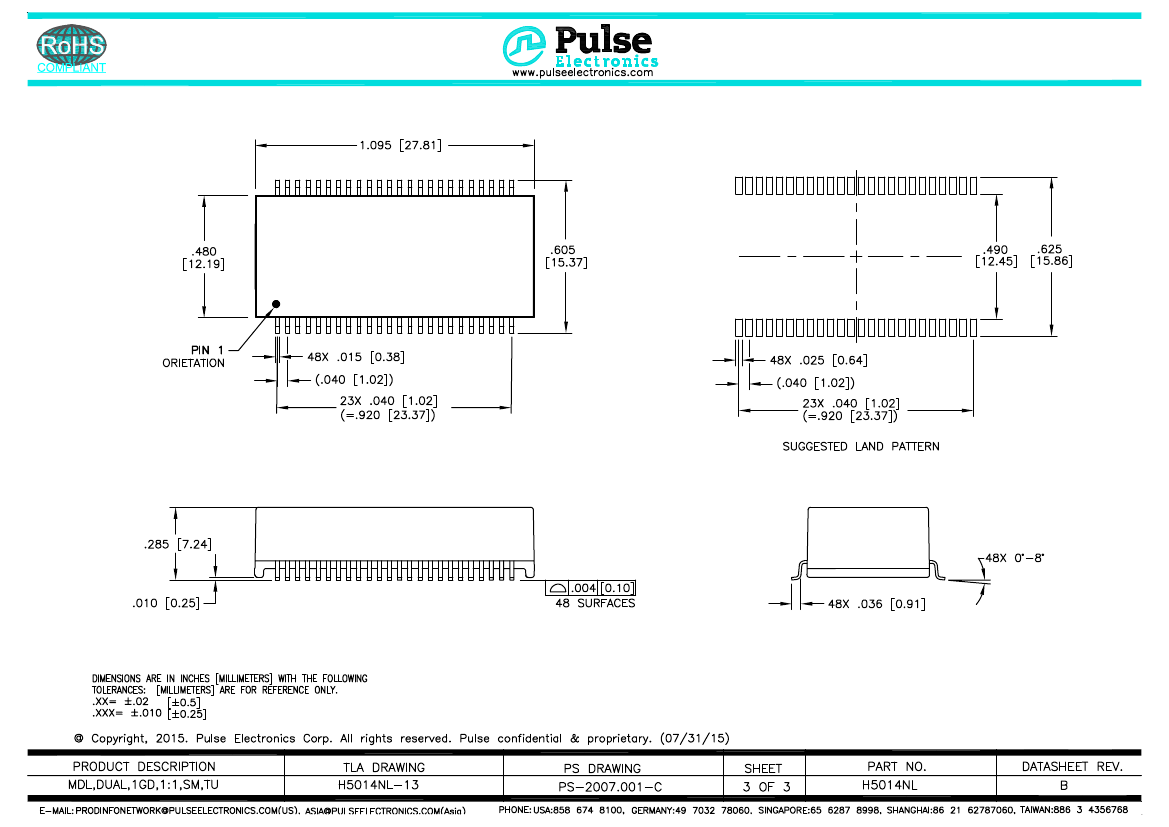

physical size	L27.81XB12.19XH6.99 (mm)
surface mount	YES
Terminal surface	Matte Tin (Sn)
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1
width	12.19 mm
Base Number Matches	1

	H5014NLT	H5014NL
Description	Datacom Transformer, 1000 BASE-T Application(s), 1:1, ROHS COMPLIANT	Datacom Transformer, 1000 BASE-T Application(s), 1:1, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Pulse Electronics	Pulse Electronics
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Factory Lead Time	8 weeks	8 weeks
Samacsys Description	Audio Transformers / Signal Transformers 1000BaseT SMD NonPoE 350uH .65Ohms 2-Port	Audio Transformers / Signal Transformers 1000BaseT SMD NonPoE 350uH .65Ohms 2-Port
Other features	MEETS IEE 802.3	MEETS IEE 802.3
application	1000 BASE-T	1000 BASE-T
high	6.99 mm	6.99 mm
Insulation voltage	1500 V	1500 V
JESD-609 code	e3	e3
length	27.81 mm	27.81 mm
Manufacturer's serial number	H5014NL	H5014NL
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	4	4
Maximum operating temperature	70 °C	70 °C
method of packing	TAPE & REEL	TUBE
physical size	L27.81XB12.19XH6.99 (mm)	L27.81XB12.19XH6.99 (mm)
surface mount	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1:1	1:1
width	12.19 mm	12.19 mm
Base Number Matches	1	1
