KLM300VS56M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 56uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size33KB，1 Pages; ManufacturerNIPPON CHEMI-CON; Websitehttp://www.chemi-con.co.jp

Download Datasheet Parametric Compare View All

KLM300VS56M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 56uF, Through Hole Mount, RADIAL LEADED

KLM300VS56M Parametric

Parameter Name	Attribute value
Maker	NIPPON CHEMI-CON
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	56 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.38884 mA
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	300 V
surface mount	NO
Delta tangent	0.2
Terminal shape	SNAP-IN
Base Number Matches	1

Preview

Download Datasheet

View All

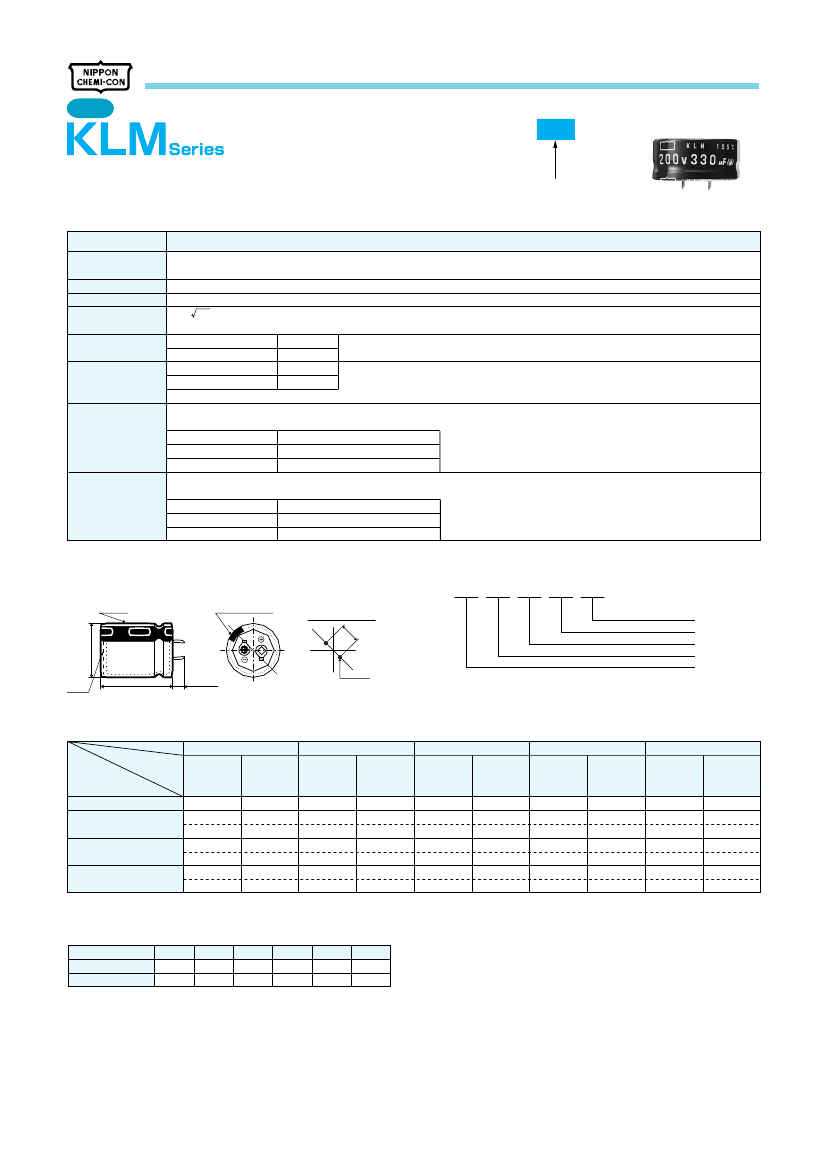

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS

New!

KLM

@15mm

height snap-ins

@Load

life with ripple current : 105C 2000 hours

@Non-solvent

proof type

15mm height snap-ins 105C

low profile

KMH

?SPECIFICATIONS

Items

Operating

Temperature Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current

Dissipation Factor

(tane)

Low Temperature

Characteristics

(Max. Impedance Ratio)

Load Life

-25 to +105C

160 to 400V

dc

P20%

(M)

I[3 CV

Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)

Rated Voltage (V

dc

)

160 to 400V

tanE (Max.)

0.20

Rated Voltage (V

dc

)

160 to 400V

Z (-25C) /Z (+20C)

4

Characteristics

(at 20C, 120Hz)

(at 20C after 5 minutes)

(at 20C, 120Hz)

Shelf Life

(at 120Hz)

The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the maximum

ripple current is applied for 2000 hours at 105C.

Capacitance chenge

[P20%

of the initial value

DF (tanE)

[200%

of the initial specified value

Leakage current

[The

initial specified value

The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours at 105C without

voltage applied.

Capacitance chenge

[P15%

of the initial value

DF (tanE)

[150%

of the initial specified value

Leakage current

[The

initial specified value

?DIMENSIONS

[mm]

@Terminal

type : VS (F22 to

F35)

Sleeve

FD+1max.

Negative mark

pc board pin-out

?PART

NUMBERING SYSTEM

KLM 200

VS

150

M

Cap tolerance (P20%)

Nominal cap in

MF

Terminal type (VS)

Rated voltage in volts

Series name

Vent

LP2

4.0P0.5

2-F2

10

?STANDARD

RATINGS

V

dc

Items

fDbL

(mm)

22b15

25.4b15

30b15

35b15

160

180

200

250

400

Capacitance Max. ripple Capacitance Max. ripple Capacitance Max. ripple Capacitance Max. ripple Capacitance Max. ripple

(Amrs/105c

(mF)

120Hz)

(mF)

120Hz)

(mF)

120Hz)

(mF)

120Hz)

(mF)

120Hz)

150

180

220

270

330

390

0.68

0.79

0.88

0.96

1.06

1.20

120

150

180

220

270

330

390

0.61

0.73

0.79

0.86

0.96

1.10

1.17

120

150

180

220

270

330

0.61

0.73

0.79

0.90

1.00

1.07

82

100

120

150

180

220

0.50

0.59

0.65

0.71

0.79

0.90

39

47

56

68

82

100

120

0.35

0.40

0.44

0.46

0.51

0.56

0.62

?RIPPLE

CURRENT MULTIPLIERS

@Frequency

Multipliers

Frequency (Hz)

160 to 250V

dc

400V

dc

50

0.81

0.77

120

1

300

1.17

1.16

1k

1.32

1.30

10k

1.45

1.41

50k

1.50

1.43

KLM300VS56M Related Products

	KLM300VS56M	KLM300VS39M	KLM300VS82M	KLM300VS120M	KLM300VS47M	KLM300VS68M	KLM300VS100M
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 56uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 39uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 120uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 68uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 300V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED
Maker	NIPPON CHEMI-CON	NIPPON CHEMI-CON	NIPPON CHEMI-CON	NIPPON CHEMI-CON	NIPPON CHEMI-CON	NIPPON CHEMI-CON	NIPPON CHEMI-CON
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	56 µF	39 µF	82 µF	120 µF	47 µF	68 µF	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	0.38884 mA	0.32449 mA	0.47053 mA	0.5692 mA	0.35623 mA	0.42848 mA	0.51961 mA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	300 V	300 V	300 V	300 V	300 V	300 V	300 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
Base Number Matches	1	1	1	1	1	1	1
