155100915010ST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 155100915010ST

155100915010ST: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size226KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

155100915010ST Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

155100915010ST Parametric

Parameter Name	Attribute value
Objectid	304365658
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.087 inch
subject depth	0.207 inch
body length	0.45 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	10000000000 Ω
insulator material	POLYETHYLENE
Manufacturer's serial number	1551
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.7018 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	9

Preview

Download Datasheet

View All

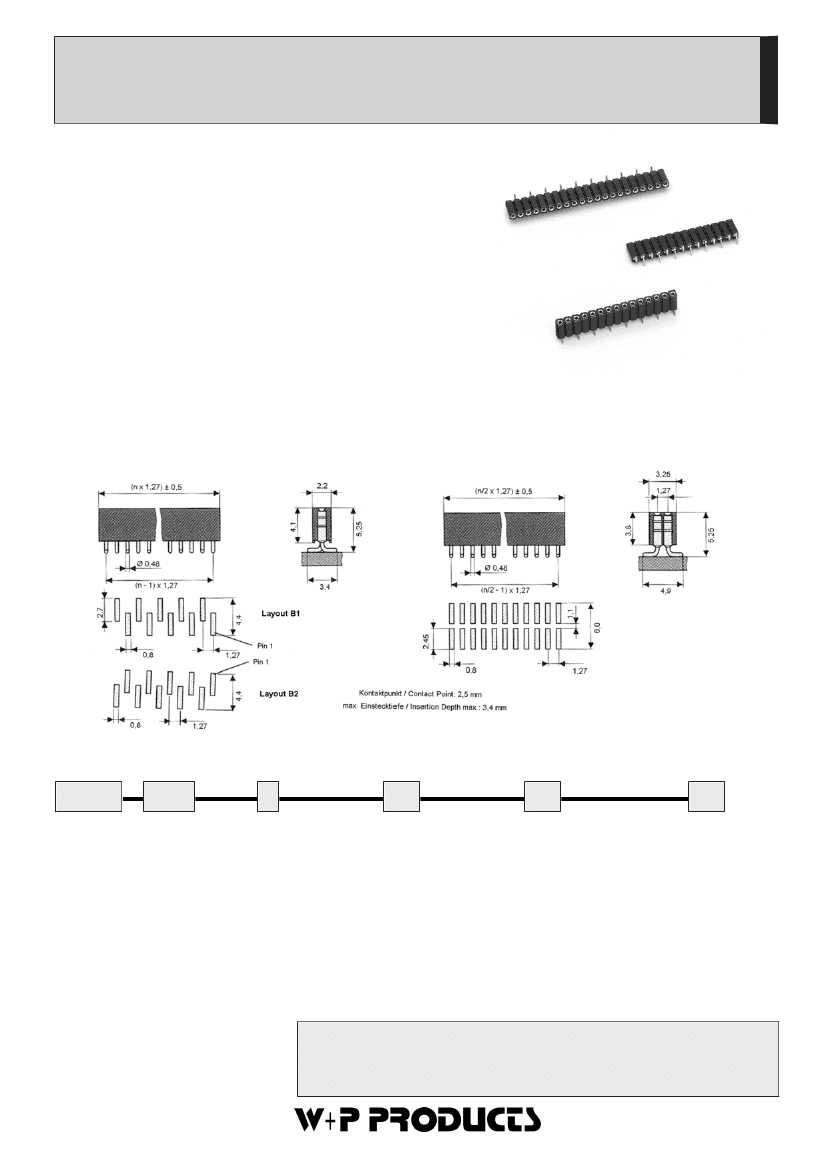

1551

SMT-Buchsenleisten RM 1,27mm - 1-/2-reihig - Präzisionskontakt

SMT Female Header Strips -Pitch 1,27mm - Single and Double Row - Screw Machined

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Hülse: Messing gedreht

Feder: 3-Lamellen-Clip, Beryllium-Kupfer

Contact Material

Sleeve: screw machined brass

Clip: 3 Finger-Clip, Beryllium-Copper

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 10mΩ

Contact Resistance

< 10mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

RMS

Test Voltage

1000V

RMS

Nennstrom

Current Rating

Temperaturbereich

-55°C ... +125°C

Temperature Range

-55°C ... +125°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Passende Stiftleisten Serie:

Mates with pin headers series:

7061

oder 0,40 ... 0,48mm Rundstifte /

round

pins

Series

Contacts

Rows

Sleeve Plating

Clip Plating

Packing

1551

020

003-050

Einreihig

Single row

004-100

Zweireihig

Double row

Einreihig B1

Single row B1

Einreihig B2

Single row B2

Zweireihig

Double row

Hülse verzinnt

Tin plated sleeve

Feder 0,25µm Gold

0,25µm gold plated clip

Feder 0,75µm Gold

0,75µm gold plated clip

PPST

(PPTR)

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= Schüttgut ohne PP-Pad /

Bulk good w/o PP-Pad

= In Stangen ohne PP-Pad /

In tubes w/o PP-Pad

PPST

= In Stangen mit PP-Pad /

In tubes with PP-Pad

(PPTR)

= Tape & Reel auf Anfrage /

Tape & Reel packing by request

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
