1814-000-104-001

Description
Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack
CategoryThe connector    The connector
File Size157KB,1 Pages
ManufacturerTekcon Electronics Corp
Download Datasheet Parametric View All

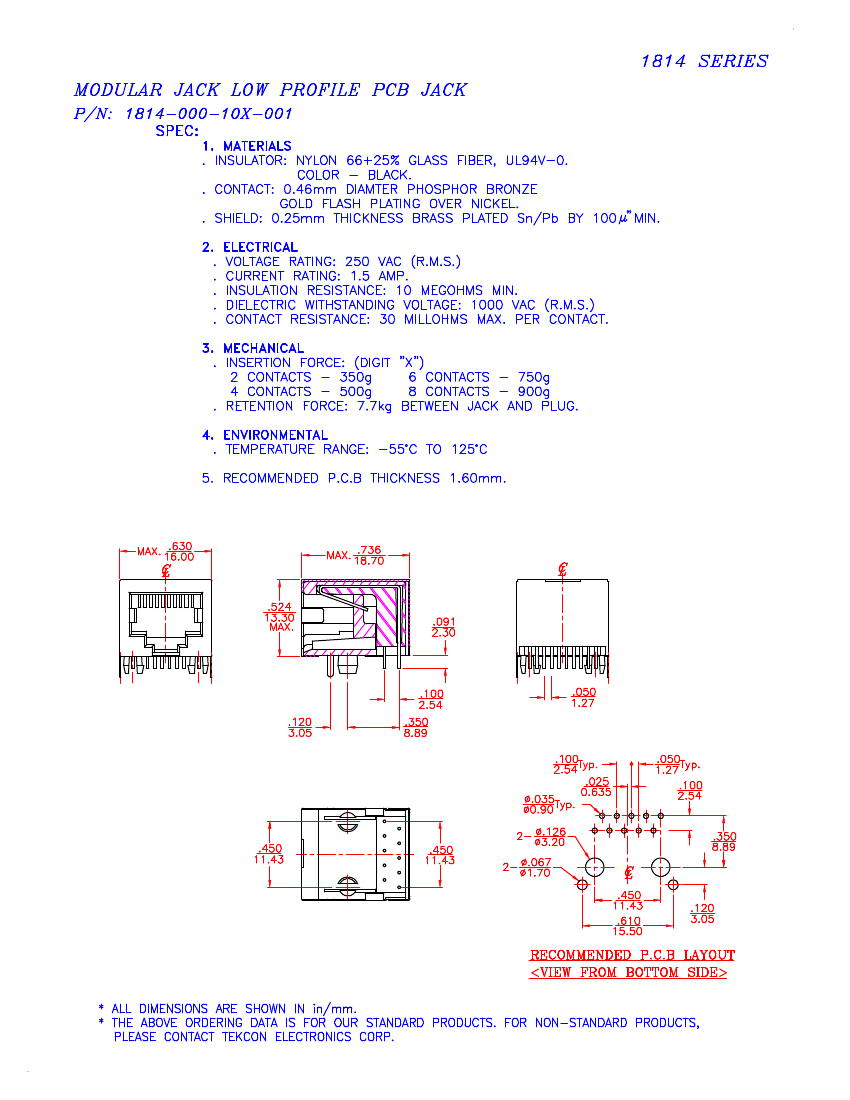

1814-000-104-001 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack

1814-000-104-001 Parametric

Parameter NameAttribute value
Objectid305399814
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsSPLIT BOARD LOCK
body width0.524 inch
subject depth0.736 inch
body length0.63 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance30 mΩ
Contact styleTELCOM, MODULAR
Dielectric withstand voltage1000VAC V
Insulation resistance10000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number1814
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
Plating thicknessFLASH inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN/LEAD
Shell materialBRASS
Terminal length0.091 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts4
