Part Number

Search

87986-4

Description
04 MODI BDMNT RCPT SR .156CL
CategoryThe connector    The connector
File Size102KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

87986-4 Online Shopping

Suppliers Part Number Price MOQ In stock
87986-4 - - View Buy Now

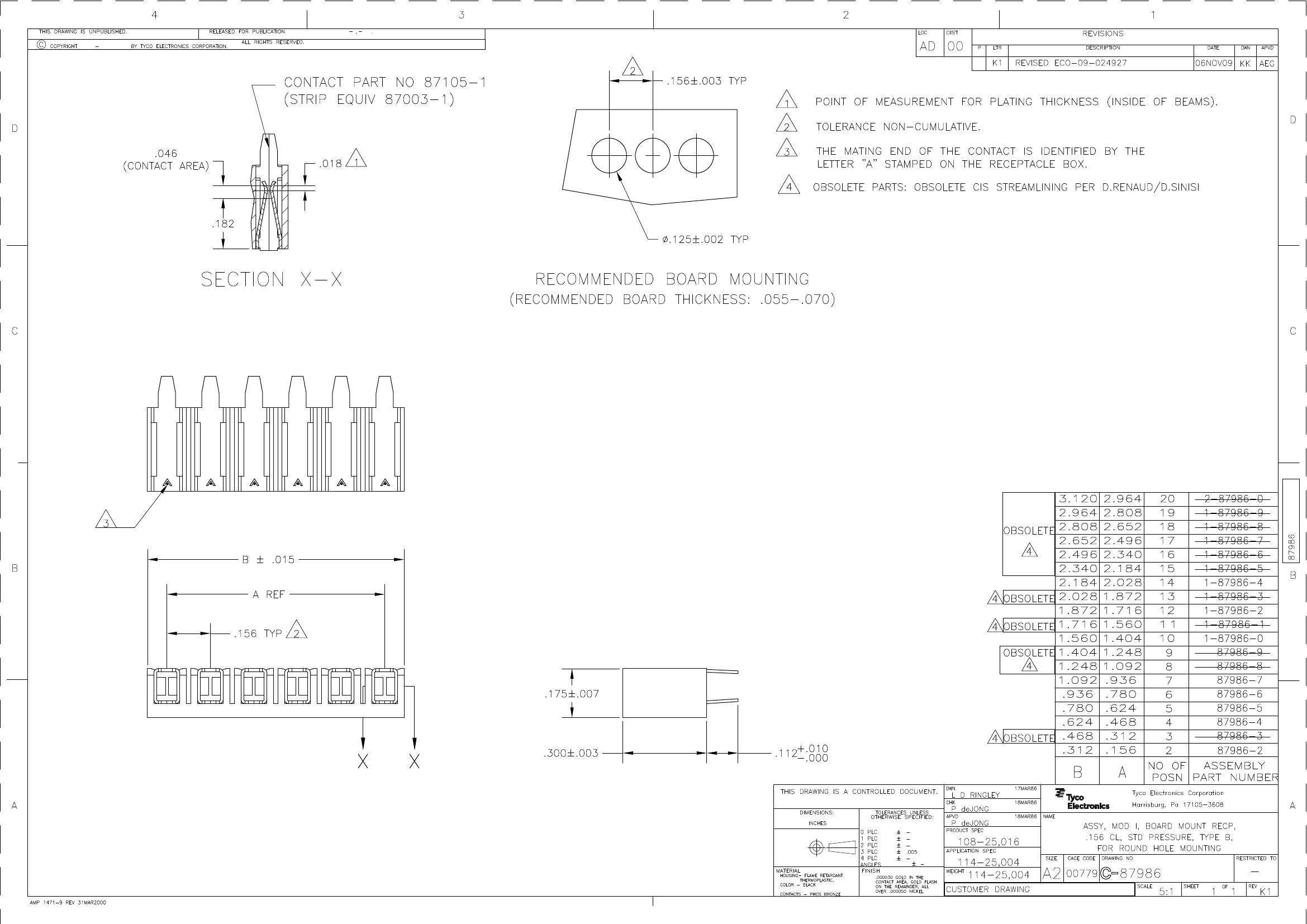

87986-4 Overview

04 MODI BDMNT RCPT SR .156CL

87986-4 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time15 weeks
Other featuresAMPMODU
body width0.175 inch
subject depth0.3 inch
body length0.624 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage1200VAC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force4.448 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
MIL complianceNO
Plug contact pitch0.156 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness30u inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.112 inch
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Evacuation force-minimum value.278 N
Base Number Matches1

87986-4 Related Products

87986-4 87986-5 87986-6
Description 04 MODI BDMNT RCPT SR .156CL 05 MODI BDMNT RCPT SR .156CL 06 MODI BDMNT RCPT SR .156CL
Brand Name AMP AMP AMP
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code not_compliant compli not_compliant
ECCN code EAR99 EAR99 EAR99
Factory Lead Time 15 weeks 15 weeks 23 weeks
Other features AMPMODU AMPMODU AMPMODU
body width 0.175 inch 0.175 inch 0.175 inch
subject depth 0.3 inch 0.3 inch 0.3 inch
body length 0.624 inch 0.78 inch 0.936 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD (30) OVER NICKEL NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE
Contact material NOT SPECIFIED PHOSPHOR BRONZE NOT SPECIFIED
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 12 mΩ 12 mΩ 12 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE
DIN compliance NO NO NO
Durability 200 Cycles 200 Cycles 200 Cycles
Filter function NO NO NO
IEC compliance NO NO NO
maximum insertion force 4.448 N 4.448 N 4.448 N
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK BLACK
insulator material THERMOPLASTIC THERMOPLASTIC POLYAMIDE66
MIL compliance NO NO NO
Plug contact pitch 0.156 inch 0.156 inch 0.156 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 1 1 1
Number of rows loaded 1 1 1
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -65 °C -65 °C -65 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
Plating thickness 30u inch 30u inch 30u inch
Rated current (signal) 5 A 5 A 5 A
Guideline UL, CSA UL, CSA CSA, LR, U
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.112 inch 0.112 inch 0.112 inch
Terminal pitch 3.96 mm 3.96 mm 3.96 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 4 5 6
UL Flammability Code 94V-0 94V-0 94V-2
Evacuation force-minimum value .278 N .278 N .278 N
Maker TE Connectivity TE Connectivity -
Dielectric withstand voltage 1200VAC V 1200VAC V -
Base Number Matches 1 1 -
Contact completed and terminated - Gold Flash (Au) - with Nickel (Ni) barrie GOLD FLASH OVER NICKEL
