3-215877-1: Description8/8 PCB MOD.JACK SE; CategoryThe connector The connector; File Size500KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-215877-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-215877-1	-	-	View	Buy Now

3-215877-1 Overview

8/8 PCB MOD.JACK SE

3-215877-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	7 weeks 5 days
Other features	1 PORT, 8-POSITION EACH
Board mount options	SPLIT BOARD LOCK
body width	0.453 inch
subject depth	0.713 inch
body length	0.598 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	GRAY
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	215877
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

4

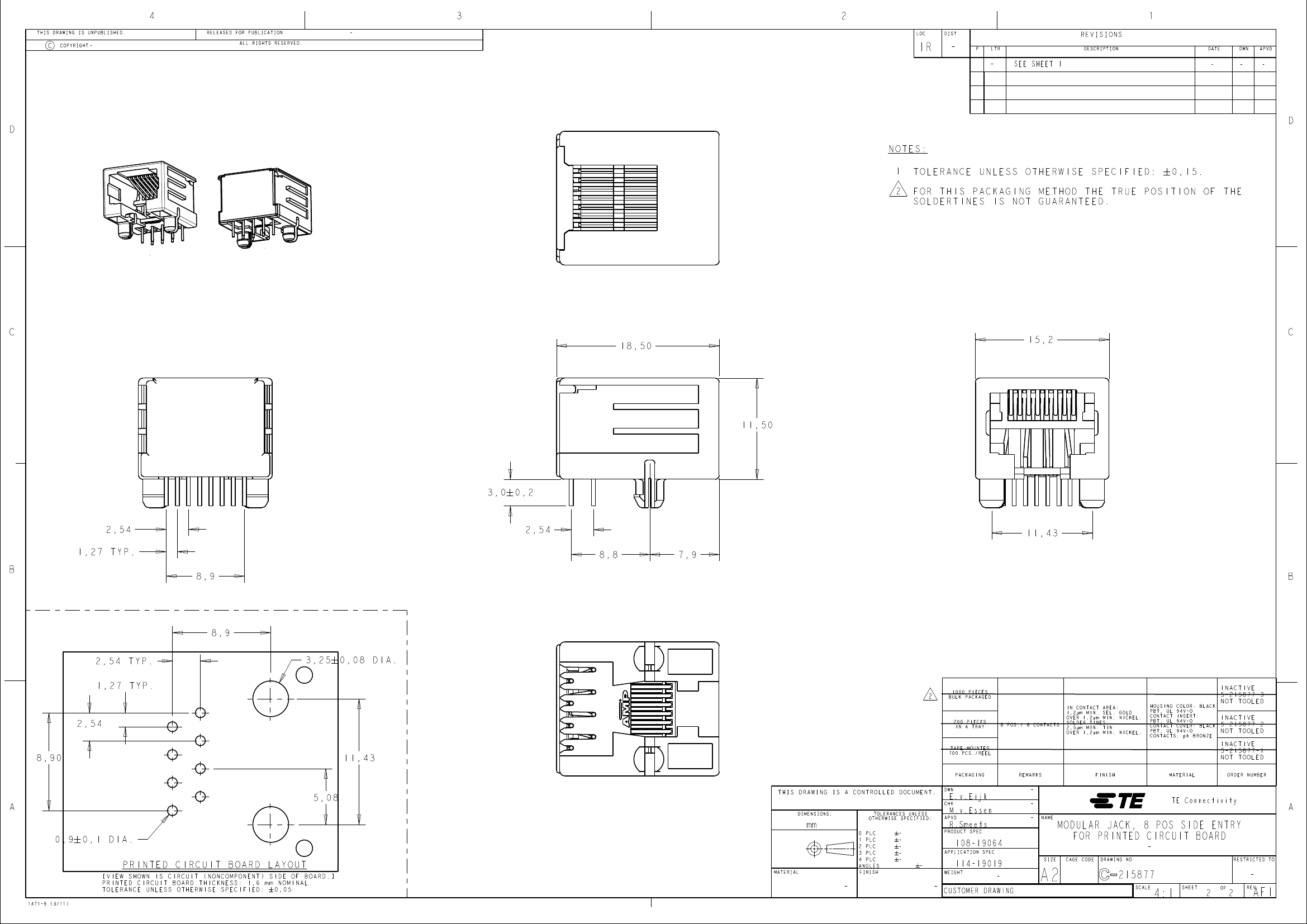

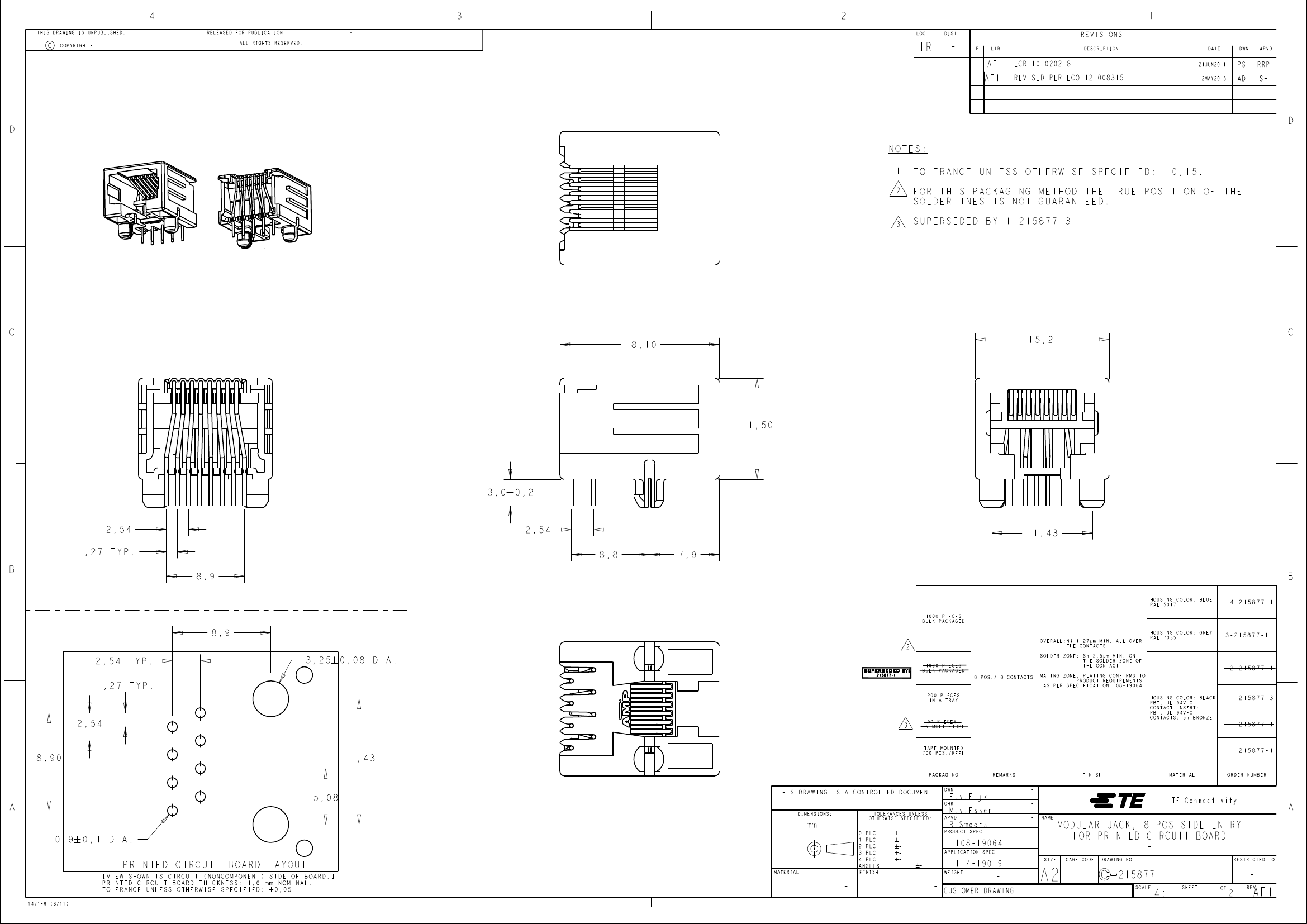

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

3

2

LOC

DIST

1

C

COPYRIGHT

-

IR

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

AF1

AF

ECR-10-020218

REVISED PER ECO-12-008315

21JUN2011

12MAY2015

PS

AD

RRP

SH

D

NOTES:

1

2

3

D

TOLERANCE UNLESS OTHERWISE SPECIFIED:

# 0,15.

FOR THIS PACKAGING METHOD THE TRUE POSITION OF THE

SOLDERTINES IS NOT GUARANTEED.

SUPERSEDED BY 1-215877-3

SCALE

2:1SCALE

2:1

C

18,10

15,2

C

11,50

3,0

0,2

2,54

1,27

TYP.

8,9

2,54

8,8

7,9

11,43

B

HOUSING COLOR: BLUE

RAL 5017

1000 PIECES

BULK PACKAGED

4-215877-1

8,9

2

OVERALL:Ni 1.27µm MIN. ALL OVER

THE CONTACTS

SOLDER ZONE: Sn 2.5µm MIN. ON

THE SOLDER ZONE OF

THE CONTACT

8 POS./ 8 CONTACTS

MATING ZONE: PLATING CONFIRMS TO

PRODUCT REQUIREMENTS

AS PER SPECIFICATION 108-19064

HOUSING COLOR: GREY

RAL 7035

3-215877-1

2,54

1,27

TYP.

3,25

0,08

DIA.

215877-1

1000 PIECES

BULK PACKAGED

2-215877-1

200 PIECES

IN A TRAY

2,54

8,90

11,43

3

90 PIECES

IN MULTI-TUBE

HOUSING COLOR: BLACK

PBT, UL 94V-O

CONTACT INSERT:

PBT, UL 94V-O

CONTACTS: ph BRONZE

1-215877-3

1-215877-1

TAPE MOUNTED

700 PCS./REEL

215877-1

PACKAGING

REMARKS

FINISH

MATERIAL

ORDER NUMBER

A

0,9

0,1

DIA.

PRINTED CIRCUIT BOARD LAYOUT

SCALE

5:1

5,08

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

E.v.Eijk

M.v.Essen

-

NAME

TE Connectivity

mm

APVD

A

[VIEW SHOWN IS CIRCUIT (NONCOMPONENT) SIDE OF BOARD.]

PRINTED CIRCUIT BOARD THICKNESS: 1,6 mm NOMINAL.

TOLERANCE UNLESS OTHERWISE SPECIFIED: # 0,05

1471-9 (3/11)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

R.Smeets

APPLICATION SPEC

108-19064

114-19019

-

WEIGHT

-

CUSTOMER DRAWING

A2

SIZE

MODULAR JACK, 8 POS SIDE ENTRY

FOR PRINTED CIRCUIT BOARD

-

CAGE CODE

DRAWING NO

RESTRICTED TO

215877

SCALE

4:1

SHEET

1

OF

2

REV

-

AF1
