CH100-02B-RA-G datasheet, PDF - EEWORLD Datasheet

CH100-02B-RA-G: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Polarized Lck, White Insulator, Receptacle; CategoryThe connector The connector; File Size144KB，2 Pages; ManufacturerKeltron Connector Company

Download Datasheet Parametric View All

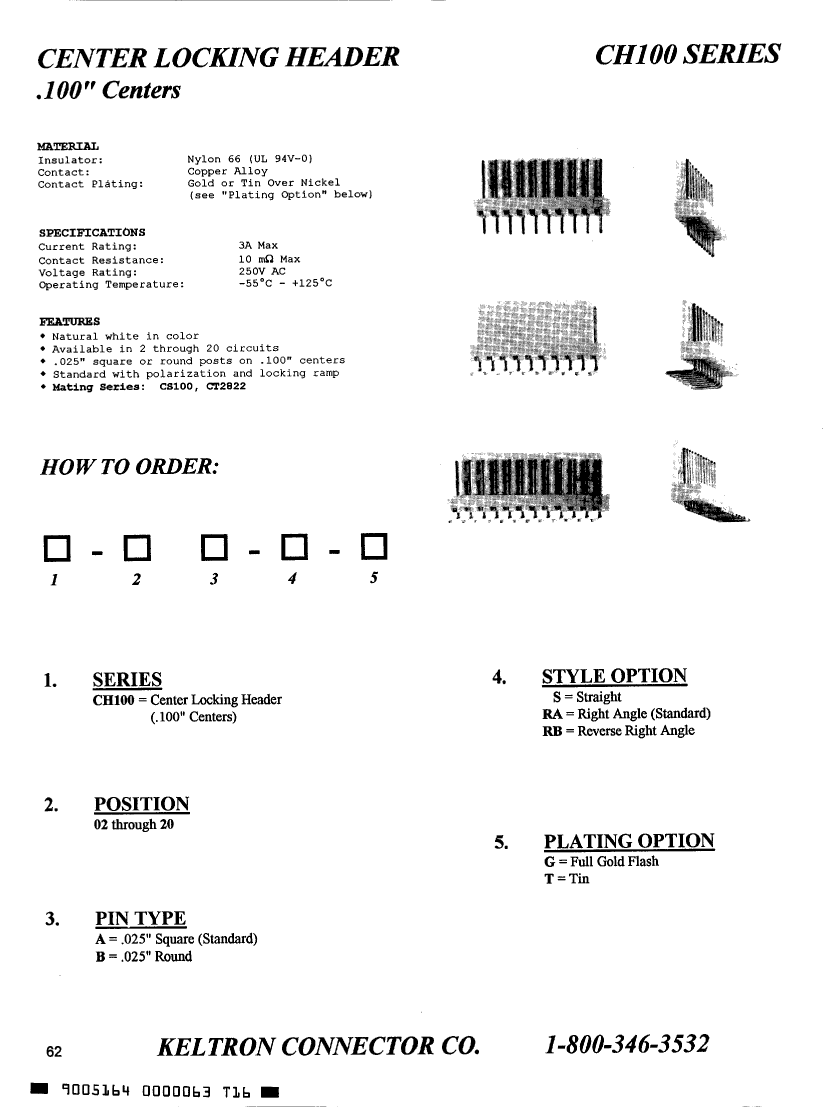

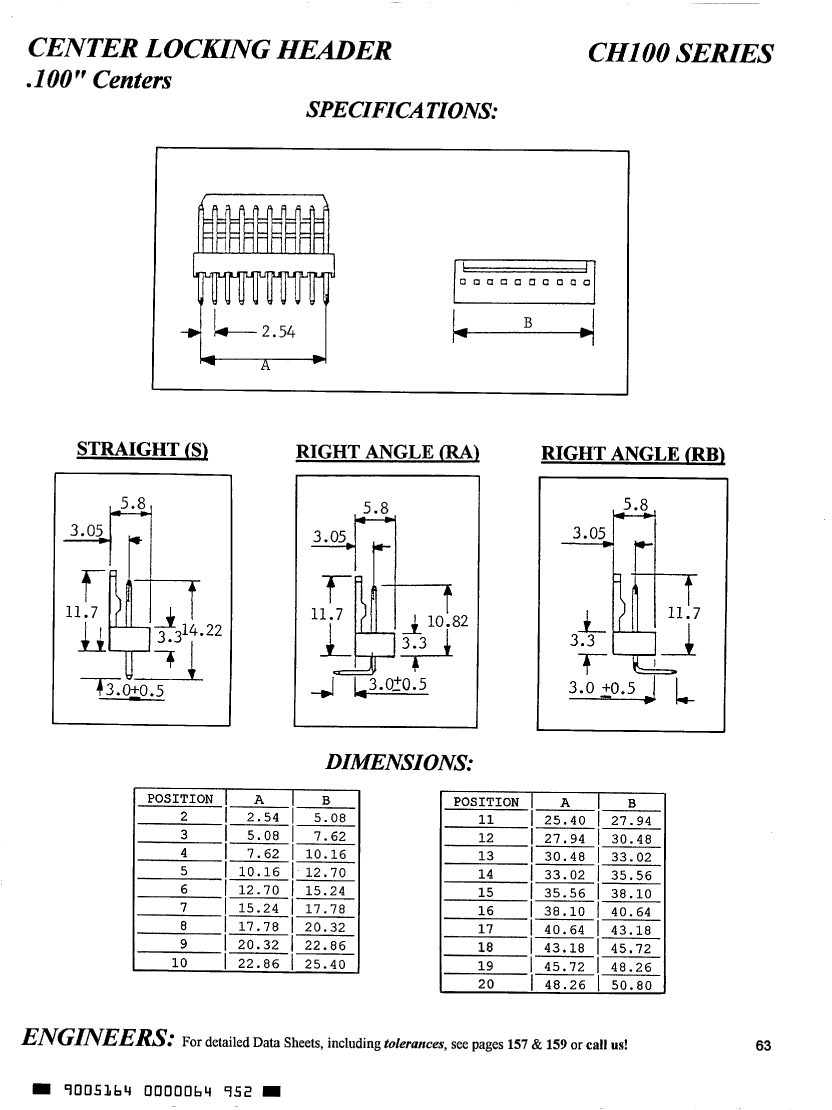

CH100-02B-RA-G Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Polarized Lck, White Insulator, Receptacle

Parameter Name	Attribute value
Objectid	1166287758
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.228 inch
body length	0.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	250VAC V
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	CH100
Plug contact pitch	0.1 inch
Installation option 1	POLARIZED LCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	HOUSING SIDE
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
