Part Number

Search

216566-2

Description
8/8 PCB MOD.JACK TE
CategoryThe connector    The connector
File Size117KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

216566-2 Online Shopping

Suppliers Part Number Price MOQ In stock
216566-2 - - View Buy Now

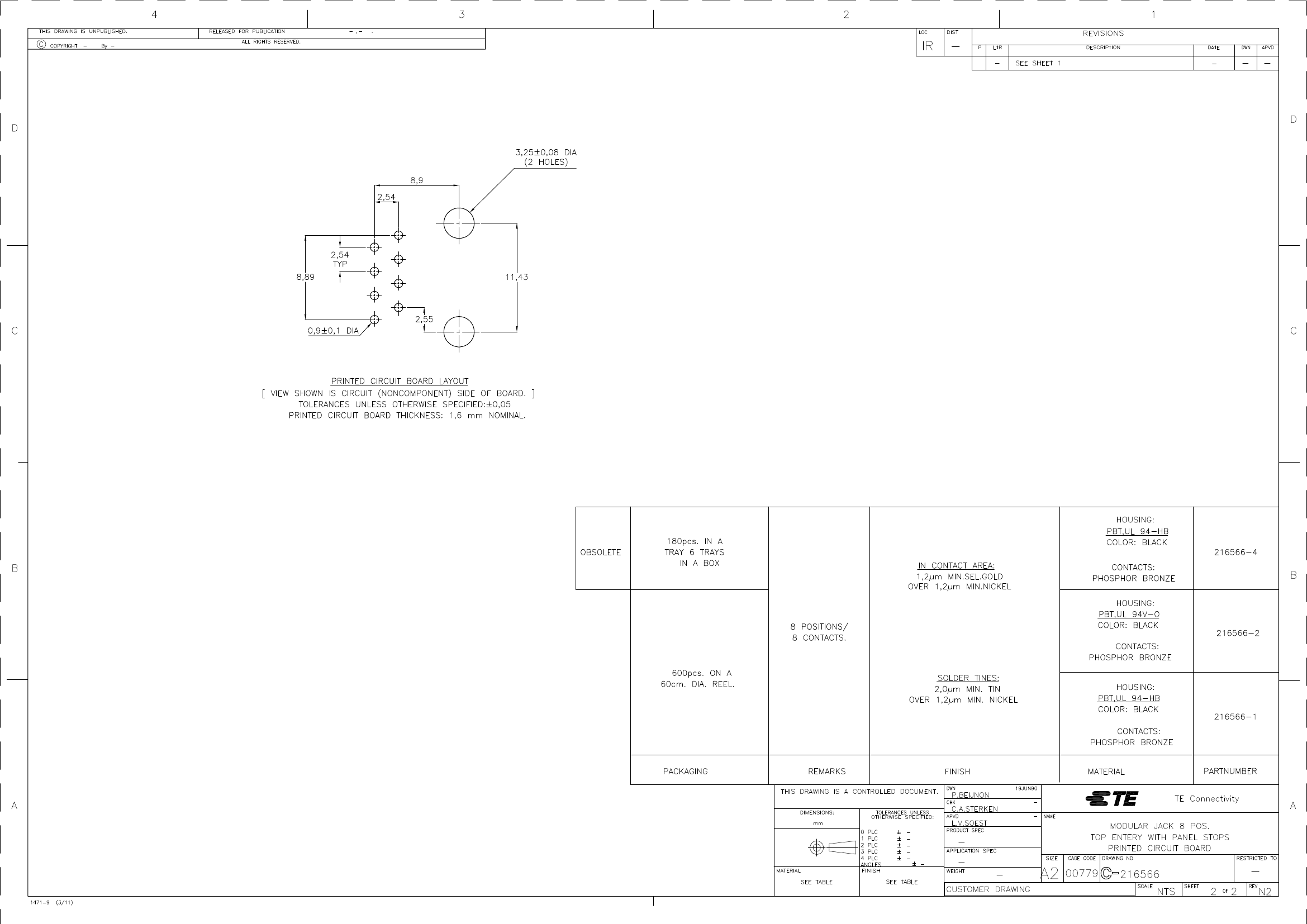

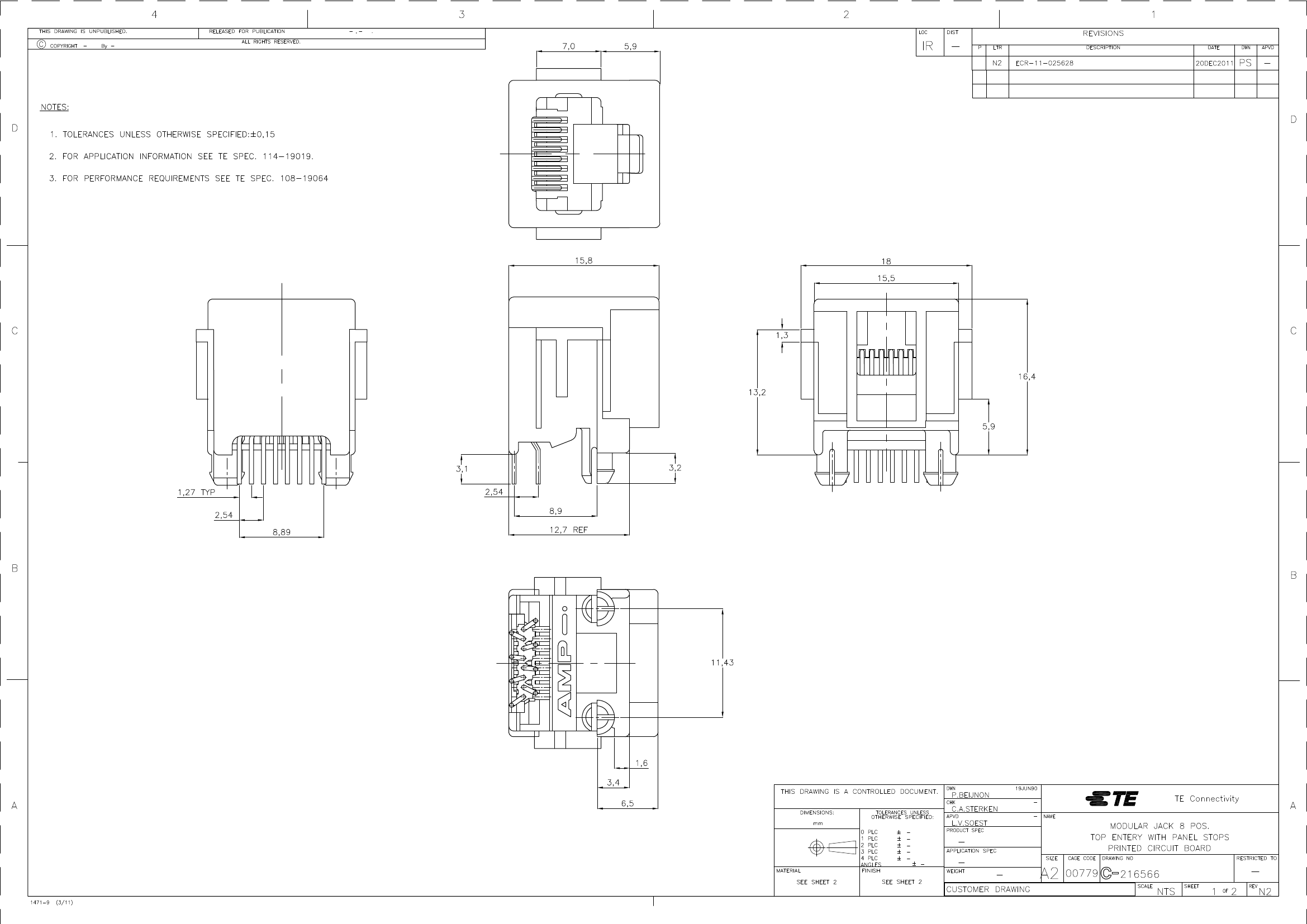

216566-2 Overview

8/8 PCB MOD.JACK TE

216566-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
Factory Lead Time13 weeks 5 days
Other featuresSTAGGERED CONFIGURATION
Board mount optionsSPLIT BOARD LOCK
body width0.622 inch
subject depth0.646 inch
body length0.709 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact styleTELCOM, MODULAR
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability750 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
Plating thickness47u inch
Rated current (signal)1.5 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialPOLYBUTYLENE TEREPHTHALATE
Terminal length0.122 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

216566-2 Related Products

216566-2 216566-3 216566-1
Description 8/8 PCB MOD.JACK TE CONNECTOR, 8 CONTACT(S), FEMALE, STRAIGHT TELECOM AND DATACOM CONNECTOR, SOLDER, JACK 8/8 PCB MOD.JACK TE
Reach Compliance Code unknown unknow compliant
Other features STAGGERED CONFIGURATION LATCHED STAGGERED CONFIGURATION
Body/casing type JACK JACK JACK
Connector type TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD (50) NOT SPECIFIED
Contact point gender FEMALE FEMALE FEMALE
DIN compliance NO NO NO
empty shell NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Mixed contacts NO NO NO
Installation method RIGHT ANGLE STRAIGHT RIGHT ANGLE
Installation type BOARD BOARD AND PANEL BOARD
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell material POLYBUTYLENE TEREPHTHALATE PBT-POLYESTER POLYBUTYLENE TEREPHTHALATE
Termination type SOLDER SOLDER SOLDER
Total number of contacts 8 8 8
UL Flammability Code 94V-0 94-HB 94-HB
Base Number Matches 1 1 1
Brand Name AMP - AMP
Is it lead-free? Lead free - Lead free
Is it Rohs certified? conform to - conform to
ECCN code EAR99 - EAR99
Factory Lead Time 13 weeks 5 days - 13 weeks 5 days
Board mount options SPLIT BOARD LOCK - SPLIT BOARD LOCK
body width 0.622 inch - 0.622 inch
subject depth 0.646 inch - 0.646 inch
body length 0.709 inch - 0.709 inch
Contact material PHOSPHOR BRONZE - PHOSPHOR BRONZE
Contact style TELCOM, MODULAR - TELCOM, MODULAR
Dielectric withstand voltage 1000VAC V - 1000VAC V
Durability 750 Cycles - 750 Cycles
Insulator color BLACK - BLACK
insulator material POLYBUTYLENE TEREPHTHALATE - POLYBUTYLENE TEREPHTHALATE
Installation option 1 LOCKING - LOCKING
Number of ports 1 - 1
Maximum operating temperature 85 °C - 85 °C
Minimum operating temperature -40 °C - -40 °C
PCB contact pattern STAGGERED - STAGGERED
Plating thickness 47u inch - 47u inch
Rated current (signal) 1.5 A - 1.5 A
Guideline CSA, UL - CSA, UL
reliability COMMERCIAL - COMMERCIAL
Terminal length 0.122 inch - 0.122 inch
Terminal pitch 1.27 mm - 1.27 mm
