AR312RAG2N2JLN

Description
General Purpose Inductor, 0.0022uH, 5%, 1 Element, Ceramic-Core, SMD, CHIP, 0704
CategoryPassive components    inductor
File Size135KB,3 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Download Datasheet Parametric View All

AR312RAG2N2JLN Overview

General Purpose Inductor, 0.0022uH, 5%, 1 Element, Ceramic-Core, SMD, CHIP, 0704

AR312RAG2N2JLN Parametric

Parameter NameAttribute value
Objectid8233198611
Reach Compliance Codecompliant
ECCN codeEAR99
core materialCERAMIC
DC Resistance0.205 Ω
Nominal inductance(L)0.0022 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Minimum quality factor (at nominal inductance)10
Maximum rated current0.25 A
self resonant frequency5000 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency250 MHz
Tolerance5%

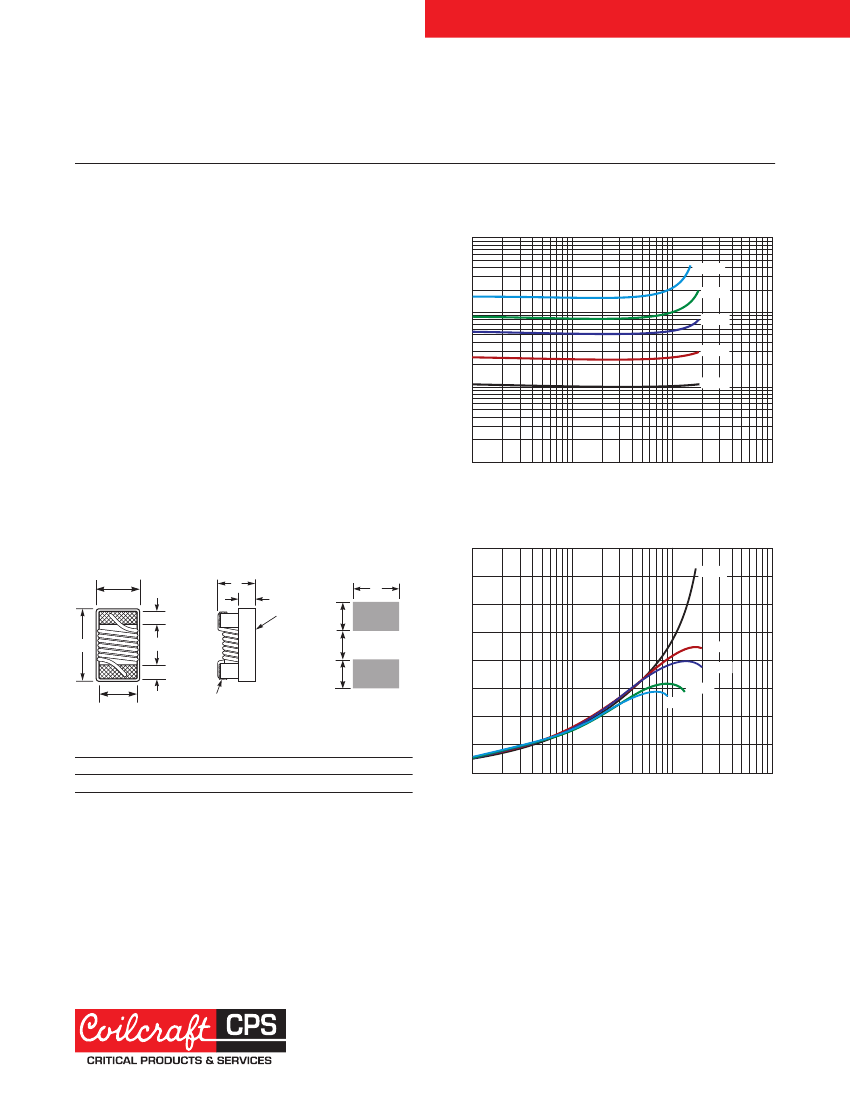

AR312RAG2N2JLN Preview

0603 CHIP INDUCTORS
Outgassing Compliant Chip Inductors
AR312RAG
Higher Q and lower DCR than other 0603 inductors
Highest SRF values – as high as 16 GHz
High temperature materials allow operation in ambient
temperatures up to 155°C.
Passes NASA low outgassing specifications
Standard tin-lead (Sn-Pb) terminations over leach-resistant
base metalization ensure the best possible board adhesion
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit. Other
terminations are also available.
Weight
2.0 – 4.0 mg
Ambient temperature
–65°C to +125°C with
Imax
current
Maximum part temperature
+155°C (ambient + temp rise)
Storage temperature
Component: –65°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel.
Paper tape: 8 mm wide, 1 mm thick, 4 mm pocket spacing
B
overall
F
A
G
F
E
terminal
Terminal wraparound:
approx 0.01/0,24 both ends
C
D
Pick and
place
surface
I
H
120
100
24 nH
80
60
40
20
0
10
100
1000
10000
51 nH
82 nH
150 nH
Typical L vs Frequency
1000
150 nH
82 nH
Inductance (nH)
100
51 nH
24 nH
10 nH
10
1
10
100
1000
10000
Frequency (MHz)
Typical Q vs Frequency
160
140
10 nH
J
I
Suggested
Land Pattern
H
I
J
A
max
1,75
B
min
max
0,86 – 1,09
C
max
0,86
D
E
F
G
0.069 0.034 – 0.043 0.034 0.015 0.029 0.013 0.038 0.040 0.027 0.028 inches
0,38 0,74 0,33
0,96 1,02 0,69 0,71 mm
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
Q Factor
Frequency (MHz)
®
Document AR537-1 Revised 12/13/16
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2016
0603 CHIP INDUCTORS
AR312RAG Series (0603)
Part number
1
AR312RAG1N8JSZ
AR312RAG2N2JSZ
6
AR312RAG3N3_SZ
AR312RAG3N6_SZ
AR312RAG3N9_SZ
AR312RAG4N3_SZ
AR312RAG4N7_SZ
AR312RAG5N1_SZ
AR312RAG5N6_SZ
AR312RAG6N0_SZ
AR312RAG6N8_SZ
AR312RAG7N2_SZ
AR312RAG7N5_SZ
AR312RAG8N2_SZ
AR312RAG8N7_SZ
AR312RAG9N1_SZ
AR312RAG9N5_SZ
AR312RAG10N_SZ
AR312RAG11N_SZ
AR312RAG12N_SZ
AR312RAG15N_SZ
AR312RAG16N_SZ
AR312RAG18N_SZ
AR312RAG22N_SZ
AR312RAG23N_SZ
AR312RAG24N_SZ
AR312RAG27N_SZ
AR312RAG30N_SZ
AR312RAG33N_SZ
AR312RAG36N_SZ
6
L test
Inductance
2
Percent
freq
(nH)
tolerance (MHz)
1.8
2.2
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.8
7.2
7.5
8.2
8.7
9.1
9.5
10
11
12
15
16
18
22
23
24
27
30
33
36
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
5,2
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Q min
3
at
250 MHz
17
10
35
32
33
28
22
38
43
40
34
36
32
37
33
38
40
38
36
32
36
32
34
30
36
43
34
40
38
36
900 MHz
L typ
Q typ
3
1.77
2.14
3.28
3.59
3.88
4.29
4.65
5.08
5.6
5.92
6.83
7.25
7.55
8.21
8.73
9.18
9.56
10.16
11.06
12.26
15.41
16.37
18.56
22.7
24.0
24.9
28.4
31.5
34.9
38.5
40
25
67
70
68
58
48
84
87
94
88
96
81
96
97
76
98
90
78
69
83
77
76
77
69
77
74
82
76
69
1.7 GHz
L typ
Q typ
3
1.77
2.12
3.32
3.62
3.95
4.31
4.71
5.12
5.73
6.12
7.05
7.38
7.85
8.39
9.00
9.64
9.99
10.64
11.82
13.20
17.20
18.70
20.90
25.90
29.53
28.9
34.0
37.9
42.9
50.0
65
35
104
116
108
91
75
140
145
154
143
139
112
148
149
109
149
142
108
91
124
116
100
88
80
91
84
82
80
64
SRF
min
4
(GHz)
>5.00
>5.00
>5.00
>5.00
>5.00
>5.00
>5.00
>5.00
>5.00
4.80
4.64
4.32
4.24
4.72
4.40
4.08
3.92
3.44
3.28
3.28
2.88
2.80
2.64
2.52
2.40
2.36
2.24
2.24
2.16
2.00
DCR
max
5
(Ohms)
0.035
0.205
0.030
0.033
0.045
0.080
0.100
0.042
0.042
0.053
0.050
0.080
0.100
0.054
0.054
0.054
0.053
0.054
0.075
0.110
0.085
0.095
0.075
0.140
0.195
0.085
0.150
0.130
0.170
0.225
Imax
(mA)
800
250
800
800
800
710
720
800
800
800
800
800
800
800
800
800
800
800
800
750
800
790
800
600
560
800
620
720
560
480
