241A20540X

Description
D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size149KB，2 Pages
ManufacturerCONEC
Websitehttp://www.conec.com
Download Datasheet Parametric View All

241A20540X Online Shopping

Suppliers Part Number Price MOQ In stock
241A20540X - - View Buy Now

241A20540X Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

241A20540X Parametric

Parameter NameAttribute value
Objectid1290914005
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSHORT METAL BRACKET
body width0.509 inch
subject depth0.48 inch
body length2.103 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance10 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage424VDC V
Filter functionYES
maximum insertion force3.336 N
Insulation resistance100000000 Ω
insulator materialGLASS FILLED POLYESTER
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1#4-40
Installation option 2THREADED
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Rated current (signal)2.5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size3/B
Terminal length0.13 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25
Evacuation force-minimum value2.224 N

Preview

Download Datasheet

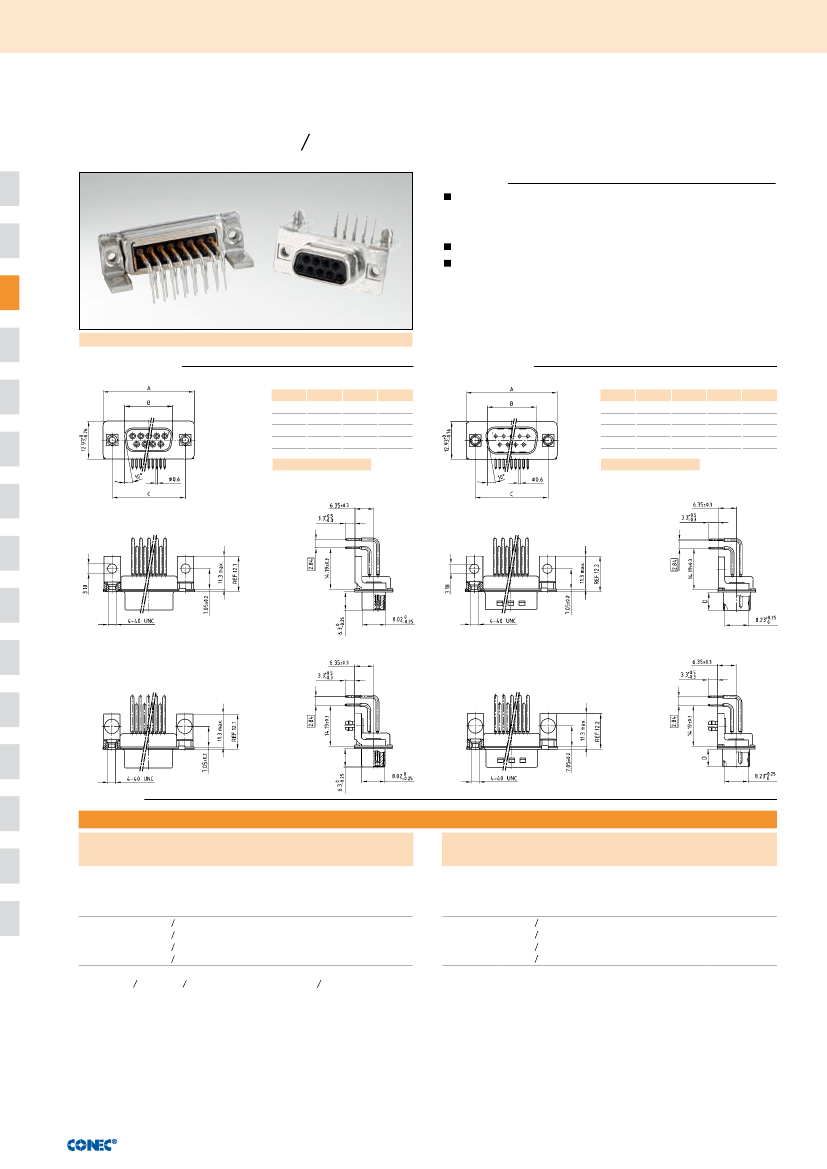

Filt e r D- S UB Co n nec to rs
C-Filter D-SUB Standard
Solder pin – Angled – .590“ 14.19 mm – Precision machined contacts – Short metal bracket
Description
Mounting styles:
- Mounting bracket, 4-40 UNC threaded insert
- Mounting bracket, PCB clip and 4-40 UNC threaded insert
Quality class 3 (also available in quality class 1)
Shell: Steel tin plated (brass tin plated on request)
RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784
Socket connector
No. of pos.
09
15
25
37
Plug connector
A
-0.76
31.19
39.52
53.42
69.70
B
-0.25
16.46
24.79
38.50
54.96
C
25.00
33.30
47.04
63.50
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
No. of pos.
09
15
25
37
A
-0.76
31.19
39.52
53.42
69.70
B
+0.25
16.79
25.12
38.84
55.30
C
25.00
33.30
47.04
63.50
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
D
-0.3
6.12
6.12
5.99
5.99
PCB layout: Kat1kGXA
PCB layout: Kat1kGYA
Mounting style: Threaded insert
Mounting style: Threaded insert
Mounting style:
PCB clip, threaded insert
Mounting style:
PCB clip, threaded insert
Order data
Capacitance 180 pF
Socket connector
No. of pos. Mounting style 4-40 UNC
09
15
25
37
09
15
25
37
Threaded insert
Threaded insert
Threaded insert
Threaded insert
PCB clip Threaded insert
PCB clip Threaded insert
PCB clip Threaded insert
PCB clip Threaded insert
Plug connector
Part Number
242 A 20290
242 A 20300
242 A 20310
242 A 20320
242 A 20450
242 A 20460
242 A 20470
242 A 20480
X
X
X
X
X
X
X
X
No. of pos. Mounting style 4-40 UNC
09
15
25
37
09
15
25
37
Threaded insert
Threaded insert
Threaded insert
Threaded insert
PCB clip Threaded insert
PCB clip Threaded insert
PCB clip Threaded insert
PCB clip Threaded insert
Part Number
241 A 20440
241 A 20450
241 A 20460
241 A 20470
241 A 20600
241 A 20610
241 A 20620
241 A 20630
X
X
X
X
X
X
X
X
PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
