5253F-37TB/BR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5253F-37TB/BR

Preview

5253F-37TB/BR: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size235KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

5253F-37TB/BR Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking, Receptacle

5253F-37TB/BR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.496 inch
subject depth	0.531 inch
body length	2.728 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Filter function	YES
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5253
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Terminal length	0.177 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
Base Number Matches	1

Preview

Download Datasheet

View All

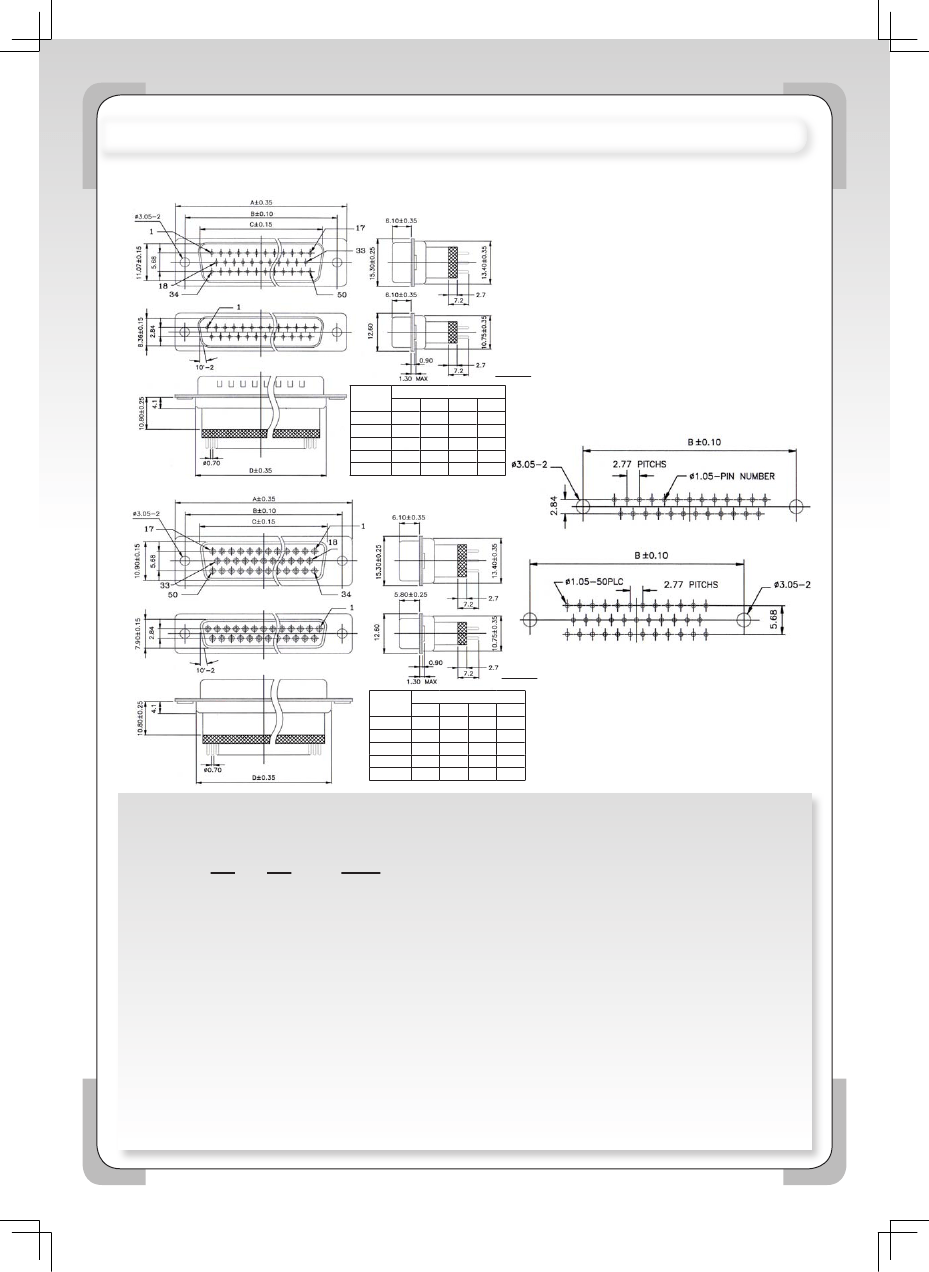

D-SUB. CONNECTOR HIGH PROFILE STRAIGHT PCB MOUNT TYPE WITH

MACHINED PINS & FERRITE

SPECIFICATIONS

Current Rating:

5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

5253F

No. of

Contacts

09

15

25

37

50

Dimensions(mm)

A

B

C

D

30.80 24.99 16.92 19.20

39.15 33.32 25.25 27.62

53.00 47.04 38.96 41.18

69.30 63.50 55.42 57.34

67.00 61.00 52.80 55.16

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Recommended P.C.Board Layout

5254F

No. of

Contacts

09

15

25

37

50

Dimensions(mm)

A

B

C

D

30.80 24.99 16.30 19.20

39.15 33.32 24.65 27.62

53.00 47.04 38.40 41.18

69.30 63.50 54.80 57.34

67.00 61.00 52.20 55.16

ORDERING INFORMATION:

P/N 5 2 x x F - x x T B / x x x

1

2

3

1. CONNECTOR TYPE:

"53" MALE

"54" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37

3. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

"BR" BOARD LOCK

"BRJ" BOARD LOCK & SCREW

C0039

5253F-37TB/BR Related Products

	5253F-37TB/BR	5253F-37TB/BRJ	5253F-37TB
Description	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant
body width	0.496 inch	0.496 inch	0.496 inch
subject depth	0.531 inch	0.531 inch	0.531 inch
body length	2.728 inch	2.728 inch	2.728 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Filter function	YES	YES	YES
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5253	5253	5253
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Terminal length	0.177 inch	0.177 inch	0.177 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	37	37	37
Base Number Matches	1	1	1
