DIS-208-R900-95 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DIS-208-R900-95

DIS-208-R900-95: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

DIS-208-R900-95 Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

DIS-208-R900-95 Parametric

Parameter Name	Attribute value
Objectid	304756479
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.33 inch
body length	0.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	4.3 mΩ
Contact style	RND PIN-SKT
Durability	100 Cycles
Insulation resistance	5000000000 Ω
Manufacturer's serial number	DIS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

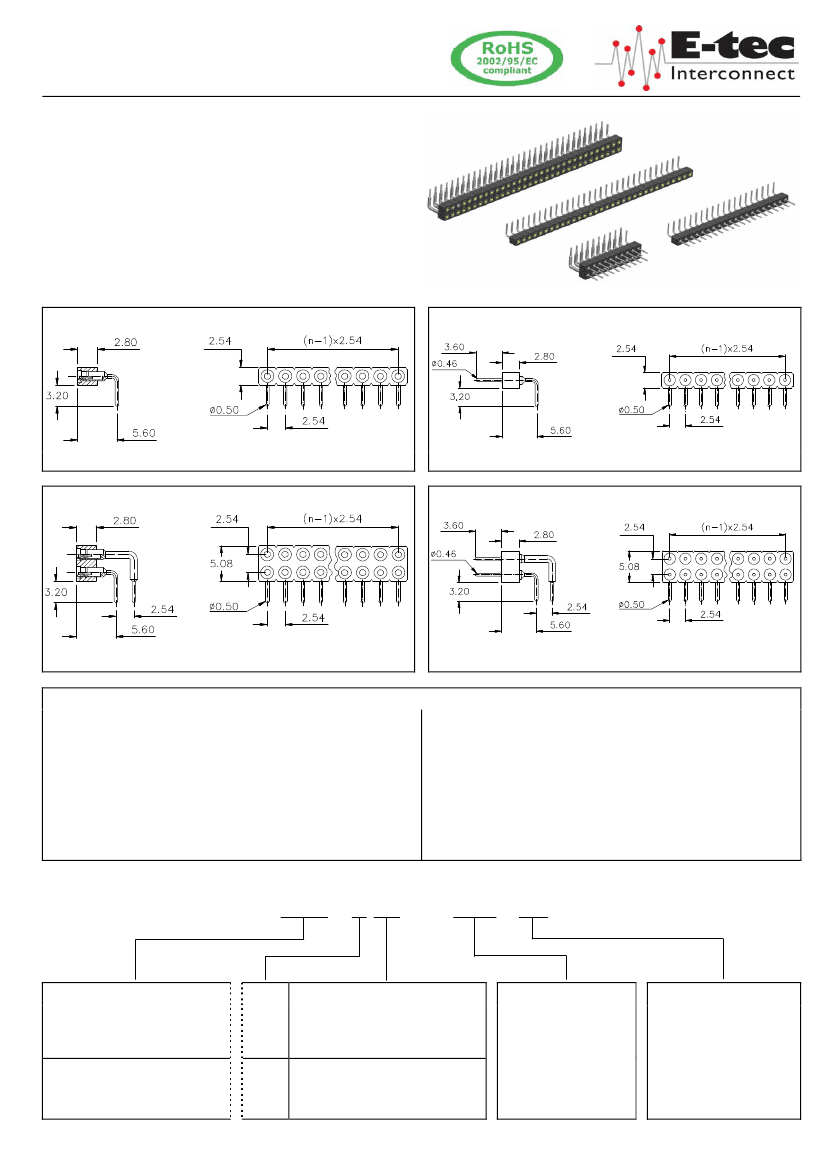

SIB/DIS - Series

2,54mm pitch

90° Socket Strips

Male Headers

The 2,54mm pitch 90° socket strips and male headers are

designed for „board to board“ connections, and can also be

used in combination with the straight version SIB/DIS strips

shown earlier in this catalogue.

The socket strips accept round pins with a

diameter of 0,41 to 0,56mm max.,

as well as square pins of 0,40 x 0,40mm max.

The socket strips and male headers are stackable and

available in any pinout as shown in the below order code.

The head of the female terminal is completely embedded

in the insulator.

single row - socket strips -

single row

- male header -

SIB - xxx - R900 -

dual row

- socket strips -

SIB - xxx - R921 - xx

dual row

- male header -

DIS - xxx - R900 -

Specifications

Mechanical data

Insertion force contact type 900

Extraction force contact type 900

Contact life

Operating temperature

Processing temperature

Material

Insulator

(RoHS compliant)

Terminal

(RoHS compliant)

Contact

(RoHS compliant)

1,80 N (avg)

0,90 N (avg)



100 cycles

-55° C to +125° C

+250°C

+0/-5°C

for 20~40sec.

high temp plastic UL 94 V-0

CuZn

BeCu

DIS - xxx - R921 - xx

Electrical data

Insulation resistance

Breakdown voltage

Contact resistance

Current rating

Insertion depth contact type 900

maximum

minimum

5 x 10



min.

500 V AC for 1 minute

4,3 m typ.

1 A max., 100V

3,68mm / .145“

2,80mm / .110“

XXX - x xx - R xxx - xx

How to order

Series

SIB

= single-in-line strips

Row

…

Nbr of contacts

20, 32, 40

Std. breakable sizes

Contact Type

Plating

Contact type „900”

900

921

female

male

tin/gold

(tin leadfree)

Contact type „921”

DIS

= dual-in-line strips...

...

tin

(tin leadfree)

gold
