C0805C225Z4VAC7013 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> C0805C225Z4VAC7013

C0805C225Z4VAC7013: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22ppm/Cel TC, 2.2uF, 0805,; CategoryPassive components capacitor; File Size664KB，8 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C0805C225Z4VAC7013 Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22ppm/Cel TC, 2.2uF, 0805,

C0805C225Z4VAC7013 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	924276722
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.68
capacitance	2.2 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.25 mm
JESD-609 code	e3
length	2 mm
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package form	SMT
method of packing	TR, Paper, 7 Inch
positive tolerance	80%
Rated (DC) voltage (URdc)	16 V
series	C0805C (Y5V,16V)
size code	0805
Temperature characteristic code	Y5V
Temperature Coefficient	22/-82% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm

Preview

Download Datasheet

View All

CERAMIC CHIP CAPACITORS

FEATURES

• C0G (NP0), X7R, X5R, Z5U and Y5V Dielectrics

• 10, 16, 25, 50, 100 and 200 Volts

• Standard End Metalization: Tin-plate over nickel

barrier

• Available Capacitance Tolerances: ±0.10 pF; ±0.25

pF; ±0.5 pF; ±1%; ±2%; ±5%; ±10%; ±20%; and

+80%-20%

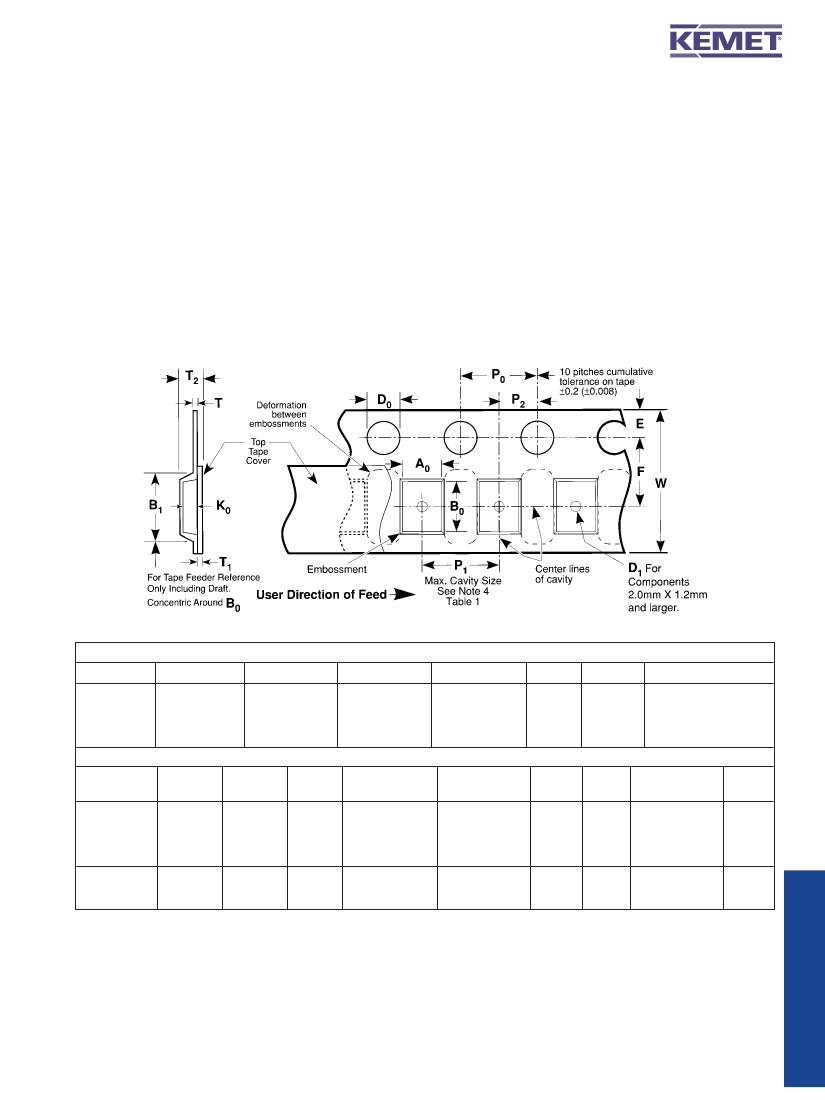

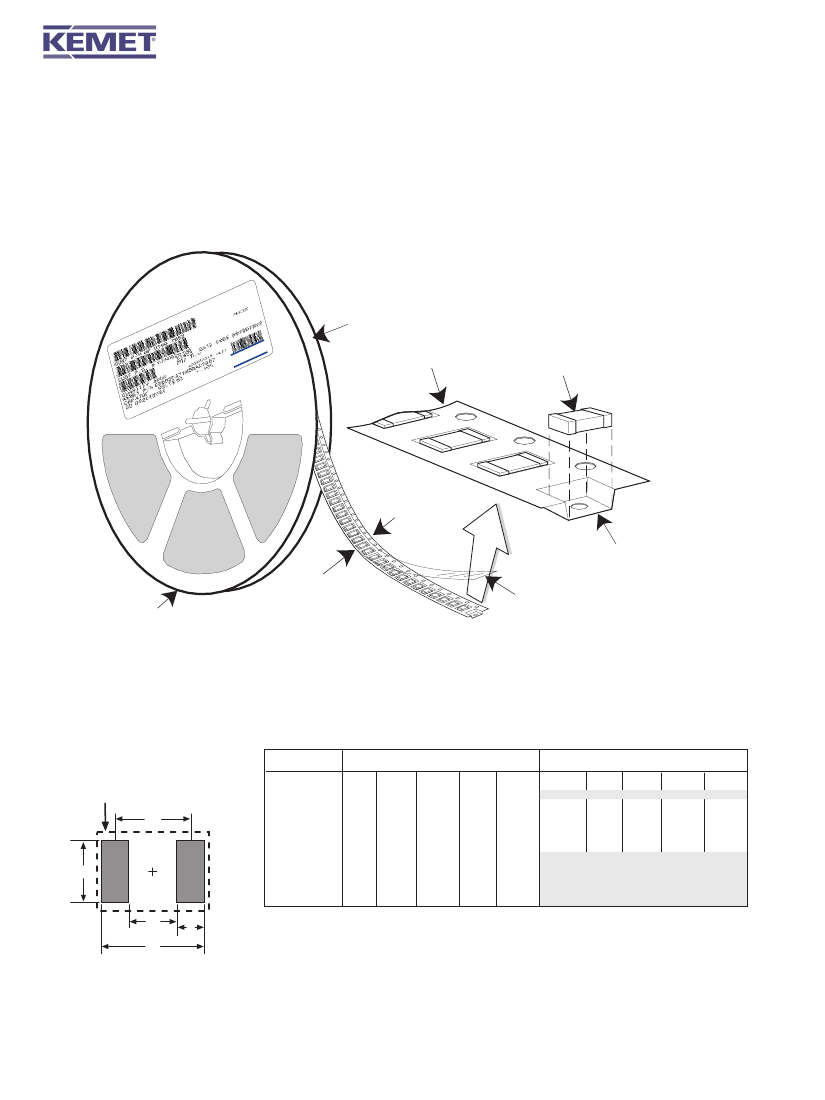

• Tape and reel packaging per EIA481-1. (See page

92 for specific tape and reel information.) Bulk

Cassette packaging (0402, 0603, 0805 only) per

IEC60286-6 and EIAJ 7201.

• RoHS Compliant

CAPACITOR OUTLINE DRAWINGS

ELECTRODES

TIN PLATE

NICKEL PLATE

CONDUCTIVE

METALLIZATION

DIMENSIONS—MILLIMETERS AND (INCHES)

SIZE CODE

EIA SIZE

METRIC

SIZE CODE

(Ref only)

CODE

0402*

1005

EIA

METRIC

L - LENGTH

0.6 (.024) ± .03 (.001)

1.0 (.04) ± .05 (.002)

1.6 (.063) ± .15 (.006)

2.0 (.079) ± .20 (.008)

3.2 (.126) ± .20 (.008)

4.5 (.177) ± .30 (.012)

5.6 (.220) ± .40 (.016)

W - WIDTH

0.3 ± (.012) ± .03 (.001)

0.5 (.02) ± .05 (.002)

0.8 (.032) ± .15 (.006)

1.25 (.049) ± .20 (.008)

1.6 (.063) ± .20 (.008)

2.5 (.098) ± .20 (.008)

3.2 (.126) ± .30 (.012)

6.4 (.252) ± .40 (.016)

5.0 (.197) ± .40 (.016)

6.3 (.248) ± .40 (.016)

THICKNESS

B - BANDWIDTH

0.15 (.006) ± .05 (.002)

0.20 (.008) -.40 (.016)

0.35 (.014) ± .15 (.006)

0.50 (.02) ± .25 (.010)

0.60 (.024) ± .35 (.014)

SEPARATION

minimum

N/A

0.3 (.012)

0.7 (.028)

0.75 (.030)

N/A

MOUNTING

TECHNIQUE

Solder Reflow

0201*

0603*

0402*

0805*

0603

0805*

1206*

1210*

1812

1206*

1210*

1812

0603

1608

1005

2012

1608

2012

3216

3225

3216

3225

4532

4564

1825*

4532

See page 77

for thickness

dimensions.

Solder Wave +

Solder Reflow

Solder

Reflow

2220

1825*

2225

2220

5650

4564

5664

5650

Solder Reflow

* Note: Indicates EIA Preferred Case Sizes (Tightened tolerances apply for 0402, 0603, and 0805 packaged in bulk bassette, see page 96.)

+ For extended value 1210 case size - solder reflow only.

CAPACITOR ORDERING INFORMATION

(Standard Chips - For

C 0805 C 103 K 5 R A C*

CERAMIC

SIZE CODE

SPECIFICATION

C - Standard

CAPACITANCE CODE

Expressed in Picofarads (pF)

First two digits represent significant figures.

Third digit specifies number of zeros. (Use 9

for 1.0 through 9.9pF. Use 8 for 0.5 through 0.99pF)

(Example: 2.2pF = 229 or 0.50 pF = 508)

CAPACITANCE TOLERANCE

B – ±0.10pF J – ±5%

C – ±0.25pF K – ±10%

D – ±0.5pF

M – ±20%

F – ±1%

P – (GMV) – special order only

G – ±2%

Z – +80%, -20%

Military see page 90)

END METALLIZATION

C-Standard (Tin-plated nickel barrier)

FAILURE RATE LEVEL

A- Not Applicable

TEMPERATURE CHARACTERISTIC

Designated by Capacitance

Change Over Temperature Range

G – C0G (NP0) (±30 PPM/°C)

R – X7R (±15%) (-55°C + 125°C)

P– X5R (±15%) (-55°C + 85°C)

U – Z5U (+22%, -56%) (+10°C + 85°C)

V – Y5V (+22%, -82%) (-30°C + 85°C)

VOLTAGE

1 - 100V

3 - 25V

2 - 200V

4 - 16V

5 - 50V

8 - 10V

* Part Number Example: C0805C103K5RAC (14 digits - no spaces)

7 - 4V

9 - 6.3V

Ceramic Surface Mount

2225

5664
