5569252-1 datasheet, PDF - EEWORLD Datasheet

5569252-1: DescriptionSTK MJ ASSY,8POS,2X4,CAT5; CategoryThe connector The connector; File Size152KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5569252-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5569252-1	-	-	View	Buy Now

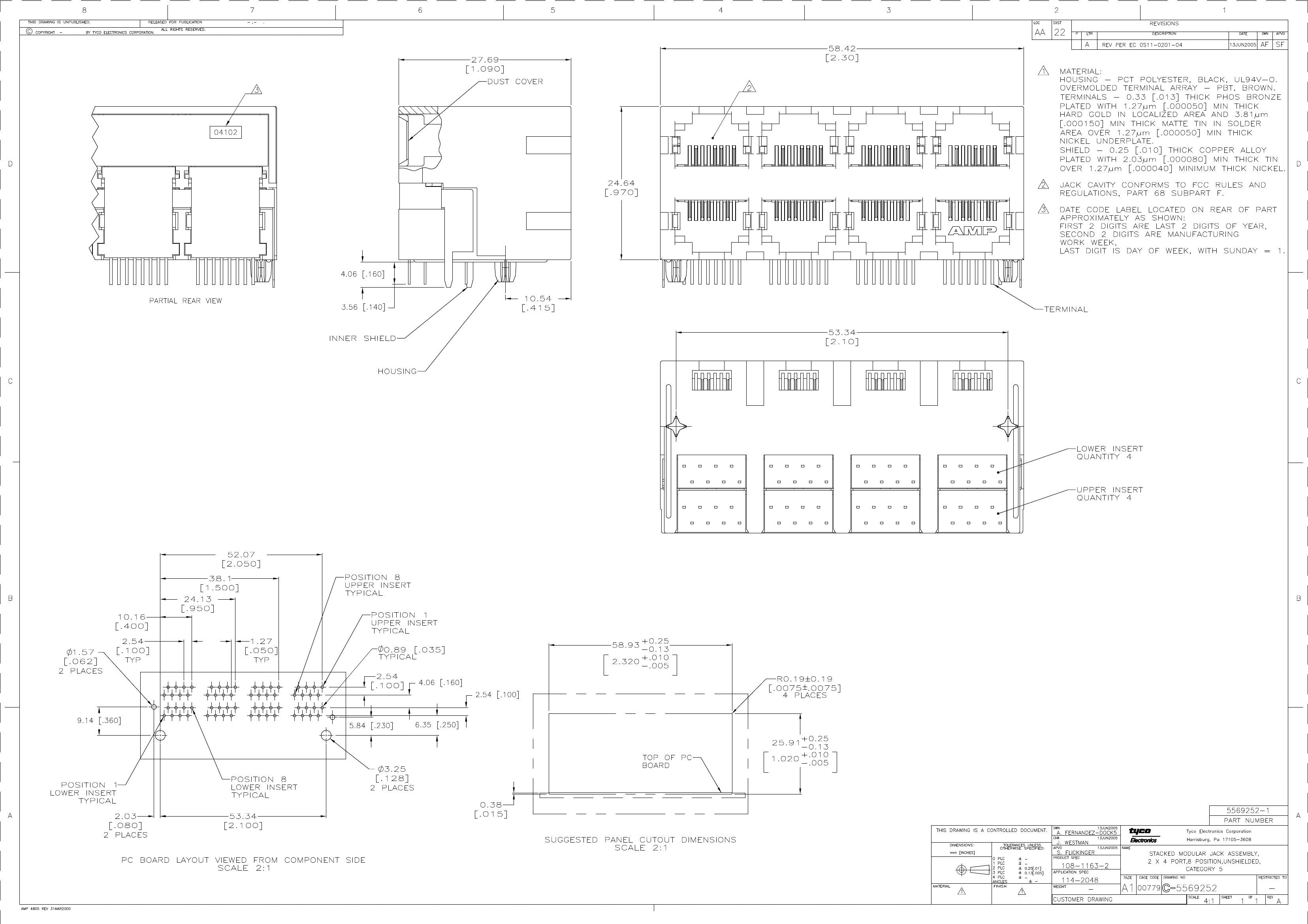

STK MJ ASSY,8POS,2X4,CAT5

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	74 weeks
Other features	OTHER STACKING CONNECTOR: 32 CONTACTS, 4 PORTS, 8 POSITIONS EACH, LOW PROFILE, SHIELDED
Board mount options	PEG
body width	0.97 inch
subject depth	1.09 inch
body length	2.3 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	30 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED PCT
MIL compliance	NO
Manufacturer's serial number	5569252
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	COPPER ALLOY
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1
