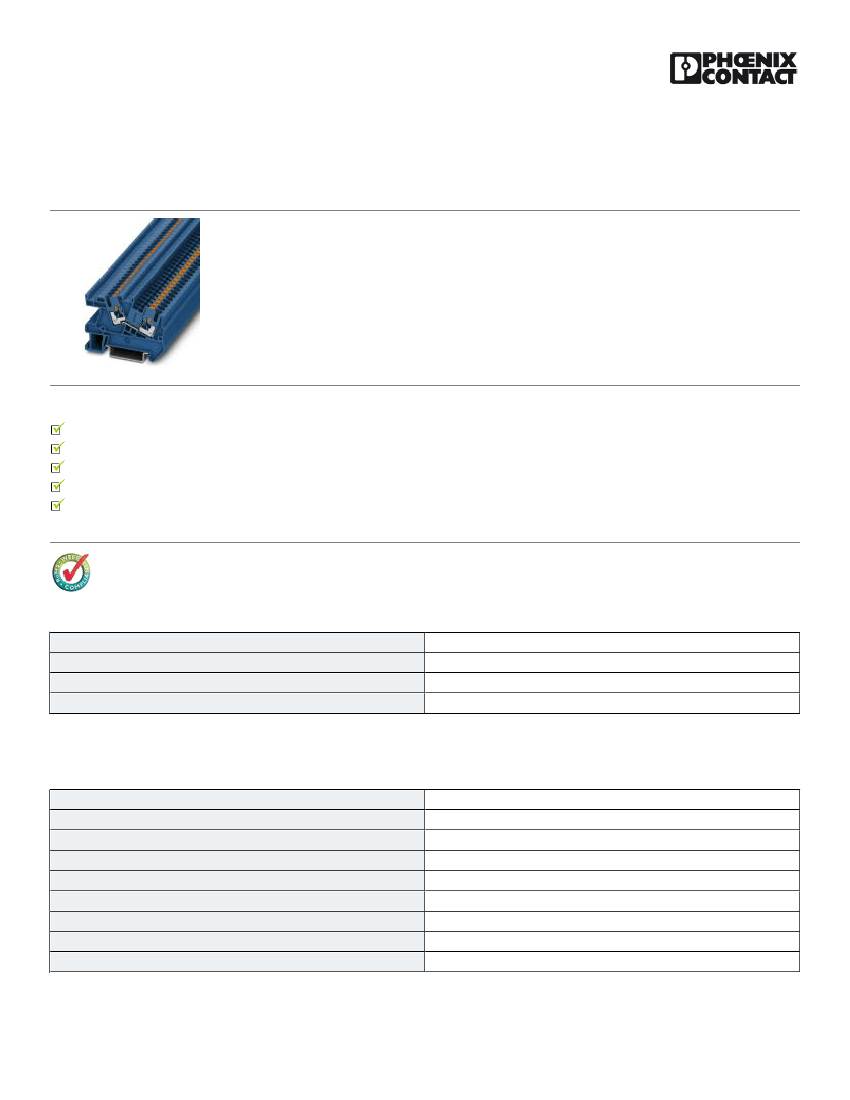

Installation terminal block - PTI 2,5 BU - 3213969
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Installation terminal block, Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm,
Color: blue, Mounting type: NS 35/7,5, NS 35/15
Product Features
Compatible with all Phoenix Contact installation terminal blocks
As well as the testing facility in the function shaft, each terminal point has a test contact
Each terminal point can be clearly labeled and easily recognized in every terminal block mounting position
Compact design tailored to installation distributors
The new Push-in connection technology enables easy, direct insertion of solid and stranded conductors with ferrules with a cross section of 0.34
mm² or higher
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 PCE
50 PCE
85369010
Germany
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
1
2
blue
PA
V0
24 A (with 4 mm² conductor cross section)
24 A (with 2.5 mm² conductor cross section)
8 kV
3
21.11.2013 Page 1 / 19
https://www.phoenixcontact.com/us/products/3213969
Installation terminal block - PTI 2,5 BU - 3213969
Technical data
General
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
III
I
IEC 60947-7-1
24 A
800 V
ja
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
5.2 mm
59.5 mm
42.50 mm
44 mm
51.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.14 mm²
4 mm²
26
12
0.14 mm²
4 mm²
26
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Push-in connection
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27141116
27141121
21.11.2013 Page 2 / 19
https://www.phoenixcontact.com/us/products/3213969
Installation terminal block - PTI 2,5 BU - 3213969
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GL / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
B
26-12
20 A
C
26-12
20 A
D
26-12
5A
21.11.2013 Page 3 / 19
https://www.phoenixcontact.com/us/products/3213969
Installation terminal block - PTI 2,5 BU - 3213969
Approvals
Nominal voltage UN
B
600 V
C
600 V
D
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
600 V
C
26-12
20 A
600 V
D
26-12
5A
600 V
GOST
GL
cULus Recognized
Accessories
Accessories
Bridge
Plug-in bridge - FBS 2-5 - 3030161
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-5 - 3030174
Plug-in bridge, Number of positions: 3, Color: red
21.11.2013 Page 4 / 19
https://www.phoenixcontact.com/us/products/3213969
Installation terminal block - PTI 2,5 BU - 3213969
Accessories
Plug-in bridge - FBS 4-5 - 3030187
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-5 - 3030190
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-5 - 3030213
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge - FBS 20-5 - 3030226
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge - FBS 50-5 - 3038930
Plug-in bridge, Number of positions: 50, Color: red
Documentation
