Product Compliant to DIN41612/IEC603-2 Standard
PCN Series
Pin Header Side
qStraight
through hole type
PCN10EA-
* *P-2.54DSA
Receptacle Side
qStraight
through hole
PCN10EA-*
*S-2.54DSA
PCN10CA-*
*S-2.54DSA
PCN10EA-*
*S-2.54DSA
PCN10DA-*
*S-2.54DSA
PCN12EA-*
*S-2.54DSA
PCN12EA-*
*S-2.54DSA
PCN13EA-*
*S-2.54DSA
qWrapping
type
PCN10EA-*
*S-2.54W*
qStacking
through hole type
PCN10H* -
* *P-2.54DSA
qRight
angle through hole type (mounted on the board edge)
PCN10EA-*
*P-2.54DS
PCN12EA-*
*P-2.54DS
PCN12EA-*
*P-2.54DS
qRight
angle through hole type (mounted on the board edge)
PCN10BA-*
*S-2.54DS
qRight
angle through hole type (mounted on the board)
PCN10AE-*
*P-2.54DS
PCN10EA-*
*P-2.54DS
PCN12AE-*
*P-2.54DS
PCN12EA-*
*P-2.54DS
qRight
angle through hole type (mounted on the board)
PCN10AE-*
*S-2.54DS
PCN10CA-*
*S-2.54DS
PCN13EA-*
*S-2.54DS
qPress
fit type
qPress
fit short pin type
PCN11-*
*S-2.54PFB-2
PCN11-*
*P-2.54W*
-2+PCN11-*
*P-2.54H-2
qPress
fit long pin type
PCN11-*
*S-2.54WB-2
qCable
type
PCN10-*
*S-2.54C+PCN10-* * * *SC*
PCN10-*
*S-2.54R
A27
BApplication
Pattern
sCircuit
Protection Function Type
q2-row
type
q3-row
type
'
: Mounting hole center
C.L. :Center line
64 contacts :
The sequential contacts
are indicated at 22
points to contact No.1 to
4 and 26 to 32 in both
rows a and b.
100 contacts :
The sequential contact
is indicated at 22 points
to contact No.1 to 4 and
44 to 50 in both rows a
and b.
The sequential contacts are
located at 22 points to a1
and a32.

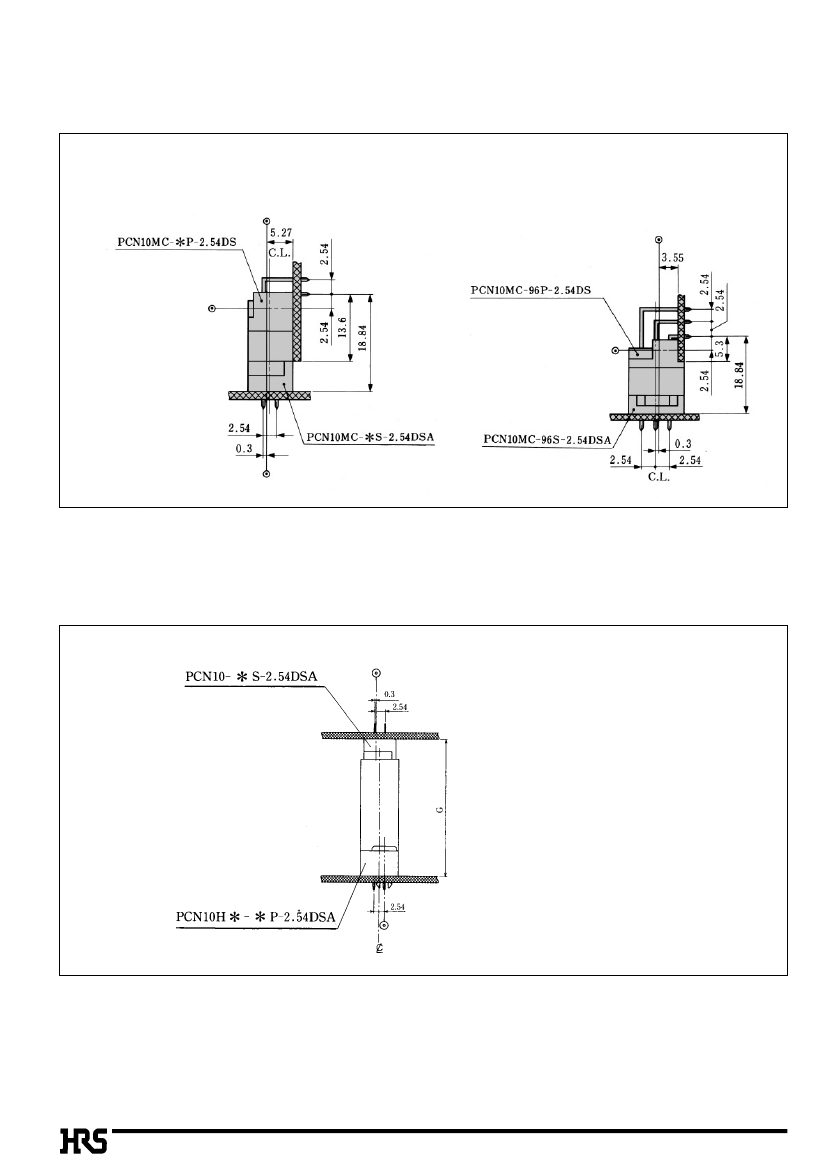

sStacking
Connector
'
: Mounting hole center
C.L. :Center line
*G
: 35, 30, 25, 45, 40
A70
sCoaxial
Connector and High Current Contact Composite Type
Pin Header Side
qRight
angle through hole type (mounted on the board edge)
PCN10F-*
*P-2.54DS
Receptacle Side
qStraight
through hole type
PCN10FA-*
*S-2.54DSA
qWrapping
type
qRight
angle through hole type (mounted on the board)
PCN10FA-*
*P-2.54DS
PCN10FA-*
*S-2.54W*
qRight
angle through hole type (mounted on the board edge)
PCN10FB-*
*S-2.54DS
qRight
angle through hole type (mounted on the board)
PCN10FA-*
*S-2.54DS
qPress
fit short pin type
PCN11F-*
*S-2.54PFB-2
qPress
fit long pin type
PCN11F-*
*S-2.54WB-2
Circuit Protection Function Type
Pin Header Side
Receptacle Side
qStraight
through hole type
PCN10MC*-*
*S-2.54DSA
qRight
angle through hole type
PCN10MC*-*
*P-2.54DS
qWrapping
type
PCN10MC*-*
*S-2.54W*
A28
PCN10, 12, 13 Series (Product Compliant to DIN Standard: through hole,Wrapping Type)
Double-sided two point Contact System
PCN Series
sFeatures

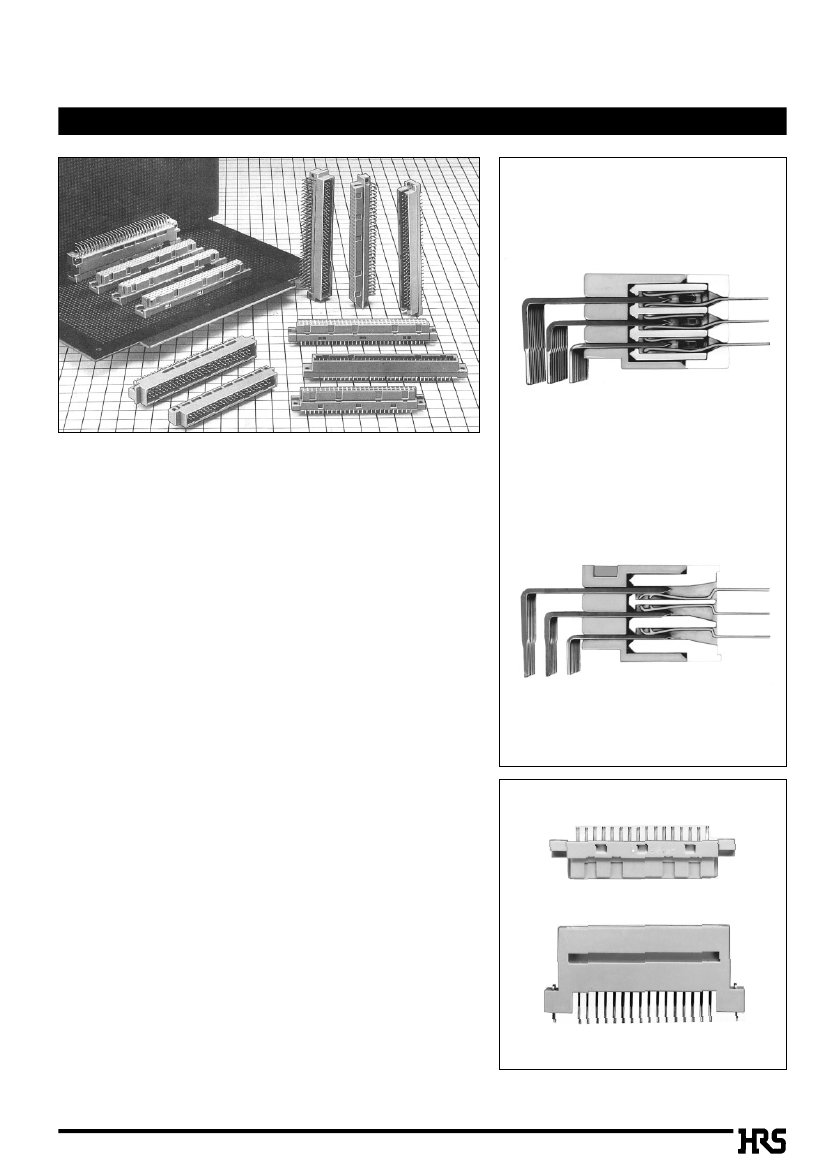

1. Compliant with DIN Standard
Comply with IEC603-2/DIN41612 standard.
Single-sided two point Contact System
2. Variation in number of contacts
10, 16, 20, 24, 28, 30, 32, 44, 48, 50, 64, 90, 96, 100, 128, and
144 contacts are available.
3. Two point contact construction
PCN10 and 12 series are constructed with high reliable double-
sided two point contacts.
PCN13 series pursues after cost performance, and constructed
with single sided two point contacts.
4. Broad applications
DIN standard types of B, C, R, and Q are available. The flux tight
product is available. The easy lock pin type to prefix the board is
available.
5. Stacking height variation
PCN10H series contains 25, 30, 35, 40 and 45mm stacking
height.
Stacking Connector
6. Circuit protection function available
PCN10MC series utilizes a sequence structure for circuit
protection function.
7. Cable connector
ID connector for ribbon cable is available.
The connector is prepared for crimping connection for AWC#26
to
30 cables.
sApplication
Control equipment, exchange, measuring instruments etc.
A29
sProduct
Specifications
Rating
Current rating: 2A
Voltage rating: 300V AC
Operating Temperature Range:
-55 to
+85ç
(Note 1)
Storage Temperature Range:
-10 to
+60ç
(Note 2)
Operating Humidity Range: 85%
max
Storage Humidity Range: 40
to
70%
(Note 2)
Item
1.Insulation Resistance 10
6
M
ohms
Specification
100V DC
Condition
1000V AC (insulation displacement, crimping type: 650V AC) /1 minute.
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-65ç : 30 minutes¡15 to 35ç: 5 minutes max.¡
125ç : 30 minutes¡15 to 35ç: 5 minutes max.) 5 cycles
2.Withstanding Voltage
No flashover or insulation breakdown.
3.Contact Resistance
4.Vibration
20m ohms max.
No electrical discontinuity of 10µs or more
5.Humidity(Steady
state)
Insulation resistance : 10
6
M
ohms
min.
6.Temperature Cycle
No damage, cracks, or parts looseness.
500 cycles
7.Durability (Mating/un-mating) Contact resistance : 20m
ohms
max.
8.Resistance to Soldering heat
No deformation of components affecting performance. Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Parts
Insulator
Contact
Pin header
Receptacle
Material
PBT
Brass
Copper alloy
Finish
Gray
Contact area: Gold plated
Remainer: Tin-lead plated
Remarks
UL94V-0
---------------
---------------
sOrdering
Information
qPCN
10 Series
PCN10
1
A –
*
P – 2.54 DS
2
3
4
5
6
3
Number of contacts: 2-row : 16, 20, 24, 32, 44, 50, 64, 90, 100
3-row : 48, 96, 144
4-row : 128
: P
:
Pin header
: S
:
Receptacle
: 2.54mm
1
2
Series Name
Blank
A
B
C :
D :
EA :
H :
HA :
HB :
HC :
HD :
MC :
: PCN10
mold type (as listed below)
}
4
Connector type
Flux prevention type (DSA only)
Rack installation type
With Board prefixed lock pin
Stacking height 35mm type
Stacking height 30mm type
Stacking height 25mm type
Stacking height 45mm type
Stacking height 40mm type
Circuit Protection function type
5
Contact pitch
6
Contact type
DS
DSA
WA
WB
R
C
: Right angle through hole type
: Straight through hole type
: Wrapping type (0.5tx0.7W)
: Wrapping type (0.5tx0.5W)
: Insulation displacement type
: Crimping type
*
*
A30
