MMS-105-02-T-DH: Descriptionconn rcpt 2mm 10pos DL horz smd; CategoryThe connector The connector; File Size493KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MMS-105-02-T-DH Overview

conn rcpt 2mm 10pos DL horz smd

MMS-105-02-T-DH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Other features	MOUNT, HORIZ
body width	0.164 inch
subject depth	0.175 inch
body length	0.417 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0286 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.477 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3.9 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Evacuation force-minimum value	.6116 N

Preview

Download Datasheet

View All

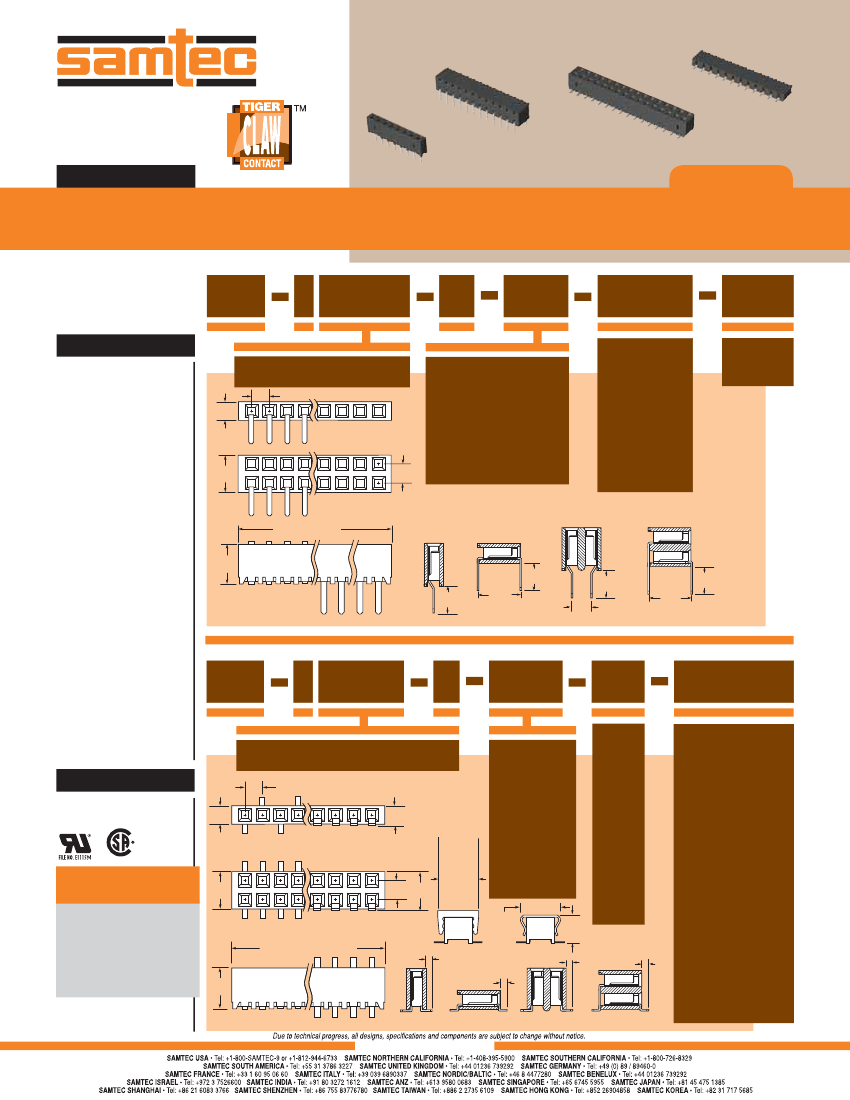

F-214

MMS–112–02–F–SH

MMS–112–01–T–DH

MMS–116–02–L–DV

MMS–108–01–L–SV

(2,00 mm) .0787"

MMS SERIES

TIGER CLAW SOCKET STRIP

Mates with:

TMMH, TMM, MTMM,

MMT, TW, LTMM,

ZLTMM, TCMD, TSH

™

MMS

1

NO. PINS

PER ROW

01

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MMS

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Current Rating (MMS/TMM):

3.9 A per pin

(1 pin powered per row)

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

DH = (2,13 mm) .084" to

(2,79 mm) .110",

SH = (2,13 mm) .084"

minimum or pass-through

Top Entry DV/SV = (2,13 mm)

.084" to (4,32 mm) .170"

Bottom Entry DV/SV =

(4,27 mm) .168" minimum

(Plus board)

Insertion Force:

(Single contact only)

3.7 oz (1,03 N) avg.

Withdrawal Force:

(Single contact only)

2.2 oz (0,61 N) avg.

RoHS Compliant:

Yes

(2,00)

.0787

01

–SV

02 thru 40

(2,00) .0787

–“XX”

= Polarized

Position

–F

= Gold ﬂash on contact,

Matte Tin on tail

= Single Vertical

–SH

= Single Horizontal

–L

–SV

–SH

40

02

= 10µ" (0,25 µm) Gold contact,

Matte Tin on tail

–DV

= Double Vertical

80

(4,00)

.157

79

(2,00)

.0787

–T

= Matte Tin

–DH

= Double Horizontal

–DV

No. of positions x

(2,00) .0787 + (0,56) .022

01

–DH

(4,45)

.175

(3,05)

.120

–SH

–DH

–SV

–DV

(2,92)

.115

(4,70)

.185

(2,92)

.115

(3,05)

.120

(4,70)

.185

–SH

(2,00)

.079

–SV

–DV

–DH

MMS

1

NO. PINS

PER ROW

02

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max

02 thru 40

(2,00)

.0787

(2,00)

.0787

01

(2,16)

.085

–F

= Gold ﬂash

on contact,

Matte Tin on tail

–SV

= Single

Vertical

–“XX”

= Polarized Position

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

–SH

= Single

Horizontal

–K

= (5,50 mm) .217" DIA

Polyimide Film

Pick & Place Pad

(–SV & –DV only)

(–SV= 3 positions min.)

(–DV= 4 positions min.)

–L

–S Row

(3,81) .150

x

(7,62) .300

–SV

–SH

40

= 10µ" (0,25 µm)

Gold contact,

Matte Tin on tail

–DV

= Double

Vertical

FILE NO: 090871_0_000

80

02

ALSO AVAILABLE

(MOQ Required)

• Alignment Pin (–DV only)

• Locking clips and

Through-hole pass-

through options

• Other platings

Contact Samtec.

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(4,00)

.157

79

01

(2,00) (4,17)

.0787 .164

–D Row

(5,71) .225

x

(10,01).394

–T

= Matte Tin

(5,08)

.200

x

(5,71)

.225

(4,70)

.185

–M

= Metal Pick & Place Pad

(4 positions min.)

(–DV only)

–DH

= Double

Horizontal

–DV

–DH

(1,22)

.048

No. of positions x

(2,00) .0787 + (0,56) .022

–P

(1,39) .055

–P

–M

(1,22) .048

(4,50)

.177

(1,39)

.055

= Plastic Pick & Place Pad

(4 pos. min., –SV only)

(5 pos. min., –DV only)

–TR

= Tape & Reel Packaging

–DV

–DH

–SV

–SH
