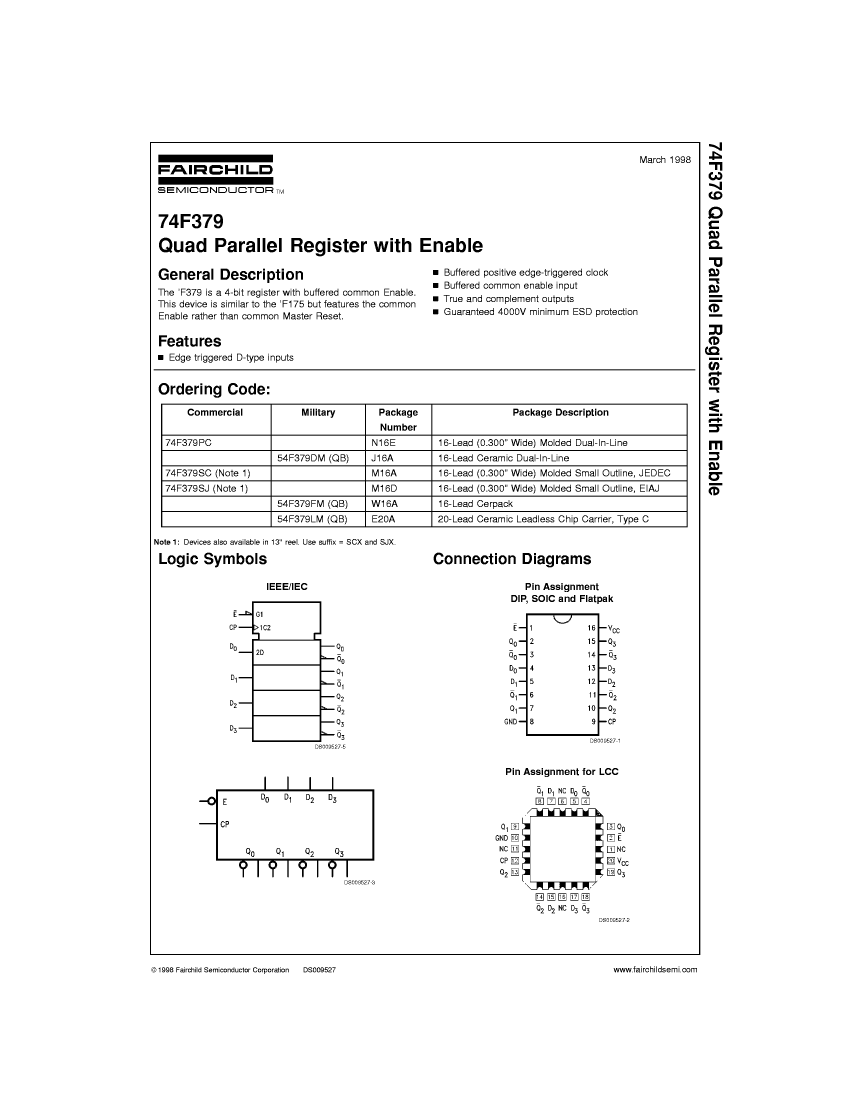

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16

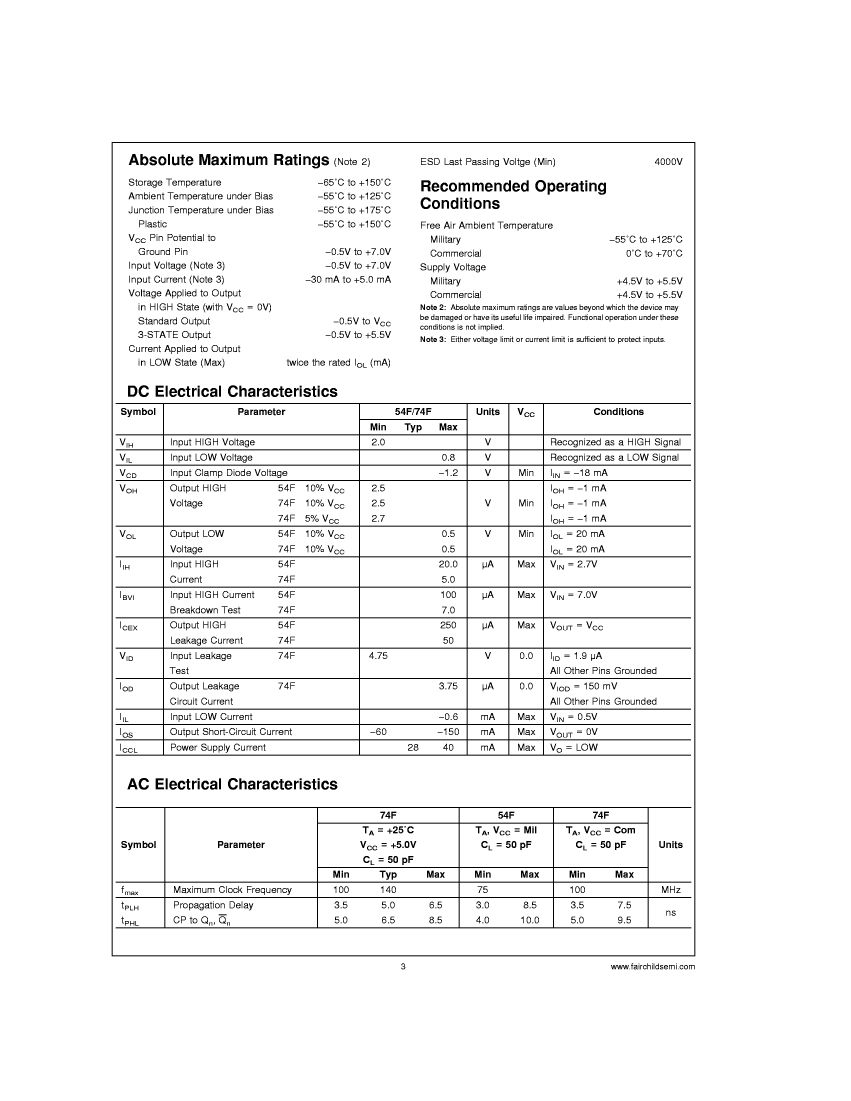

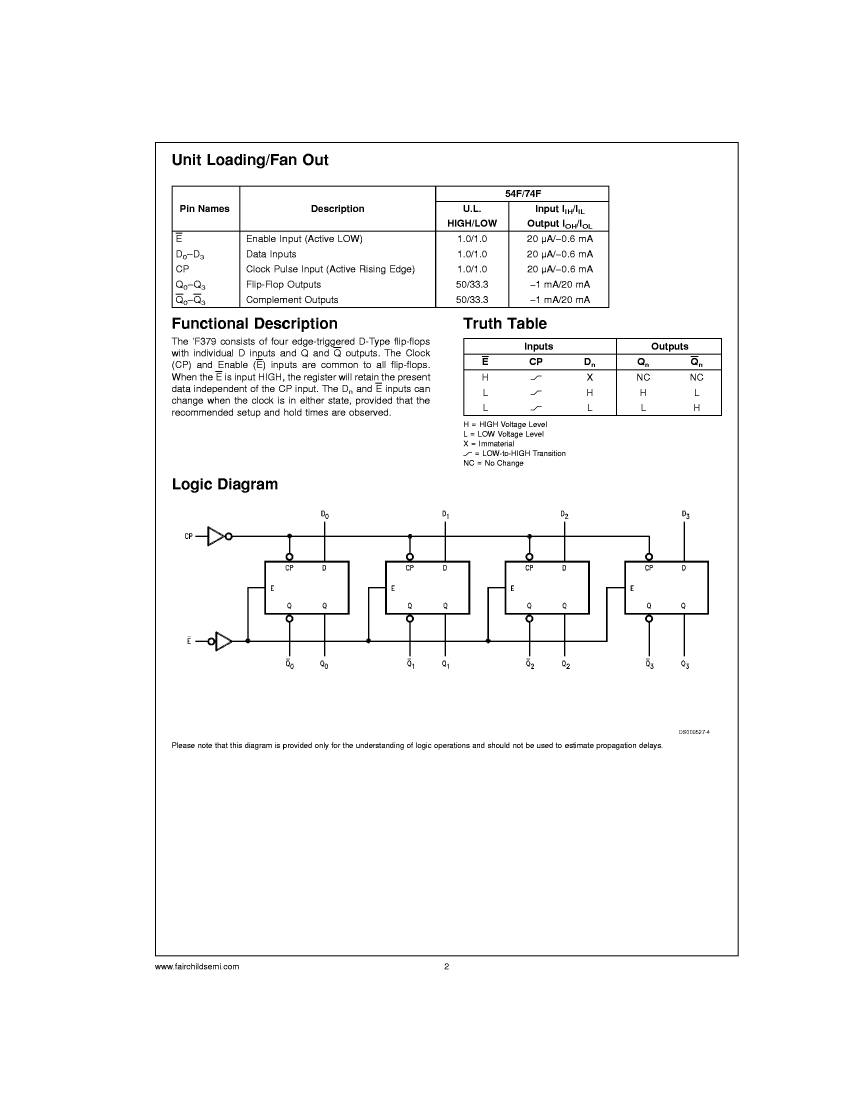

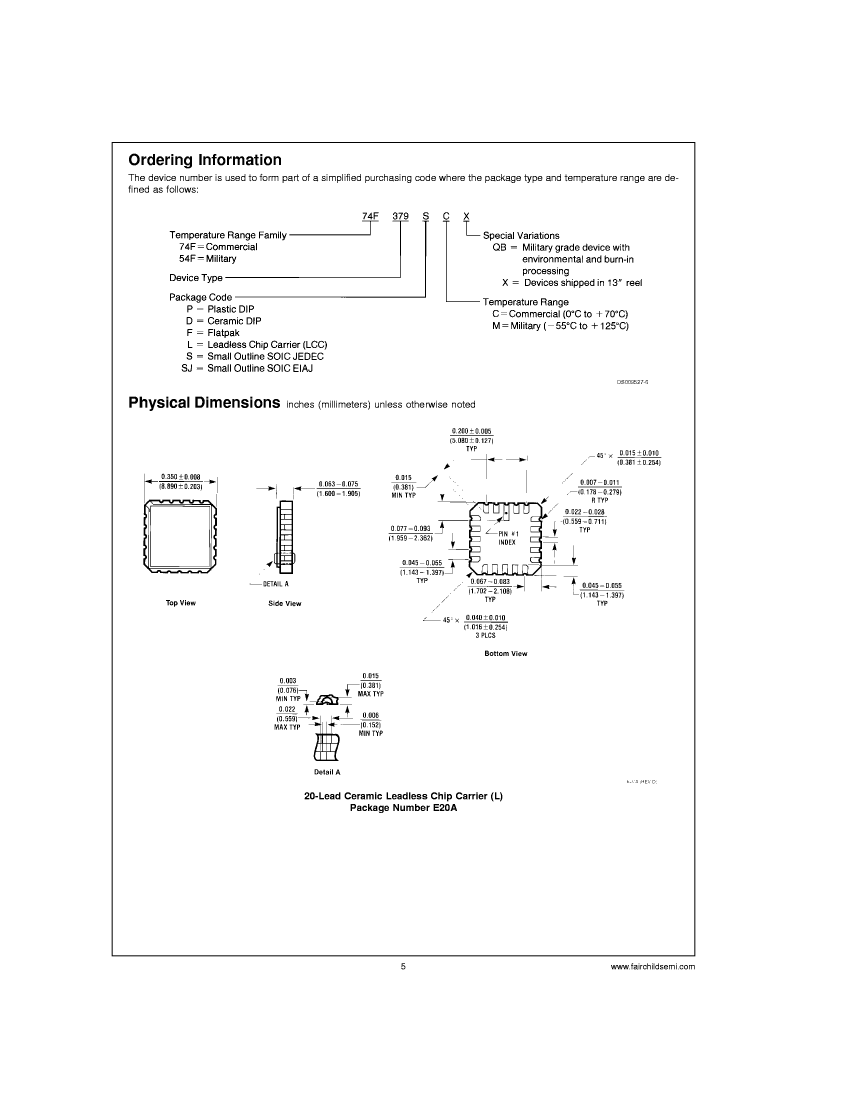

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | WITH HOLD MODE |
| series | F/FAST |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.43 mm |
| Logic integrated circuit type | D FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 75000000 Hz |
| MaximumI(ol) | 0.02 A |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 40 mA |
| propagation delay (tpd) | 10 ns |
| Certification status | Not Qualified |
| Filter level | 38535Q/M;38534H;883B |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 7.62 mm |
| minfmax | 75 MHz |
| Base Number Matches | 1 |
| 54F379DMQB | 54F379LMQB | 54F379FMQB | |
|---|---|---|---|
| Description | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDIP16, CERAMIC, DIP-16 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CQCC20, CERAMIC, LCC-20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 4-Bit, Complementary Output, TTL, CDFP16, CERPACK-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | QLCC | DFP |
| package instruction | DIP, DIP16,.3 | QCCN, LCC20,.35SQ | DFP, FL16,.3 |
| Contacts | 16 | 20 | 16 |
| Reach Compliance Code | unknown | unknow | unknown |
| Other features | WITH HOLD MODE | WITH HOLD MODE | WITH HOLD MODE |
| series | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T16 | S-CQCC-N20 | R-GDFP-F16 |
| JESD-609 code | e0 | e0 | e0 |
| length | 19.43 mm | 8.89 mm | 9.6645 mm |
| Logic integrated circuit type | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| MaximumI(ol) | 0.02 A | 0.02 A | 0.02 A |
| Number of digits | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 16 | 20 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | QCCN | DFP |
| Encapsulate equivalent code | DIP16,.3 | LCC20,.35SQ | FL16,.3 |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 40 mA | 40 mA | 40 mA |
| propagation delay (tpd) | 10 ns | 10 ns | 10 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Filter level | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B | 38535Q/M;38534H;883B |
| Maximum seat height | 5.08 mm | 1.905 mm | 2.032 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES |
| technology | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | NO LEAD | FLAT |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | QUAD | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 7.62 mm | 8.89 mm | 6.604 mm |
| minfmax | 75 MHz | 75 MHz | 75 MHz |
| Base Number Matches | 1 | 1 | 1 |
| Maximum Frequency@Nom-Sup | 75000000 Hz | - | 75000000 Hz |
