Crimp
PHD
CONNECTOR
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Compact
2.0mm (.079") pitch connector, 8.8mm (.346") in height after
mounting and 5.0mm (.197") in width. This compact design
meets the demand for high-density connection.
2.0mm
(.079") pitch
• Reliable contacts
The box contact supplies stable contact performance even
under conditions of vibration, distortion, low voltage or low
current.
• Fully shrouded header
The header is fully shrouded, having walls on all four sides to
prevent improper mating and the intrusion of flux and other
contaminants.

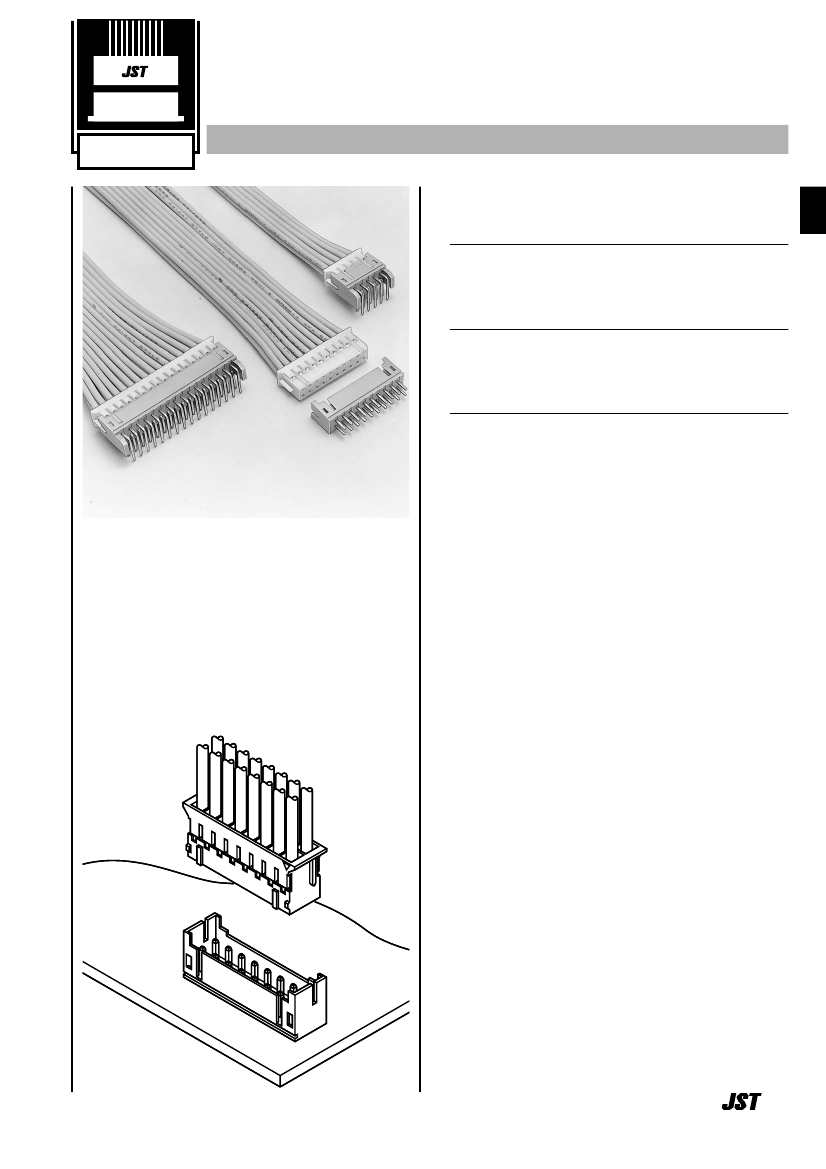

This is a 2.0mm (.079") pitch, crimp style,
double-row, wire-to-board connector. It is
designed to meet the demand for high-
density and low-profile connection.
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
0
Recognized E60389
Certified LR20812
57
PHD
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
mm
2
Applicable wire
AWG #
28 to 24
26 to 22
Insulation O.D. mm(in.)
0.9 to 1.5(.035 to .059)
1.0 to 1.5(.039 to .059)
Q'ty /
reel
8,000
1.5(.059)
SPHD-002T-P0.5
SPHD-001T-P0.5
0.08 to 0.21
0.13 to 0.33
Material and Finish
6.5(.256)
Phosphor bronze, tin-plated
2.85(.112)
1.3
(.051)
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
8
Circuit
No.1
Circuit
No.1
Circuit
No.2
Model No.
PHDR-08VS
PHDR-10VS
PHDR-12VS
PHDR-14VS
PHDR-16VS
PHDR-18VS
PHDR-20VS
PHDR-22VS
PHDR-24VS
PHDR-26VS
PHDR-28VS
PHDR-30VS
PHDR-32VS
PHDR-34VS
Dimensions mm(in.)
A
6.0( .236)
8.0( .315)
10.0( .394)
12.0( .472)
14.0( .551)
16.0( .630)
18.0( .709)
20.0( .787)
22.0( .866)
24.0( .945)
26.0(1.024)
28.0(1.102)
30.0(1.181)
32.0(1.260)
B
9.9( .390)
11.9( .469)
13.9( .547)
15.9( .626)
17.9( .705)
19.9( .783)
21.9( .862)
23.9( .941)
25.9(1.020)
27.9(1.098)
29.9(1.177)
31.9(1.256)
33.9(1.335)
35.9(1.413)
Q'ty /
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
10
12
7.3(.287)
2.0
(.079)
1.95
(.077)
A
B
58
H JST
14
16
18
20
22
2.0
(.079)
4.2(.165)
5.0(.197)
24
26
28
30
32
34
Material
Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PHDR-10VS-
S…natural (white)
K…black Y…yellow E…blue R…red
PHD
CONNECTOR
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
Circuit No.1
Side entry type
Circuit No.1
Circuit
No.2
[3.0(.118)]
6.5(.256)
H
JST
6.5(.256)
9.5(.374)
2.0
1.95 (.079)
(.077)
A
B
1.5 2.0
(.059) (.079)
5.0(.197)
5.0(.197)
1.95
(.077)
2.0(.079)
A
B
[3.0
(.118)]
Circuit No.1
Model No.
Circuits
8
10
12
14
16
18
20
22
24
26
28
30
32
34
Dimensions mm(in.)
Nylon
Side entry
type
A
6.0( .236)
8.0( .315)
10.0( .394)
12.0( .472)
14.0( .551)
16.0( .630)
18.0( .709)
20.0( .787)
22.0( .866)
24.0( .945)
26.0(1.024)
28.0(1.102)
30.0(1.181)
32.0(1.260)
Q'ty / box
Top
entry
type
Side
entry
type
500
500
500
250
250
250
250
250
200
200
200
200
200
200
Glass-filled nylon
Top entry
Side entry
type
type
B 8B-PHDSS
B10B-PHDSS
B12B-PHDSS
B14B-PHDSS
B16B-PHDSS
B18B-PHDSS
B20B-PHDSS
B22B-PHDSS
B24B-PHDSS
B26B-PHDSS
B28B-PHDSS
B30B-PHDSS
B32B-PHDSS
B34B-PHDSS
S 8B-PHDSS
S10B-PHDSS
S12B-PHDSS
S14B-PHDSS
S16B-PHDSS
S18B-PHDSS
S20B-PHDSS
S22B-PHDSS
S24B-PHDSS
S26B-PHDSS
S28B-PHDSS
S30B-PHDSS
S32B-PHDSS
S34B-PHDSS
Top entry
type
B
9.9( .390)
11.9( .469)
13.9( .547)
15.9( .626)
17.9( .705)
19.9( .783)
21.9( .862)
23.9( .941)
25.9(1.020)
27.9(1.098)
29.9(1.177)
31.9(1.256)
33.9(1.335)
35.9(1.413)
–
B10B-PHDSS-B
B12B-PHDSS-B
B14B-PHDSS-B
B16B-PHDSS-B
B18B-PHDSS-B
B20B-PHDSS-B
B22B-PHDSS-B
B24B-PHDSS-B
B26B-PHDSS-B
B28B-PHDSS-B
B30B-PHDSS-B
B32B-PHDSS-B
B34B-PHDSS-B
–
S10B-PHDSS-B
S12B-PHDSS-B
S14B-PHDSS-B
S16B-PHDSS-B
S18B-PHDSS-B
S20B-PHDSS-B
S22B-PHDSS-B
S24B-PHDSS-B
S26B-PHDSS-B
S28B-PHDSS-B
S30B-PHDSS-B
S32B-PHDSS-B
S34B-PHDSS-B
–
500
500
500
500
500
250
250
250
250
250
250
250
250
Material and Finish
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer: Glass-filled nylon 66, UL94V-0, natural (ivory)
Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
ex.
B10B-PHDSS-
S…natural (ivory)
B10B-PHDSS-B-
S…natural (white)
K…black Y…yellow E…blue R…red
2.0
(.079)
Circuit
No.1
Circuit
No.2
7.0(.276)
H
JST
59
PHD
CONNECTOR
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
1.5
(.059)
min.
2.0±0.05
(.079±.002)
0.1
0.7
+ 0
.004
(.028
+ 0
)dia.
Side entry type
1.95
(.077)
min.
5.0(.197)
2.0±0.05
1.95
(.079±.002) (.077)
min.
7.0(.276)
min.
11.8(.465)
5.0(.197)
8.8(.346)
0.1
0.7
+ 0
.004
(.028
+ 0
)dia.
2.0±0.05
(.079±.002)
Even number
circuits
Circuit No.1
Note:
1. Tolerances are non-cumulative:
±
0.05mm(
±
.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If printed circuit boards made of hard material are used, the hole
dimensions should be larger. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SPHD-001T-P0.5
SPHD-002T-P0.5
Crimp applicator MKS-L-10
with safety cover
without safety cover
APLMK SPHD001-05
APLMK SPHD002-05
APLNC SPHD001-05
APLNC SPHD002-05
Compact crimp applicator MKS-LS-10
with safety cover
without safety cover
APLMKLS SPHD001-05
APLMKLS SPHD002-05
APLLSNC SPHD001-05
APLLSNC SPHD002-05
2.0±0.05
(.079±.002)
[3.0(.118)]
Strip-crimp applicator MKS-SC-10
with safety cover
APLSC SPHD001-05
APLSC SPHD002-05
60
[3.0(.118)]
Odd number
circuits
