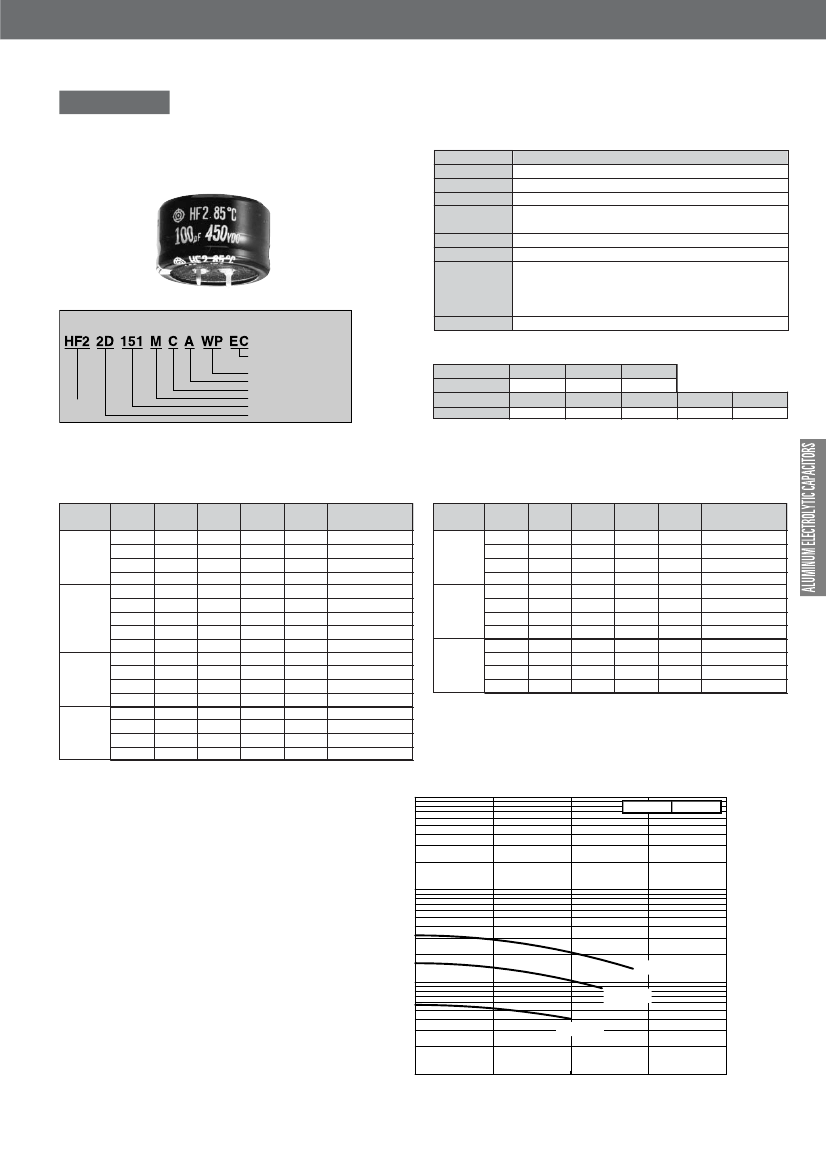

SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS
HF2 Series
• Conform RoHS
Useful of 4,000 hours at 85°C (Warranty of 2,000 hours at 85°C)
Product Specifications
Features
• The HF2 type is the same as the HP3 type.
with 20mm hight.
Items
Specifications
Temperature range –40°C ~ +85°C
Rated voltage 160 ~ 450V.DC
Capacitance tolerance ±20% (20°C,120Hz)
0.02CV (µA) or 3mA, whichever is smaller or less (20˚C,after 5 minutes)
Leakage current
[C = nominal capacitance (µF), V = rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)
Permissible ripple current As specified in the standard products table. (85˚C,120Hz)
High temp.
Load life test
After 85°C, 2000h, rated voltage with specified ripple current application
Capacitance variation : Initial value ±15%
Dissipation factor : 175% of less of specified initial value
Leakage current : Not greater than the specified initial value
JIS C 5101-4.
Product code: (Example) HF2 series 200V 150µF±20%
HF2 2D 151 M C A WP EC
Others
Type of
series
Lead-Free and
PVC-Free(standard)
Without plate(standard)
Case dia code
Terminal code
Capacitance tolerance code
Capacitance code
Rated voltage code
Ripple current correction coefficient
85
60
70
1.0
1.4
1.2
300
≧10K
120
50/60
1K
1.1
1.4
1.3
1.0
0.7
Correction coefficient
A continuous load should be avoided over 10 Arms at the terminal in accordance
with the permissible current.
Please consult us when the ripple voltage exceeds 70Vp-p .
Temperature (°C)
Correction coefficient
Frequency (Hz)
Refer to page (97) for other terminal shape available on request
Standard Products Table
Rated Voltage
Code
(Surge Voltage)
(V. DC)
160
2C
(200)
180
2P
(225)
200
2D
(250)
250
2E
(300)
Ripple current ESR(typ.)
Capacitance Case size
tanδ
Product name
(Arms) 20°C,100Hz
(µF) øDXL(mm) 20°C,120Hz
85°C,120Hz
(mΩ)
955
150
HF22C151MCXWPEC
0.15
0.74
22×20
651
220
HF22C221MCXWPEC
22×20
0.15
0.98
434
330
HF22C331MCZWPEC
30×20
0.15
1.31
305
470
HF22C471MCAWPEC
35×20
0.15
1.47
1226 HF22P101MCXWPEC
100
22×20
0.15
0.61
817
HF22P151MCXWPEC
150
22×20
0.15
0.74
557
HF22P221MCXWPEC
220
22×20
0.15
0.98
375
HF22P331MCZWPEC
330
30×20
0.15
1.31
265
HF22P471MCAWPEC
470
35×20
0.15
1.47
1067 HF22D101MCXWPEC
100
22×20
0.15
0.61
711
HF22D151MCAWPEC
150
35×20
0.15
0.74
485
HF22D221MCAWPEC
0.15
0.98
220
35×20
325
HF22D331MCAWPEC
330
35×20
0.15
1.23
1067 HF22E101MCXWPEC
100
22×20
0.15
0.61
711
HF22E151MCYWPEC
150
25×20
0.15
0.81
485
HF22E221MCZWPEC
0.15
1.07
220
30×20
325
HF22E331MCAWPEC
330
35×20
0.15
1.23
Rated Voltage
Code
(Surge Voltage)
(V. DC)
350
2V
(400)
400
2G
(450)
450
2W
(500)
Ripple current ESR(typ.)
Capacitance Case size
tanδ
Product name
(Arms) 20°C,100Hz
(µF) øDXL(mm) 20°C,120Hz
85°C,120Hz
(mΩ)
68
1570 HF22V680MCXS2WPEC
22×20
0.15
0.53
100
1070 HF22V101MCYS2WPEC
25×20
0.15
0.66
150
720
HF22V151MCZS2WPEC
30×20
0.15
0.88
180
600
HF22V181MCAS2WPEC
35×20
0.15
1.03
1910 HF22G560MCXS2WPEC
56
22×20
0.15
0.48
1310 HF22G820MCYS2WPEC
82
25×20
0.15
0.60
890
HF22G121MCZS2WPEC
0.15
0.79
120
30×20
600
HF22G181MCAS2WPEC
180
35×20
0.15
1.03
2270 HF22W470MCXS2WPEC
47
22×20
0.15
0.44
1570 HF22W680MCYS2WPEC
68
25×20
0.15
0.54
1070 HF22W101MCZS2WPEC
100
30×20
0.15
0.72
890
HF22W121MCAS2WPEC
120
35×20
0.15
0.84
Life time graph
Useful life depending on ambient
temperature Ta and ripple current
operating conditions Ir versus rated ripple
current at 85℃,120Hz
1,000,000
Series
HF2
100,000
Useful life (h)
Ta=60℃
Ta=60
10,000
Ta=70℃
Ta=70
Ta=85℃
Ta=85
1,000
0
0.5
1
1.5
Ripple Current of Diminishing Ratio(I/Ir,85
Ratio(I/Ir,85℃)
2
121
Hitachi AIC Inc.
Industrial Control Electronics
