GROMMET DASH
GROMMET NO.
"W"±.012 [0.3] "H"±.008 [0.2] "L" REF "T" MAX
NO.
1L
2L
1M
2M
3M
1S
2S
.354 [9]
.394 [10]
.315 [8]
.335 [8.5]
.374 [9.5]
.299 [7.6]
.319 [8.1]
.063 [1.6]
.098 [2.5]
.043 [1.1]
.063 [1.6]
.098 [2.5]
.039 [1]
.059 [1.5]
"T1" MAX
"DR" REMOVABLE
ALTERNATE
"DF" FIXED PANEL
PANEL HOLE DIA.
MATING PLUNGER MATING PLUNGER
HOLE DIA. RANGE
RANGE
NO.
SLPL
SLPB
PLUNGER DASH
NO.
1L
2L
1M
2M
3M
1S
2S
.425 [10.8]
.335 [8.5]
.256 [6.5]
.079 [2]
.071 [1.8]
.047 [1.2]
SLG
.079-.165 [2-4.2]
.295-.303 [7.5-7.7]
.315-.323 [8-8.2]
.118-.205 [3-5.2]
.059-.146 [1.5-3.7]
.079-.165 [2-4.2] .234-.240 [5.95-6.1] .250-.256 [6.35-6.5]
.118-.272 [3-5.2]
.079-.158 [2-4]
.177-.181 [4.5-4.6] .185-.189 [4.7-4.8]
.098-.177 [2.5-4.5]
SLPB
----
LATCHED POSITION
PLUNGER
REMOVABLE PANEL
"W"
"T"
"T1"
"L"
.37 9.5
FIXED PANEL
GROMMET
"DR"
HOLE DIAMETER
IN REMOVABLE PANEL
"H"
EASY GRIP
.63 16
PLUNGER STYLES
MINI GRIP
.37 9.4
.33 8.3
.26 6.5
.28 7
.24 6
.26 6.5
"DF"
HOLE DIAMETER
IN FIXED PANEL
SLPL-1L ~ SLPL-2L
SLPB-1L ~ SLPB-2L
SLPB-1M ~ SLPB-3M
SLPB-1S ~ SLPB-2S
NOTES:
1. PLUNGER MATERIAL: NYLON 6, (RMS-120).
SLPB-2M MATERIAL: NYLON 6 (RMS-52)
2. GROMMET MATERIAL: POLYCARBONATE, (RMS-72).
3. COLOR: BLACK OR WHITE; ADD SUFFIX "-B" OR "-W" TO PART NO.
O
N
M
L
K
J
I
H
-
REV.
SEE CO 200747 FOR CHANGES
SEE CO 200725 FOR CHANGES
SEE CO 200724 FOR CHANGES
SEE CO 200604 FOR CHANGES
SEE CO 200302 FOR CHANGES
SEE CO 200187 FOR CHANGES
SEE ECN #1157 FOR CHANGES
SEE ECN #944 FOR CHANGES
SEE ENG. FOR REVISIONS A-G
DESCRIPTION
SK 01/12/2012
SK
10/11/11
SK
10/11/11
TITLE:
SK
12/01/10
CREATED USING
SK
01/06/09
SOLIDWORKS
S.K.
05/21/08
TOLERANCES
SJ
4/25/06
UNLESS NOTED
.XX=±.01
SK
02/22/05
.XXX=±.005
-
---
FRAC.=±1/64
ANG.=±1°
ENGR. DATE

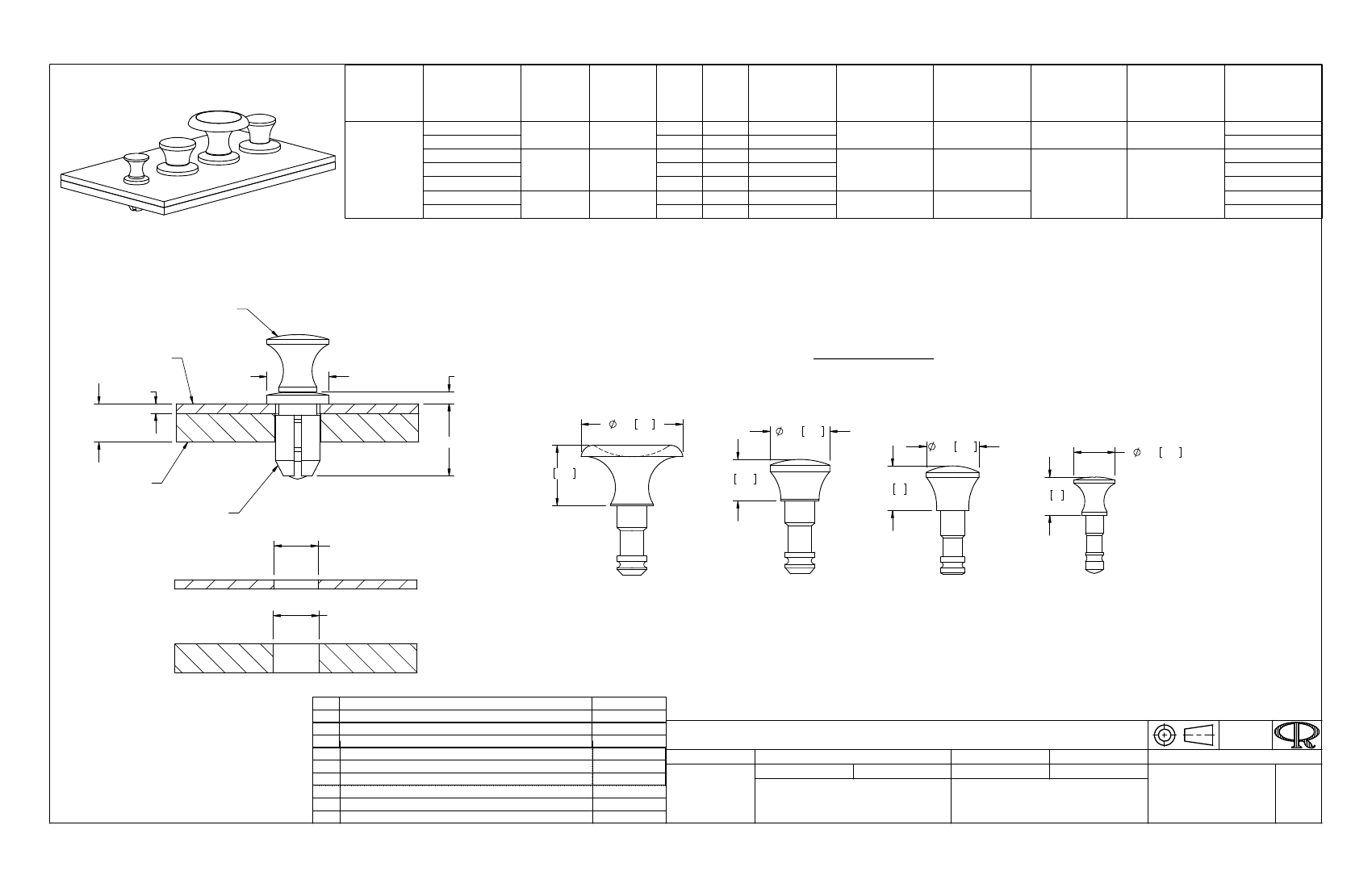

SNAP LATCH
FILE #: SL
SHEET: 1 OF 1
RE:
SHEET SIZE: B
DWN: SK
DT: 02/22/05
APP: SK
CHKD: RDG
PART #
DWG IN
IN [MM]
FINAL
RICHCO, INC.
RICHCO, INC.
ENG@RICHCO-INC.COM
SEE TABLE
PRINT
TYPE
(773) 539-4060
