FR801R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR801R

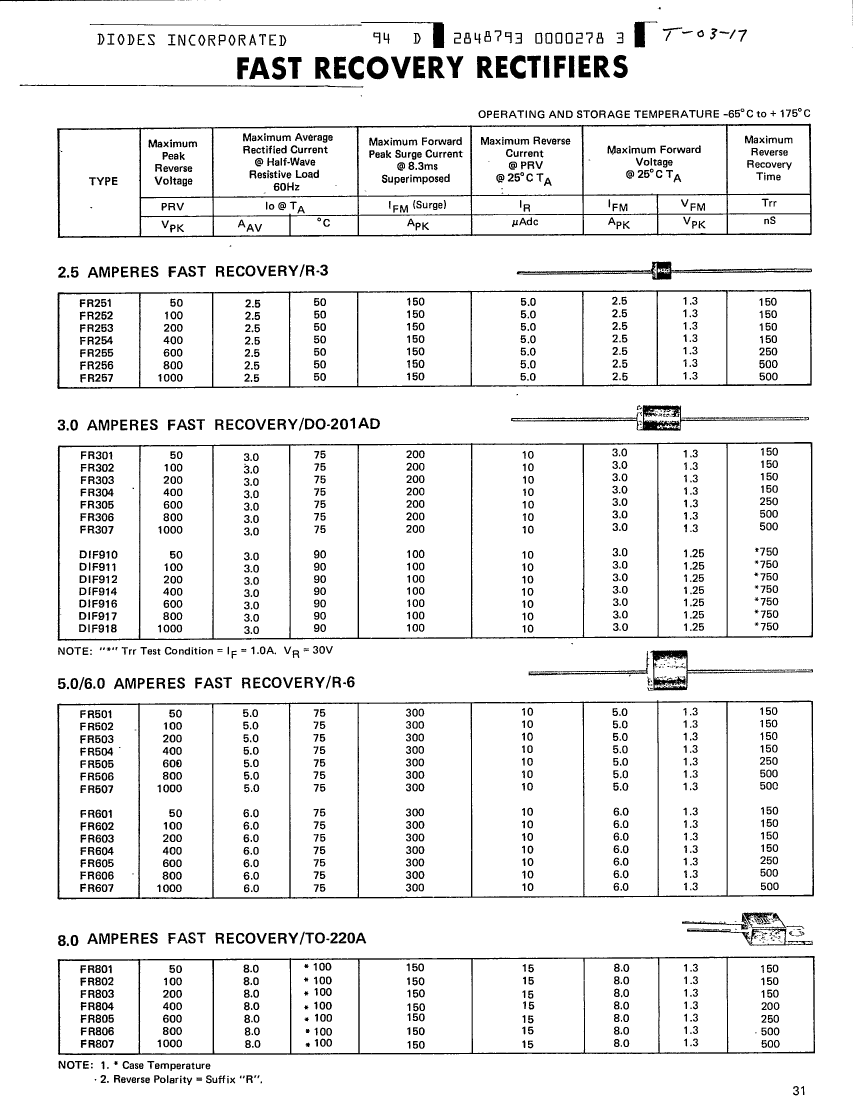

FR801R: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 2 PIN; CategoryDiscrete semiconductor diode; File Size108KB，1 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

FR801R Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 2 PIN

FR801R Parametric

Parameter Name	Attribute value
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	150 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

FR801R Related Products

	FR801R	FR805R	FR807	FR802R	DIF918
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 2 PIN	Rectifier Diode, 1 Element, 8A, 1000V V(RRM)	Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon, TO-220AC, PLASTIC, TO-220A, 2 PIN	Rectifier Diode,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Parts packaging code	TO-220AC	TO-220AC	-	TO-220AC	-
package instruction	R-PSFM-T2	R-PSFM-T2	-	R-PSFM-T2	-
Contacts	3	3	-	3	-
ECCN code	EAR99	EAR99	-	-	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	-	HIGH RELIABILITY	-
application	FAST RECOVERY	FAST RECOVERY	-	FAST RECOVERY	-
Shell connection	ANODE	ANODE	-	ANODE	-
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-
Diode component materials	SILICON	SILICON	-	SILICON	-
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	-
JEDEC-95 code	TO-220AC	TO-220AC	-	TO-220AC	-
JESD-30 code	R-PSFM-T2	R-PSFM-T2	-	R-PSFM-T2	-
Maximum non-repetitive peak forward current	150 A	150 A	400 A	150 A	-
Number of components	1	1	1	1	-
Phase	1	1	-	1	-
Number of terminals	2	2	-	2	-
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	-
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-
Maximum output current	8 A	8 A	8 A	8 A	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	-
Certification status	Not Qualified	Not Qualified	-	Not Qualified	-
Maximum repetitive peak reverse voltage	50 V	600 V	1000 V	100 V	-
Maximum reverse current	10 µA	10 µA	-	10 µA	-
Maximum reverse recovery time	0.15 µs	0.25 µs	-	0.15 µs	-
surface mount	NO	NO	NO	NO	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	-
Terminal location	SINGLE	SINGLE	-	SINGLE	-
Base Number Matches	1	1	1	-	-
