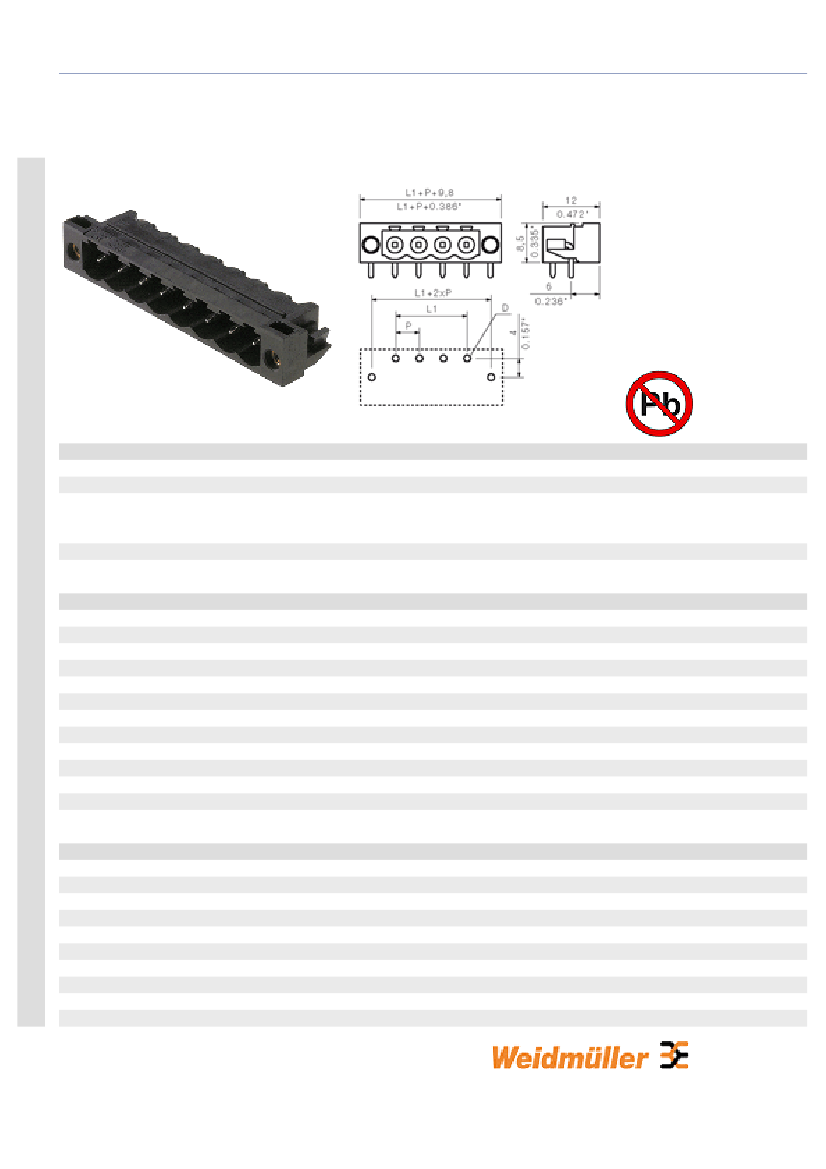

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90LF | SL-SMT 5.00/90LF Box
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
1797250000
SL-SMT5.00/4/90LF 1.5SN
PCB plug-in connector, Male connectors, Reflow
solder connection, Pitch: 5.00 mm, No. of poles: 4,
90°, Box
4032248238033
100 pc(s).
Reflow solder connection
90°
5 mm
0.197 inch
4
1.5 mm
Yes
1
1
+ 0.1 mm
15 mm
0.591 inch
1 MΩ
LCP GF
black
Similar to RAL 9011
IIIa
V-0
>= 175
CuSn
tinned
-25 °C
100
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90LF | SL-SMT 5.00/90LF Box
Material data
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
-25 °C
55 °C
80 %
19 A
15 A
16 A
13 A
250 V
4 kV
320 V
4 kV
400 V
4 kV
300 V
10 A
300 V
10 A
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
NK
EC001284
27-26-07-01
27-26-07-01
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90LF | SL-SMT 5.00/90LF Box
Classifications
eClass 5.1
27-26-07-04
Similar products
Order No.
1797230000
1840350000
1797240000
1840360000
1840370000
1797260000
1840380000
1797270000
1840390000
1797280000
1840400000
1797290000
1840410000
1797300000
1840420000
1797310000
1840430000
1797320000
1840440000
1797330000
1840450000
1797340000
Part designation
SL-SMT5.00/2/90LF 1.5SN
SL-SMT5.00/2/90LF 3.2SN SW
BOX
SL-SMT5.00/3/90LF 1.5SN
SL-SMT5.00/3/90LF 3.2SN SW
BOX
SL-SMT5.00/4/90LF 3.2SN SW
BOX
SL-SMT5.00/5/90LF 1.5SN
SL-SMT5.00/5/90LF 3.2SN SW
BOX
SL-SMT5.00/6/90LF 1.5SN
SL-SMT5.00/6/90LF 3.2SN SW
BOX
SL-SMT5.00/7/90LF 1.5SN
SL-SMT5.00/7/90LF 3.2SN SW
BOX
SL-SMT5.00/8/90LF 1.5SN
SL-SMT5.00/8/90LF 3.2SN SW
BOX
SL-SMT5.00/9/90LF 1.5SN
SL-SMT5.00/9/90LF 3.2SN SW
BOX
SL-SMT5.00/10/90LF 1.5SN
SL-SMT5.00/10/90LF 3.2SN SW
BOX
SL-SMT5.00/11/90LF 1.5SN
SL-SMT5.00/11/90LF 3.2SN SW
BOX
SL-SMT5.00/12/90LF 1.5SN
SL-SMT5.00/12/90LF 3.2SN SW
BOX
SL-SMT5.00/13/90LF 1.5SN
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 13, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug
connectors, THR solder connection, pitch 5.00/5.08 | SL-SMT 5.00-5.08/90LF | SL-SMT 5.00/90LF Box
1840460000
1797350000
1840470000
1797360000
1840480000
1797370000
1840490000
1840500000
1840510000
1840520000
1840530000
1840540000
1840550000
1840560000
1840570000
SL-SMT5.00/13/90LF 3.2SN SW
BOX
SL-SMT5.00/14/90LF 1.5SN
SL-SMT5.00/14/90LF 3.2SN SW
BOX
SL-SMT5.00/15/90LF 1.5SN
SL-SMT5.00/15/90LF 3.2SN SW
BOX
SL-SMT5.00/16/90LF 1.5SN
SL-SMT5.00/16/90LF 3.2SN SW
BOX
SL-SMT5.00/17/90LF 3.2SN SW
BOX
SL-SMT5.00/18/90LF 3.2SN SW
BOX
SL-SMT5.00/19/90LF 3.2SN SW
BOX
SL-SMT5.00/20/90LF 3.2SN SW
BOX
SL-SMT5.00/21/90LF 3.2SN SW
BOX
SL-SMT5.00/22/90LF 3.2SN SW
BOX
SL-SMT5.00/23/90LF 3.2SN SW
BOX
SL-SMT5.00/24/90LF 3.2SN SW
BOX
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 19, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 20, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 21, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 22, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 23, 90°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 5.00 mm, No. of poles: 24, 90°, Box
