CRYSTAL OSCILLATORS
Data Sheet 0648B
Rev. J
CMOS/LVCMOS HF VCTCXO
AB-XC3XXX-X Series
Description
The AB-XC3XXX Series
of voltage controlled, temperature compensated crystal
oscillators (VCTCXO) provides high frequency with CMOS/LVCMOS output. The
outputs can be tristated for test automation or combining multiple clocks. The device
does not use any frequency multiplication, providing exceptionally low Phase Noise and
Jitter. It’s packaged in a miniature, FR-4 based 9x14 mm SMD package
Applications and Features
•
•
•
•
•
•
•
Fiber Channel; 10 GbE; Infiniband; Network Processors; SONET/SDH
High Reliability – NEL HALT/HASS qualified for crystal oscillator start-up
conditions
Extremely Low Phase Noise and Jitter
No Multiplication
Frequency Stability from ± 5 ppm
High Shock Resistance, to 1000g
COTS/Dual use
Creating a Part Number
AB - X C3 X X X – X - FREQ
Package code
AB 6 pad 9x14x 6.1mm SMD
Environmental
L Contains a level of lead that is in
excess of RoHS directive and is
not designed for reflow
R RoHS compliant
Operating Voltage
0 5.0 V ± 5%
A 3.3 V ± 5%
B 2.5 V ± 5%
C 1.8 V ± 5%
Tristate Option
T - tristate
N – N/A
Temp. Stability, ppm,
5 ±5
6 ±10
Temperature Range, ºC
A – 0 to 50
B - 0 to 70
C - -20 to 70
9 – customer specific
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
Data Sheet 0648B
Rev. J
CMOS/LVCMOS HF VCTCXO
AB-XC3XXX-X Series
Drawing Specification
OUTLINE TOLERANCE:
±0.015” / 0.4mm
(Unless otherwise
specified)
PIN FUNCTIONS:
[1] Vc
[2] EN / DIS or N/C
[3] CASE / GROUND
[4] OUTPUT
[5] N/C
[6] SUPPLY VOLTAGE
MARKING (EXAMPLE):
AB-XC3XXX
Absolute Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Supply Voltage
Control Voltage
Enable/Disable Voltage
Symbol
To
Tst
Vcc
Vc
Ven/dis
Value
-40 to +85
-50 to +90
-0.5 to 5.5
-0.5 to 5.5
0 to Vcc
Unit
ºC
ºC
V
V
V
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
Data Sheet 0648B
Rev. J
CMOS/LVCMOS HF VCTCXO
AB-XC3XXX-X Series
Electrical Parameters
(1)
Parameter
Nominal Frequency
Supply Voltage
Symb
Fo
Vcc
Conditions, Note
Code 0
Code A
Code B
Code C
No load, Vcc = 3.3 V
40 MHz
MIN
12
4.75
3.135
2.375
1.71
TYP
5.0
3.3
2.5
1.8
CMOS
15 pF/10
KOhm
MAX
125
5.25
3.465
2.625
1.89
40
Unit
MHz
V
Supply current
Output Logic Type
Load
Output Levels
Duty Cycle
(Symmetry)
Rise/Fall Time
Integrated,
RMS
Icc
mA
Ohm
V
Voh
Vol
Tr/Tf
J
overall
At 50% Vcc
0.2Vcc to 0.8 Vcc;
F< 70 MHz
70 MHz<F< 125 MHz
Integrated from Phase
Noise, 12 KHz to 20
MHz , RMS
100Hz to 80KHz,RMS
50 KHz to 80 MHz
Random
period,
Accumul.
, pk-to-pk
Determin.
@ 10 Hz
@100 Hz
@1 KHz
@10KHz
@100KHz
@>1MHz
Over Temperature,
Calibration @Vcc/2,
Aging 10 years
Shock and vibration
Reflow
Vc to set the F at Fo; T,
Vcc, load – nominal, as
shipped
Over all conditions
@ Fmod < 10 KHz
At Vc = Vcc/2, -3dB
Pin 2 = High, or floating
0.9Vcc
45/55
50/50
3
2
0.1
0.1 Vcc
55/45
5
3
0.15
0.8
0.2
2.5
17
0
None
-85
-115
-145
-160
-165
-165
±1
±3
±2
±2
0V
0.4 Vcc
0.5 Vcc
Vcc
0.6 Vcc
%
ns
ps
ps
ps
ps
ps
ps
dBc
dBc/Hz
Jitter
@ 50
MHz
Wavecrest
characterized
Sub-harmonics
Phase Noise
£(Δf)
50 MHz,
Frequency Stability
ΔF/F
-80
-110
-140
-155
-160
-160
From ±5
ppm
Control Voltage Range
Setability
Absolute Pull Range
Input impedance
Modulation Bandwidth
Enable
Disable
Vc
Vcs
APR
Zin
V
V
±
10
50
20
Enabled
Tri-stated, output – high Z
ppm
KOhm
KHz
Pin 2 = Low
Note 1. All parameters, unless otherwise specified, are at nominal conditions, ie: T=25°C, Nominal Vcc & Nominal Load.
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
Data Sheet 0648B
Rev. J
CMOS/LVCMOS HF VCTCXO
AB-XC3XXX-X Series
Environmental and Mechanical Characteristics
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Hermetic Seal
Soldering conditions
see part # table
Per MIL-STD-202, Method 213, Cond. A
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
Leak rate less than 5x10-8 atm.cc/s of helium , crystal only.
See MAX reflow profile below; The device may be reflowed once. Reflowing upside down is not
allowed. NO CLEAN assembly is recommended

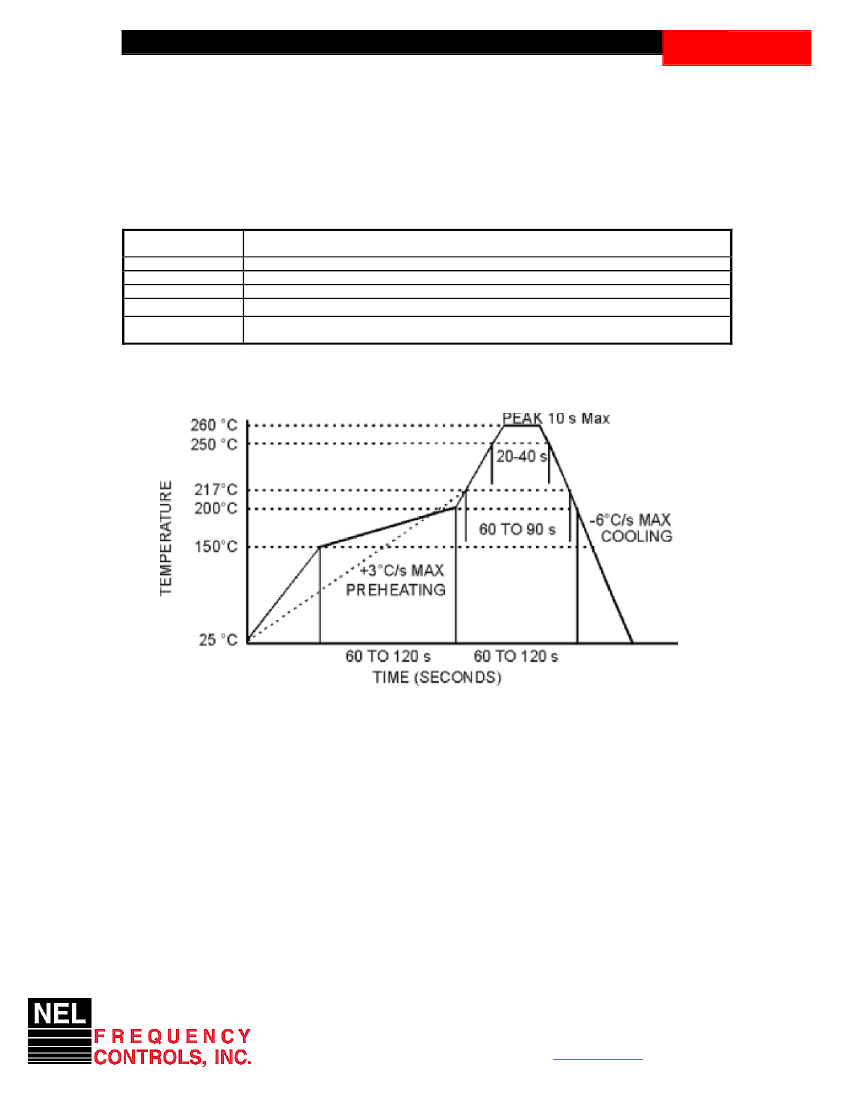

MAX Reflow Profile
The device may be reflowed once. Reflowing upside down is not allowed. NO CLEAN assembly is
recommended
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
