DFN4-HRFREQ1XB100 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFN4-HRFREQ1XB100

DFN4-HRFREQ1XB100: DescriptionHCMOS Output Clock Oscillator, 1MHz Min, 25MHz Max, DIL-8/4; CategoryPassive components oscillator; File Size161KB，2 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFN4-HRFREQ1XB100 Overview

HCMOS Output Clock Oscillator, 1MHz Min, 25MHz Max, DIL-8/4

DFN4-HRFREQ1XB100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
Other features	TIGHT SYMMETRY
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	DFN4-H
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	25 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	50 PF
physical size	12.7mm x 12.7mm x 6.0mm
longest rise time	10 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

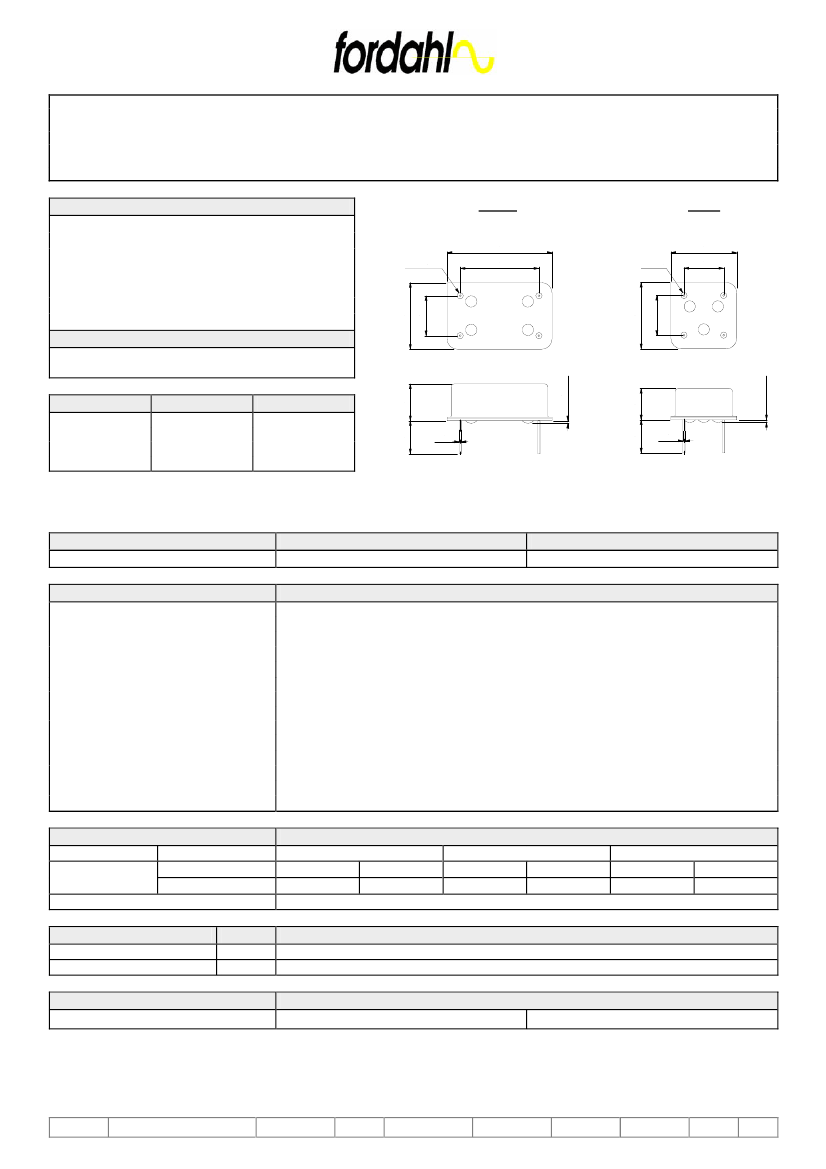

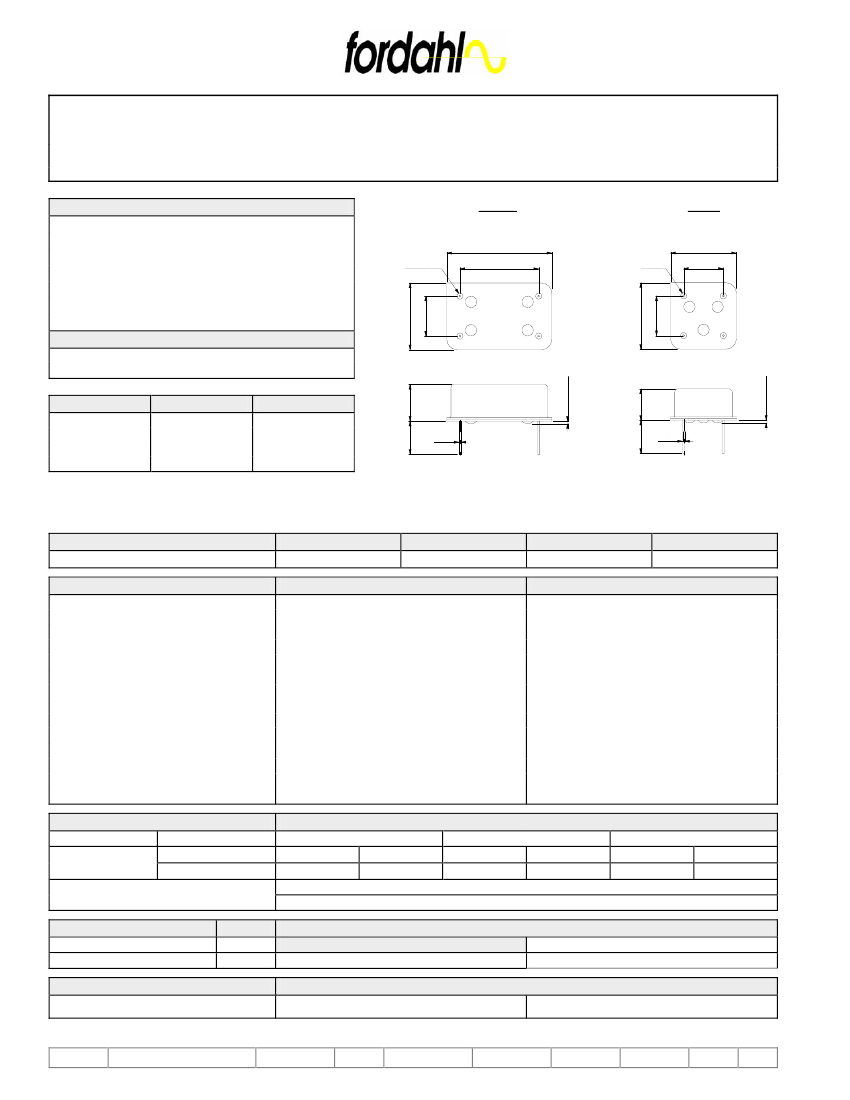

FREQUENCY CONTROL PRODUCTS

HCMOS & TTL COMPATIBLE CLOCK OSCILLATORS

DFN 14-HL & DFN 4-HL (3.3 V)

KEY FEATURES

1 to 100 MHz

3.3 V, HCMOS/TTL compatible output

Standard DIL 14 or DIL 8 packages

APPLICATIONS

Clocking

H±0.1

PIN 1

DFN 14

DFN 4

20.3±0.1

15.24

PIN 1

12.7±0.1

7.62

12.7±0.1

7.62

0.75±0.1

Function

NC/Enable

GND

Output

Vcc

DFN 14

DFN 4

6.3

6±0.1

0.45

H = 5.10 mm

TYPE

Frequency Range

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

≤

20 MHz

≤

50 MHz

> 50 MHz

DFN 14-HL

1 to 100 MHz

DFN 4-HL

1 to 100 MHz

3.3 V ± 5 %

≤

10 mA

≤

20 mA

≤

40 mA

HCMOS 50 pF up to 25 MHz or

15 pF > 25 MHz

40/60...60/40 % @ 50% level

10 to 90 %

≤

10 ns up to 25 MHz

≤

5 ns > 25MHz

≥

2.7 V/

≤

0.4 V

≤

10 ms @ 3.15 V

output load

duty cycle

rise/fall times

high/low levels

start up

FREQUENCY STABILITY

types

all types

temperature range

0 to 70°C

-40 to 85°C

stability [ ppm ] and temperature code

stability

code

stability

code

stability

code

XB25

XB50

XB100

≤

± 25

≤

± 50

≤

± 100

XE50

XE75

XE100

≤

± 50

≤

± 75

≤

± 100

stability includes calibration at 25°C, temperature, ageing, Vcc and load changes 1

yr.

OPTIONS

tight symmetry

tri-state output on pin 1

CODE

45/55...55/45 %

high or open = enable, low = high Z

ORDERING CODE

Example

type + option code + frequency + stability/temperature code

DFN 14-HLZ 16.000 MHz XE50

DFN 4-HL 65.536 MHz XB25

TYPE

DFN 14-HL & DFN 4-HL

REVISION

CHECKED

DATE

17.07.2003

PAGE

0.85±0.1
