CMD4D13NP-150MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CMD4D13NP-150MC

CMD4D13NP-150MC: Descriptioninductor 15uh 20% smd; CategoryPassive components inductor; File Size112KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CMD4D13NP-150MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMD4D13NP-150MC	-	-	View	Buy Now

CMD4D13NP-150MC Overview

inductor 15uh 20% smd

CMD4D13NP-150MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2316
Reach Compliance Code	unknown
Factory Lead Time	11 weeks
uppercase and lowercase codes	2316
structure	Unshielded
core material	Ferrite
DC Resistance	0.508 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CMD4D13
Number of functions	1
Number of terminals	4
Package height	1.45 mm
Package length	5.8 mm
Package form	SMT
Package width	4.1 mm
method of packing	Tape
Maximum rated current	0.45 A
series	CMD4D13
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

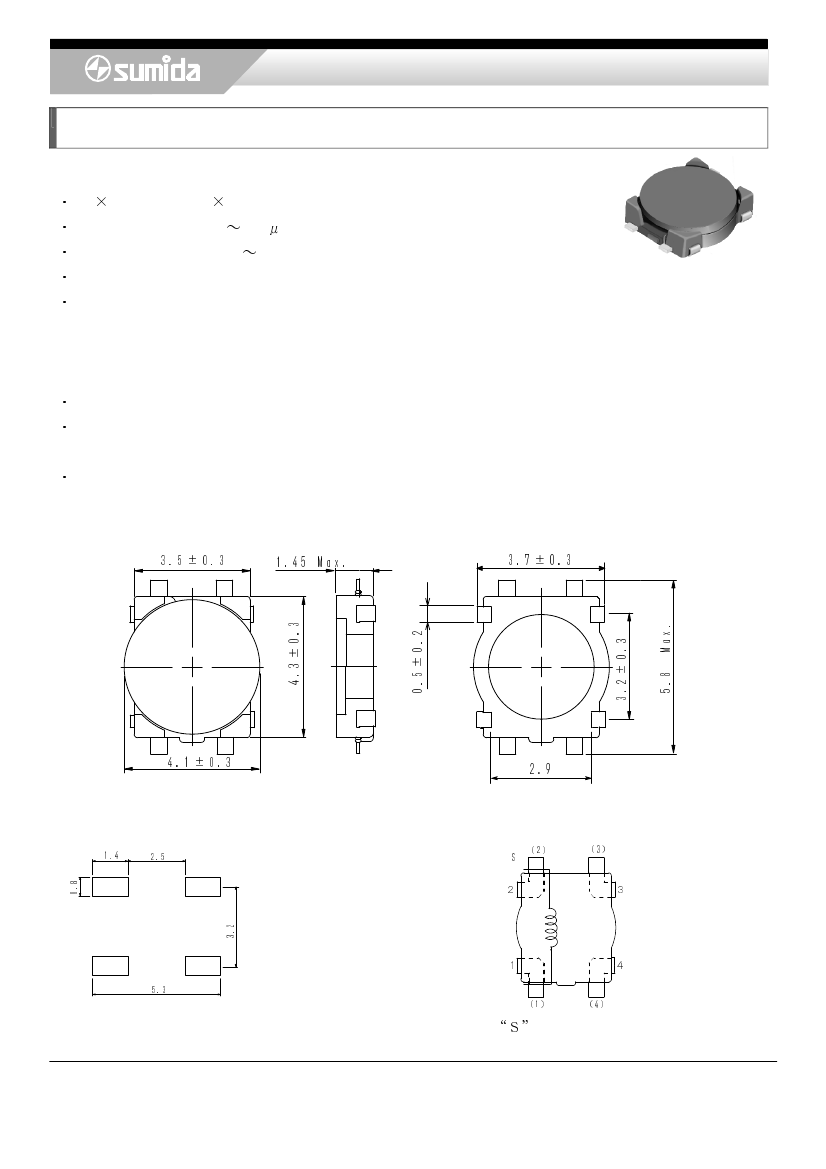

Power Transformers <SMD Type: CMD Series>

Type: CMD4D13

◆

Product Description

5.8 4.4 mm Max.(L W),1.45mm Max. Height.

Inductance Range: 3.3 150 H.

Rated current range: 130 850mA.

4 Terminal pins’ type gives a flexible design as inductors or transformers(SEPIC,ZETA circuit).

In addition to the standards versions used as power inductors shown here, custom designs as

transformers(SEPIC,ZETA circuit) and inductors are also available.

◆

Feature

Magnetically unshielded construction.

Ideally used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC Converter

inductors, specially suitable for White LED drive.

RoHS Compliance.

◆

Dimensions (mm)

3.0± 7.3

.xaM 54.1

3.0± 5.3

◆

Land Pattern (mm)

5.2

4.1

◆

Schematics(Bottom)

is winding start.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

４

３

)3 (

) 4(

9.2

)2 (

) 1(

”Ｓ“

１

２

μ ½

3.0± 1.4

3.5

・

× ・

・

1/2
