RWST
Vishay Sfernice
Fixed Wirewound High Power Vitreous Resistors
Electrical Traction Model
FEATURES
•
95 W to 800 W at 25 °C
•
NF C 93-214
•
RB 25 x 168, RB 30 x 250
•
Rugged construction for use in severe environmental
conditions
“CS” Type 1 Collars
•
Compliant to RoHS directive 2002/95/EC
The RWST vitreous wirewound high power resistors are known for their excellent reliability which has developed out of the
Vishay Sfernice experience over several decades in the field of high current applications.
Extremely severe conditions of use are encountered in electrical traction including repeated overloads. To withstand such
conditions the new RWST model is extremely rugged and is manufactured to a very carefully monitored process using the best
materials.
NF F 16101, 10/1988 and 16102, 04/1992: Not applicable (our parts are made of metallic and refractory materials).
NF C 93-214. Performances according to NF C 93-214.

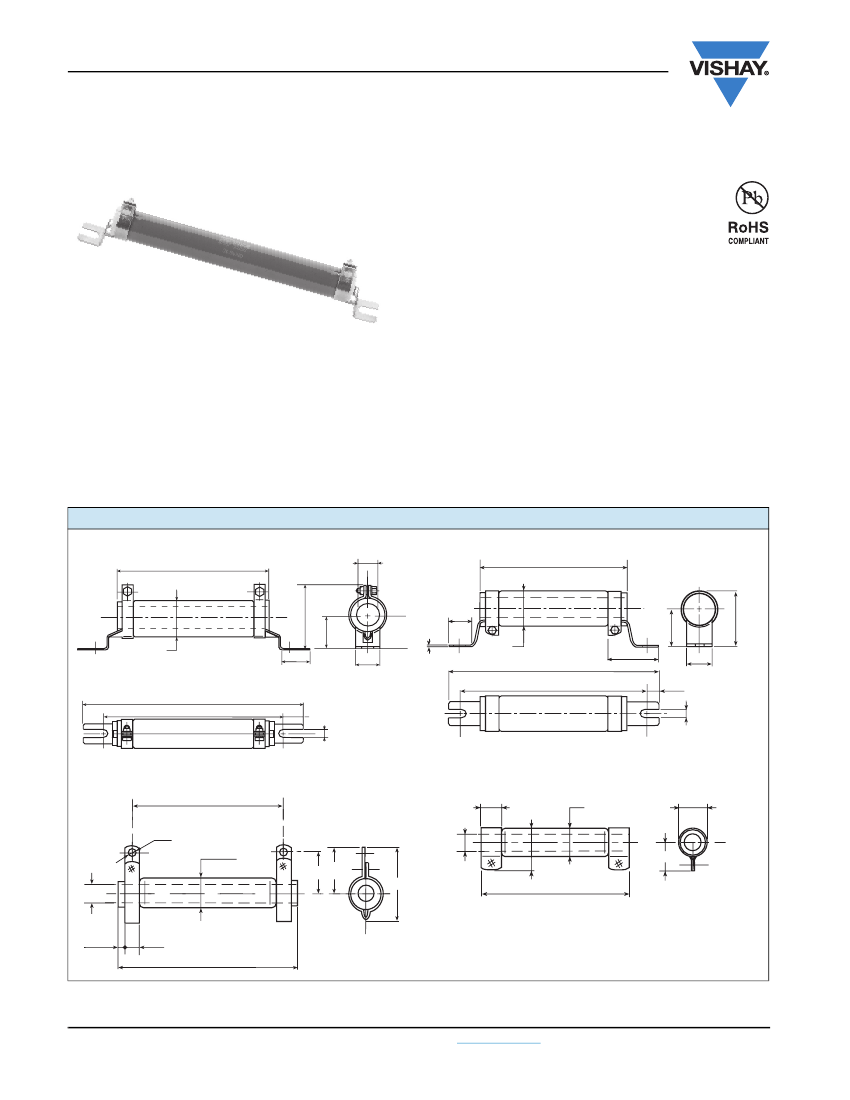

DIMENSIONS
in millimeters
STAINLESS STEEL 304 L COLLARS “CS” TYPE 1
A
ØC
STAINLESS STEEL 304 L COLLARS “CS” TYPE 2
A
D
E
ØB
26
F
3
23
E
ØB
58
G
H
15
F
D
G
H
15
J
J
WELDED STAINLESS STEEL 304 L COLLARS “AN”
N
WELDED STAINLESS STEEL 304 L BAND “B”
Q
ØC
ØB
R
ØU
ØB
K V
P
ØC
S
A
T
Z
L
A
www.vishay.com
112
For technical questions, contact:
sfer@vishay.com
Document Number: 50017
Revision: 12-May-09
RWST
Fixed Wirewound High Power Vitreous Resistors
Electrical Traction Model
DIMENSIONS
in millimeters
SERIES
RWST
25 x 138
RWST
25 x 168
RWST
30 x 250
RWST
40 x 370
RWST
50 x 373
SERIES
RWST
25 x 138
RWST
25 x 168
RWST
30 x 250
RWST
40 x 370
RWST
50 x 373
CONNECTIONS
AN-B CS type 1
AN-B CS type 1
AN-B CS type 1
AN CS type 2
AN CS type 2
CONNECTIONS
AN-B CS type 1
AN-B CS type 1
AN-B CS type 1
AN CS type 2
AN CS type 2
A±2
138
168
250
370
373
N±2
Ø B MAX.
28
28
33
45
53
P
Ø
C
MIN.
12
12
17
22
27.1
D
50 ± 1.5
50 ± 1.5
60 ± 1.5
69 max.
80 max.
E
27 ± 1
27 ± 1
30 ± 1
45 ± 1.5
51 ± 1.5
S
MAX.
38.5
38.5
43.5
-
-
F
± 0.5
24
24
25
30
30
T±1
23.5
23.5
26
-
-
G
- 4/+ 0
199
229
317
432
432
Ø
U
5.7
5.7
5.7
9.2
9.2
H
- 4/+ 0
169
199
287
405
405
V
33.5 ± 1
33.5 ± 1
36 ± 1
57 ± 1.5
63 ± 1.5
J
± 0.5
6.5
6.5
9
9
9
Z
6
6
5
10
11.5
K
28.5 ± 1
28.5 ± 1
31± 1
45 ± 1.5
51 ± 1.5
L + 0.5
+0
9
9
13
18
18
Vishay Sfernice
Q
R
- 0/+ 5 - 0.3/+ 0.9
15
15
18
-
-
26
26
31
-
-
AVERAGE UNIT
WEIGHT IN g
(CS collars)
225
250
445
1400
2200
117 ± 2 51.5 ± 1.5
147 ± 2
227 ± 2
50 ± 1.5
55 ± 1.5
332 ± 3 81.5 max.
332 ± 3 92.5 max.
MECHANICAL SPECIFICATIONS
Mechanical Protection
Resistive Element
Connections
AN Collar or B
Average Unit Weight
Temperature Limits
Climatic Category
Vitreous enamel
Ni-Cr wire
CS supporting collars
on request
225 g to 2200 g
- 55 °C + 450 °C
- 55 °C/+ 200 °C/56 days
ELECTRICAL SPECIFICATIONS
Resistance Range
Resistance Tolerance
Standard
Power Rating
Temperature Coefficient
Shelf Life
2.7
Ω
to 430 kΩ
(E12, E24 preferred series values)
±5%
95 W to 800 W at 25 °C
75 ppm/°C (typical)
0.1 % year (typical)
ENVIRONMENTAL SPECIFICATIONS
PERFORMANCE
TESTS
Short Time Overload
Climatic Sequence
Humidity
(Steady State)
Thermal Shock
Shock
Vibration
Terminal Strength
Load Life
AN
B
CONDITIONS
10
P
r
during 5 s
Voltage limited at < 5000 V
- 55 °C + 200 °C
56 days
95 % relative humidity
Load at 100 %
P
r
followed by cold
temperature exposure at - 55 °C/15'
Severity 50 A
9 shocks/each side
Severity 55B
Traction 40 Ncm
Torque 60 Ncm
90'/30' cycle
1000 h at
P
r
25 °C
REQUIREMENTS
2 % or 0.05
Ω
2 % or 0.05
Ω
Insulation resistance 100 MΩ
3 % or 0.05
Ω
Insulation resistance 100 MΩ
2 % or 0.05
Ω
1 % or 0.05
Ω
1 % or 0.05
Ω
1 % or 0.05
Ω
5%
TYPICAL VALUES AND DRIFTS
0.5 %
0.5 %
0.5 %
0.5 %
0.25 %
0.25 %
0.5 %
1000 h
5000 h
1%
2%
SPECIAL FEATURES
RWST STYLE
Designation NF C 93-214
Power Rating at 25 °C
Maximum Power Rating
at 25 °C
Ohmic Range (E12, E24 series)
Limiting Element Voltage
Critical Resistance
Document Number: 50017
Revision: 12-May-09
25 x 138
-
95 W
110 W
2.7
Ω
82 kΩ
1400 V
18 kΩ
2.7
Ω
25 x 168
RB 25 x 168
160 W
180 W
100 kΩ
1900 V
20 kΩ
4.7
Ω
30 x 250
RB 30 x 250
280 W
320 W
40 x 370
-
500 W
600 W
12
Ω
50 x 373
-
700 W
800 W
430 kΩ
5000 V
30 kΩ
220 kΩ 8.2
Ω
360 kΩ
3000 V
4500 V
30 kΩ
36 kΩ
For technical questions, contact:
sfer@vishay.com
www.vishay.com
113
RWST
Vishay Sfernice
Fixed Wirewound High Power Vitreous Resistors
Electrical Traction Model
NON INDUCTIVE WINDING
For high frequencies, low self induction resistors are available with special windings. RWSTNI designation.
MODEL AND STYLE
OHMIC RANGE
(E12 SERIES)
RWSTNI
25 x 138
22
Ω
2.5 kΩ
RWSTNI
25 x 168
22
Ω
4 kΩ
RWSTNI
30 x 250
120
Ω
6.8 kΩ
RWSTNI
40 x 370
120
Ω
8.2 kΩ
RWSTNI
50 x 373
150
Ω
8.2 kΩ
POWER RATING
100
TEMPERATURE RISE
HOT SPOT TEMPERATURE IN °C
400
RATED POWER IN %
75
300
50
200
25
100
0
0
10
100
1000
0
65
130
195
260
325
390
455
AMBIENT TEMPERATURE IN °C
RATED POWER IN W
MARKING
Vishay Sfernice trademark, model, style, nominal resistance
(in
Ω),
tolerance (in %), manufacturing date.
PACKAGING
Box: Fixed quantity depending on size and connections
ORDERING INFORMATION
RWST
MODEL
25 x 138
STYLE
NON-INDUCTIVE
WINDING
Optional
SPECIAL
DESIGN
Optional
B
CONNECTIONS
56U
OHMIC VALUE
Custom items are
subject to extra-charge
and min. order. Please
see price list.
±5
%
B06
e
LEAD
(Pb)-FREE
TOLERANCE PACKAGING
GLOBAL PART NUMBER INFORMATION
R
W
S
T
2
5
1
6
8
C
4
7
0
0
J
B
0
4
GLOBAL
MODEL
RWST
SIZE
25 x 138
25 x 168
30 x 250
40 x 370
50 x 373
LEADS
A
= AN
B
=B
C
= CS
F
= Faston
OPTION
N
= Non
inductive
winding
OHMIC VALUE
The first three digits are
significant figures and the
last digit specifies the
number of zeros to follow.
R designates decimal
point.
4700
= 470
Ω
48R8
= 48.7
Ω
R010
= 0.01
Ω
R470
= 0.47
Ω
TOLERANCE
J
= 5.0 %
K
= 10 %
PACKAGING
Box:
BO1
BO2
BO2NA
BO4
BO4NA
BO6
BO6NA
www.vishay.com
114
For technical questions, contact:
sfer@vishay.com
