Data sheet
Field bus components
FBCon DP M12 1way
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

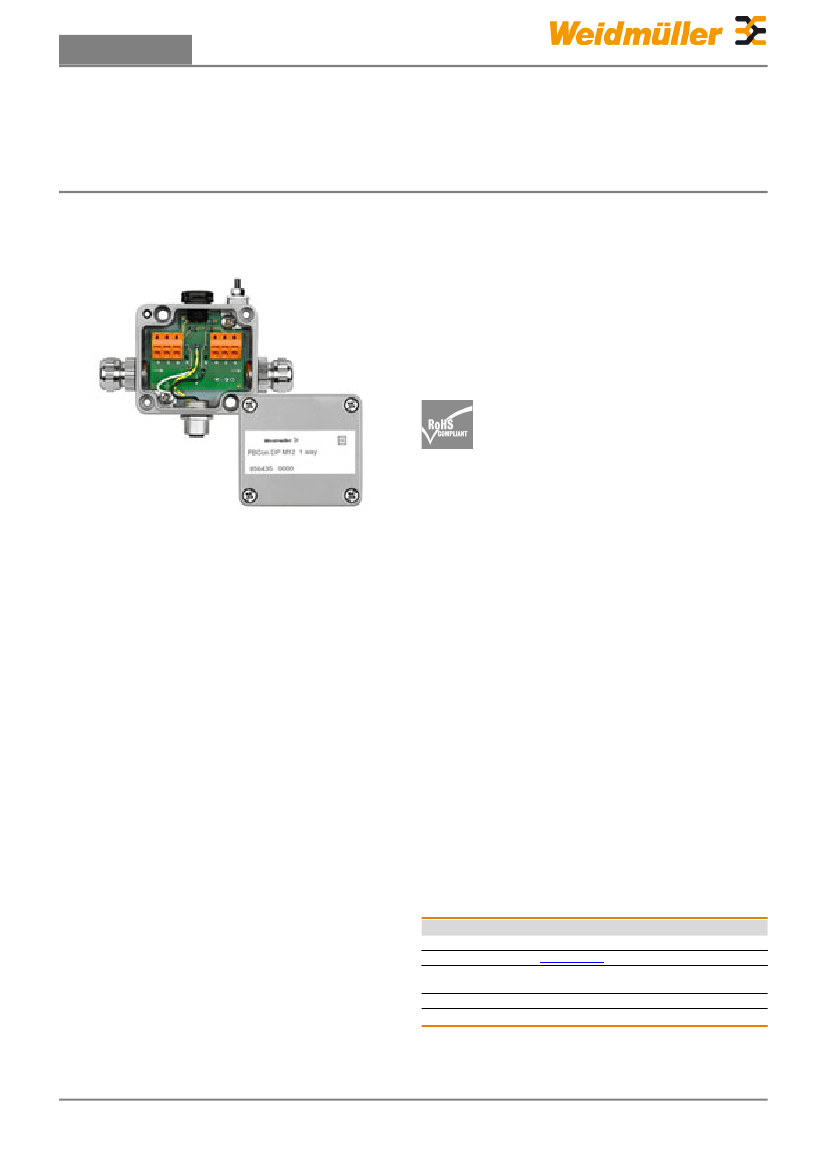

The FBCon DP fieldbus distributors are used to couple
1 to 8 actuators, sensors or remote I/Os to a PROFIBUS
network.
The branches (T-pieces) connect the individual bus
components to the bus cable. The length of the branch
cable depends on the transmission rate and should be as
short as possible.
The total of all branch lengths for transmission rates up to
1.5 MBaud may not exceed 6.6 m.
The trunk line is run over EMC cable glands into an
aluminium / stainless steel housing and connected using
tension-clamp terminals.
The branch line to the device is connected using a B-
coded M12 socket or an EMC cable gland.
Terminating resistors must be wired onto the start and
end of the PROFIBUS-DP network. The Terminator
modules can take care of this task.
The 24 V DC power supply is introduced via the right-
hand cable gland. The housing features a pressure-
compensation mechanism that counters the effects of
climatic fluctuations.
The guidelines issued by the PROFIBUS user organisation
must be observed during installation.
The distributors have the following characteristics:
• Tension-clamp connection system
• EMC cable gland
• M12 plug-in connectors
Creation date January 3, 2014 6:58:38 PM CET
• External earthing contact
• Interruption-free bus operation
• Pressure-equalising element
• IP 66 protection class
• Stainless steel versions
• PROFIBUS-DP compatible
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
FBCon DP M12 1way
8564350000
Standard distributor without bus termination, 1-
way distributor, IP 66
4032248245178
1 pc(s).
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
Field bus components
FBCon DP M12 1way
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
64 mm
36 mm
Width
Net weight
Dimensions and weights
Length
Height
58 mm
249 g
Temperatures
Operating temperature
Storage temperature
-40 °C...+80 °C
-40 °C...+80 °C
Ambient temperature
-40 °C...+80 °C
Technical data
Cable gland
Connection type PE
Type of mounting
branch line M12
M12 spur line
surface-mounted
Colour
Protection degree
Version
Grey
IP 66
Aluminium enclosure
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC000214
27-25-02-01
27-24-26-08
UNSPSC
eClass 6.2
26-12-16-03
27-24-26-08
Product information
Descriptive text ordering data
Descriptive text technical data
CG = brass cable gland
PCG = plastic cable gland
FBcon products cannot be used in strongly saline environment.
Approvals
Approvals
ROHS
Conform
Downloads
Declaration of Conformity
K328_01_10.pdf
Creation date January 3, 2014 6:58:38 PM CET
Catalogue status / We reserve the right to make technical changes.
2
