Extension module - RAD-OUT-4A-I - 2867128
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Analog extension module with 4 analog current outputs 4 mA ... 20mA
Packing unit
11
177.8 GRM
85177090
Canada
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Width
Height
Depth
22.5 mm
99 mm
114.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Degree of protection
-20 °C ... 65 °C
-40 °C ... 85 °C
IP20
Analog output
Output name
Load/output load current output
Current output
700 Ω (at U
B
= 24 V, R
B
= [U
B
-10 V] / 20 mA)
Supply
Supply voltage range
9 V DC ... 30 V DC (via bus foot)
28.10.2013 Page 1 / 3
https://www.phoenixcontact.com/us/products/2867128
Extension module - RAD-OUT-4A-I - 2867128
Technical data
Supply
Typical current consumption
Max. current consumption
100 mA
130 mA
General
Mounting position
Assembly instructions
Housing material
Conformance
ATEX
IECEx
UL, USA / Canada
Any
on standard DIN rail NS 35 in accordance with EN 60715
Polyamide PA non-reinforced
CE-compliant
II 3 G EEx nL IIC
Ex nL IIC
Class I, Div. 2, Groups A, B, C, D
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Connection method
Stripping length
Screw thread
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
14
Screw connection
8 mm
M3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250312
27250312
27242208
27242208
27242208
27242208
27242208
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
EC000310
EC000310
EC000310
28.10.2013 Page 2 / 3
https://www.phoenixcontact.com/us/products/2867128
Extension module - RAD-OUT-4A-I - 2867128
Classifications
ETIM
ETIM 5.0
EC000310
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211506
43223108
39121008
43223108
43223108
Drawings

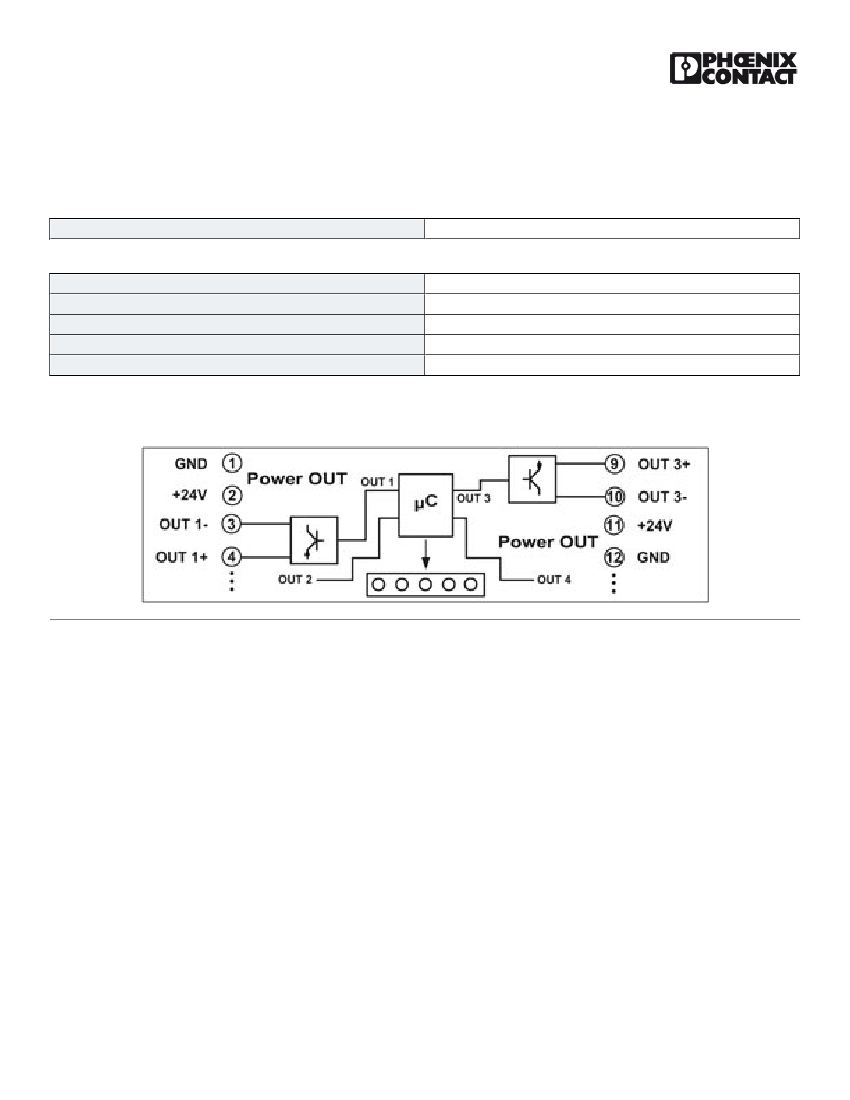

Block diagram
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
28.10.2013 Page 3 / 3
