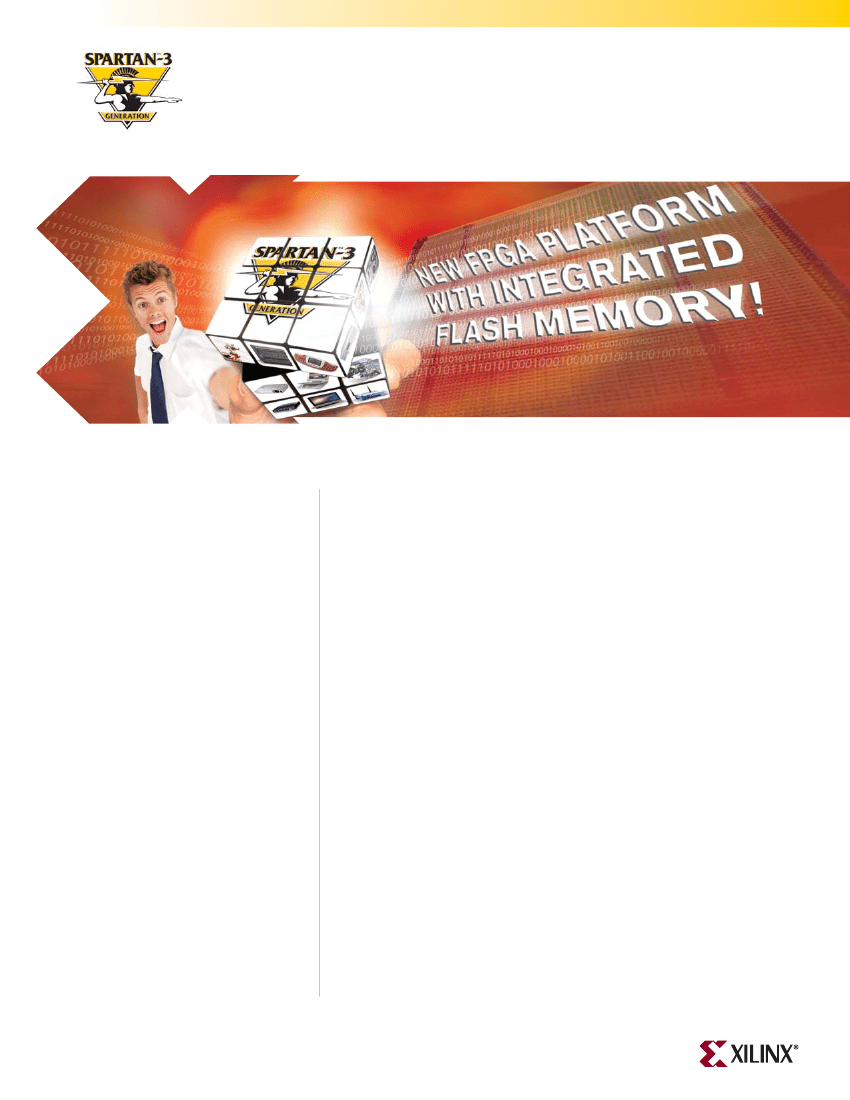

SPARTAN-3 GENERATION FPGAs
Xilinx Spartan -3AN FPGAs
Non-Volatile Secure FPGAs for Highest System Integration
™
The System Design Dilemma
•
System Designers today face a
common challenge – how to benefit
from inherent security, board-space
savings and ease-of-configuration of
non-volatile FPGAs while still taking
advantage of the extensive features
and high performance available only
in leading SRAM-based FPGAs
The Xilinx Spartan-3AN
Platform Solution
•
The Spartan
™
-3AN platform offers
uncompromised SRAM-based FPGA
with leading-edge Flash technology
•
Based on the industry’s most success-
ful, cost-effective, and production-
proven 90nm technology, the platform
integrates highly advanced on-chip
security features along with the
industry’s largest user Flash
Spartan-3AN Platform Key Features
Delivering the Best of Both Worlds
The non-volatile Spartan-3AN platform provides the best of both worlds – low cost
and extensive features of leading-edge SRAM-based FPGAs with board-space savings
and ease-of-configuration of non-volatile FPGAs. With highly advanced on-chip
security features, the Spartan-3AN platform provides a robust, cost-effective solution
to help prevent reverse-engineering, cloning, and overbuilding. Furthermore,
designers can achieve superior system flexibility with up to 11Mb of integrated
user Flash which can be used for both device configuration as well as a valuable
system resource.
The Complete Low-Cost FPGA Platform
The Spartan-3AN platform is a highly integrated device targeted for the cost-
conscious, high-volume market. It is a full-feature platform of five devices with
system gates ranging from 50K to 1.4M gates, and I/Os ranging from 108 to 502
I/Os, with density migration, and pin compatible with the Spartan-3A platform.
Spartan-3AN FPGAs support up to 576 Kbits of fast block RAM with byte-write
enable, and up to 176 Kbits of distributed RAM. There are built-in multipliers
for efficient DSP implementation and Digital Clock Managers (DCMs) for system
level clock management functions. Based on production-proven 90nm technology,
Spartan-3AN FPGAs provide exceptional performance while still being extremely
cost-effective.
Industry’s first 90nm FPGA with Electronic Serial Numbering
Each FPGA includes a permanent unique Device DNA serial number and Factory Flash ID.
Designers have complete flexibility in implementing highly customized algorithms for both
authentication, as well as non-authentication responses such as limited-functionality,
time-bomb, and self-destruct. This can significantly deter reverse-engineering, cloning,
and overbuilding.
Corporate Headquarters
Xilinx, Inc.
2100 Logic Drive
San Jose, CA 95124
Tel: 408-559-7778
Fax: 408-559-7114
Web: www.xilinx.com
Europe Headquarters
Xilinx Ireland
One Logic Drive
Citywest Business Campus
Saggart, County Dublin
Ireland
Tel: +353-1-464-0311
Fax: +353-1-464-0324
Web: www.xilinx.com
Japan
Xilinx KK
Art Village Osaki Central Tower 4F
1-2-2 Osaki, Shinagawa-ku
Tokyo 141-0032 Japan
Industry’s Largest On-Chip User Flash
The new Spartan-3AN platform boasts the industry’s largest on-chip user flash with a
capacity of up to 11Mb. It provides simple and secure embedded application storage,
while also enabling advanced real-time control with fine-grained protection, lockdown
and erase features.
Widest Support for I/O Standards
The Spartan-3AN FPGA is especially suitable for display devices supporting both TMDS and
PPDS standards. With support for 26 popular single-ended and differential signaling standards
including LVDS, RSDS, SSTL3 Class I & II, full hot-swap compliance, and pre-engineered
interface IP solutions such as PCI, PCI Express, USB, Firewire, CAN, SPI, and I2C, the
Spartan-3AN platform provides an industry-leading connectivity solution.
Spartan-3AN FPGA Platform
Device
System Gates
Logic Cells
Dedicated Multipliers
Block RAM Blocks
Block RAM Bits
Distributed RAM Bits
Flash Size Bits
User Flash Bits
DCMs
I/O Standards
Max Differential I/O
Max Single Ended I/O
Device
TQ144 20 x 20 mm
FT256 17 x 17 mm
FG400 21 x 21 mm
FG484 23 x 23 mm
FG676 27 x 27 mm
* Spartan-3AN platform is pin compatible with Spartan-3A platform supporting platform migration
XC3S50AN
50K
1,584
3
3
54K
11K
1M
627K
2
26
50
108
XC3S50AN
108
XC3S200AN
200K
4,032
16
16
288K
28K
4M
2M
4
26
90
195
XC3S200AN
195
XC3S400AN
400K
8,064
20
20
360K
56K
4M
2M
4
26
142
311
XC3S400AN
XC3S700AN
700K
13,248
20
20
360K
92K
8M
5M
8
26
165
372
XC3S700AN
XC3S1400AN
1400K
25,344
32
32
576K
176K
16M
11M
8
26
227
502
XC3S1400AN
Zip: 141-0032
Phone +81-36744-7777
Web: japan.xilinx.com
Asia Pacific Pte. Ltd.
Xilinx, Asia Pacific
No. 3 Changi Business Park Vista, #04-01
Singapore 486051
Tel: (65) 6544-8999
Fax: (65) 6789-8886
Web: www.xilinx.com
Package and I/O Offerings
311
372
502
Flexible Power-Management Modes
The “Suspend” Mode in Spartan-3AN FPGAs provides a very flexible and effective way to
preserve power. In this mode, the total FPGA power is reduced by more than 40%. The
configuration data as well as flip-flop and RAM values are also maintained. In addition, it
includes a fast wake-up mechanism and system level synchronization across time domains.
Take the Next Step
Visit our website
www.xilinx.com/spartan3an
or call your local sale office or distributor for
more information about Spartan-3AN FPGAs. To start your design immediately, download
your free ISE WebPACK
TM
design tools at
www.xilinx.com/ise.
To begin evaluating Spartan-3AN
FPGAs, order your hardware development board at
www.xilinx.com/s3anstarter
