MIL-PRF-39014/011540: DescriptionCeramic Capacitor, Ceramic,; CategoryPassive components capacitor; File Size310KB，4 Pages; ManufacturerAVX

Download Datasheet Parametric View All

MIL-PRF-39014/011540 Overview

Ceramic Capacitor, Ceramic,

MIL-PRF-39014/011540 Parametric

Parameter Name	Attribute value
Objectid	7042718198
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.5
capacitance	0.018 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	4.83 mm
JESD-609 code	e0
length	4.83 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-39014/01
surface mount	NO
Temperature characteristic code	BX
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	2.29 mm

Preview

Download Datasheet

View All

MILITARY

MIL-PRF-39014

Radial Leads

HOW TO ORDER

Military Type Designation: Styles CKR04, CKR05, CKR06, CKR08

Dash Number Option:

MIL-PRF-39014/01 (Appropriate Dash Number)

CKR05

Style

CK = General purpose,

ceramic dielectric,

fixed capacitors

R = Established

Reliability Parts

05 = Remaining two

numbers identify

shape and

dimension

Voltage-

Temperature Limits

First letter identifies

temperature range.

B = -55ºC to +125ºC

Second letter identifies

voltage-temperature coefficient.

Capacitance Change

with Reference to 25°C

Second

Rated

Letter Voltage Voltage

+15, -15% +15, -25%

104

Capacitance

First two digits are the significant

figures of capacitance. Third digit

indicates the additional number

of zeros. For example, order

100,000 pF as 104. (For values

below 10pF use “R” in place of

decimal point, e.g., 1R4 =

1.4pF.)

Capacitance

Tolerance

K = ±10%

M = ±20%

Military

Failure Rate

(V)

Standoff

Option

M = 1% per 1000 hours

To order standoff

P = 0.1% per 1000 hours

option, place “V” at

R = 0.01% per 1000 hours

the end of the part

S = 0.001% per 1000 hours

number.

Note:

Example:

AVX reserves the right to substitute CKR05BX104KSV

a lower failure rate part per MIL-

PRF-39014. Substitutability for

failure rate levels shall be as follows:

Will Replace

Failure Rate Level

R, P, M, L

P, M, L

M,L

Failure Rate Level

S (STD) (X-ray)

R (STD) (No X-ray)

Not RoHS Compliant

PACKAGING REQUIREMENTS

Packaging: 100 Pcs/bag; Radial Tape and Reel Packaging

available upon request (2500 pcs./reel).

MARKING RADIAL LEAD

Front

CKR04/CKR05

Abb. Military Part Number

Military Slash Number

Military Dash Number

Back

J for JAN

Mfg. I.D. Symbol

Date Code

Lot Code

Date Code

Lot Code

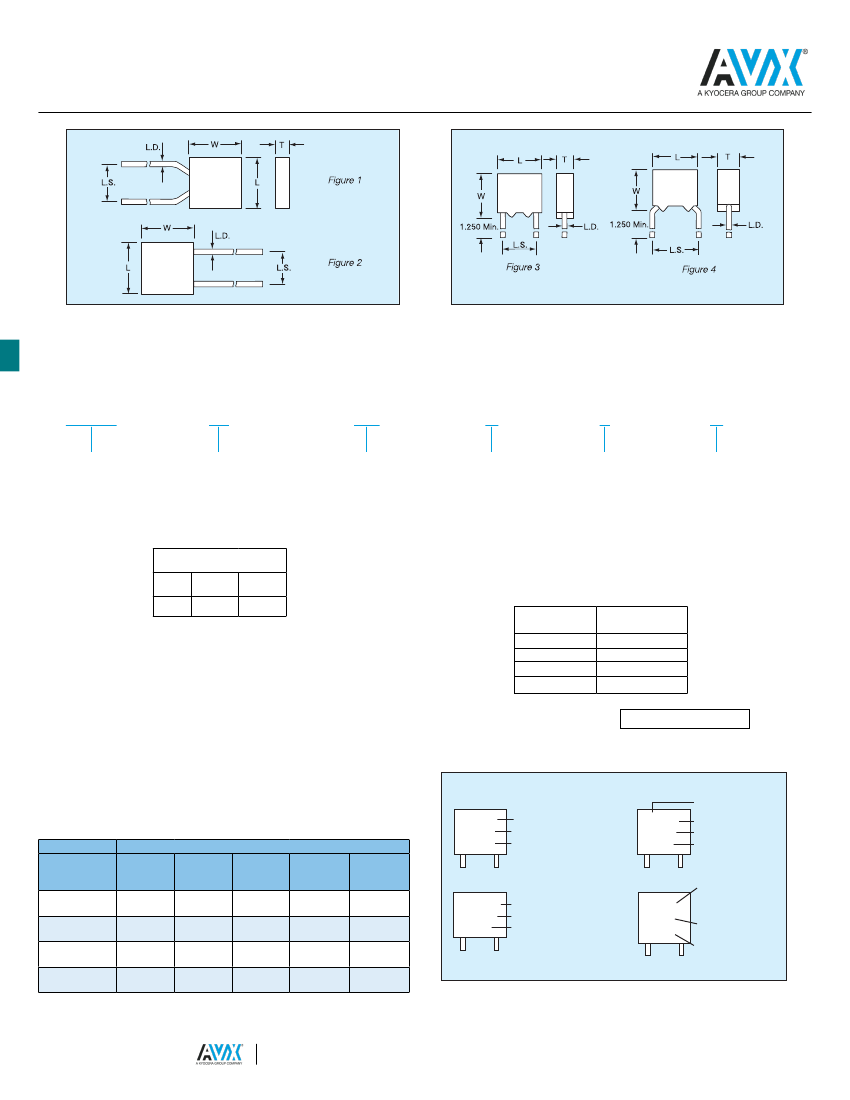

SIZE SPECIFICATIONS

millimeters (Inches)

Per Mil Spec

MIL-PRF-39014

CKR04

(Fig. 2)

CKR05

(Fig. 1, 4)

CKR06

(Fig. 2, 3)

CKR08

(Fig. 2)

Length

(L)

4.83±.25

(.190±.010)

4.83±.25

(.190±.010)

7.37±.25

(.290±.010)

7.37±.25

(.290±.010)

Width

(W)

4.83±.25

(.190±.010)

4.83±.25

(.190±.010)

7.37±.25

(.290±.010)

7.37±.25

(.290±.010)

Case Size

Thickness

(T)

2.29±.25

(.090±.010)

2.29±.25

(.090±.010)

2.29±.25

(.090±.010)

3.68±.38

(.145±.015)

Lead

Spacing

(L.S.)

2.54±.38

(.100±.015)

5.08±.38

(.200±.015)

5.08±.38

(.200±.015)

5.08±.38

(.200±.015)

Lead

Diameter

(L.D.)

.64±.05

(.025±.002)

.64±.05

(.025±.002)

.64±.05

(.025±.002)

.64±.05

(.025±.002)

M390

14/01

1595

J AVX

0810

CKR06/CKR08

M39014

2-1350

AVX

Abb. Military Part Number

Military Slash/Dash Number

Mfg. I.D. Symbol

0810A

J 50V

105K

J for JAN

Voltage Rating

Capacitance Value

(3 digit Code)

& Cap. Tol.

Only CKR05 and CKR06 can be offered on T&R

The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or

available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.

062821
