CFPC-100-S113-10-VR-GD1-TB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CFPC-100-S113-10-VR-GD1-TB

Preview

CFPC-100-S113-10-VR-GD1-TB: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CFPC-100-S113-10-VR-GD1-TB Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

CFPC-100-S113-10-VR-GD1-TB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166818880
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7
Other features	ROHS COMPLIANT
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.161 inch
body length	0.63 inch
Body/casing type	SOCKET
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
IEC compliance	NO
maximum insertion force	ZIF N
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.2606 mm
Plating thickness	1u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

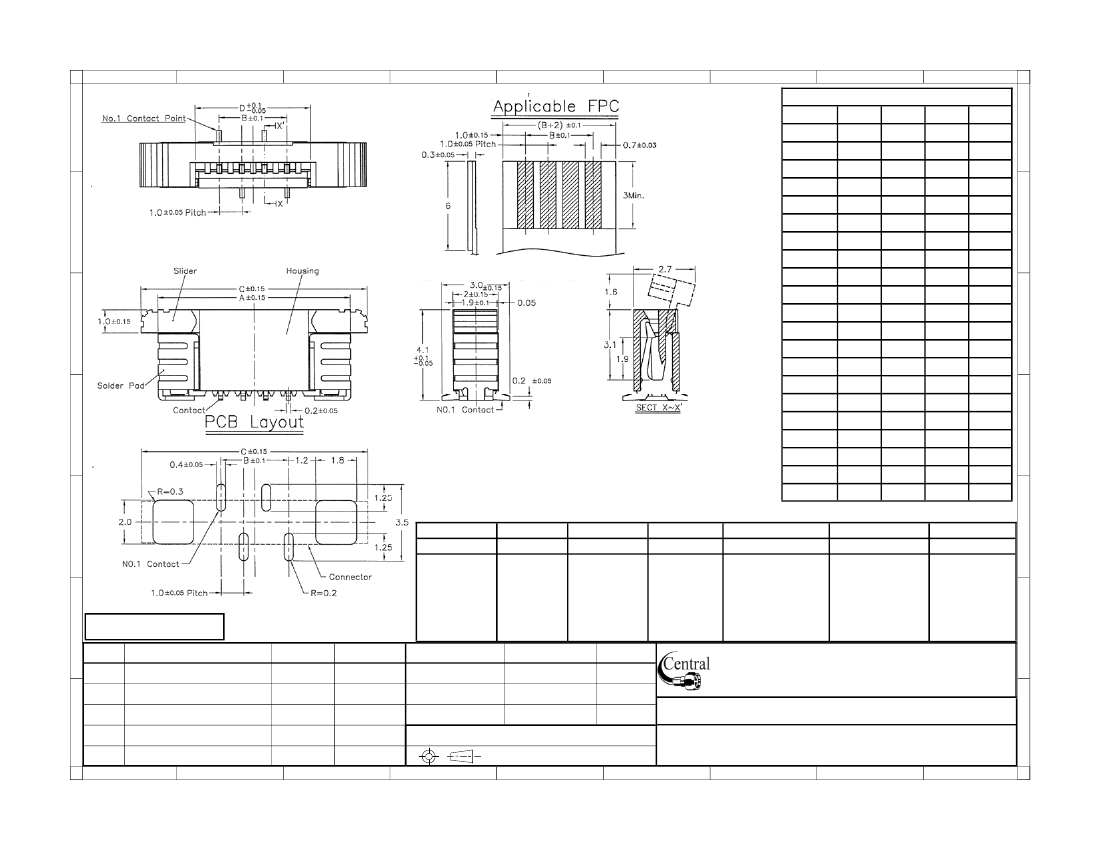

Dimensions

Contacts

A

B

C

4

8.5

3

10

5

9.5

4

11

6

10.5

5

12

7

11.5

6

13

8

12.5

7

14

9

13.5

8

15

10

14.5

9

16

11

15.5

10

17

12

16.5

11

18

13

17.5

12

19

14

18.5

13

20

15

19.5

14

21

16

20.5

15

22

17

21.5

16

23

18

22.5

17

24

19

23.5

18

25

20

24.5

19

26

21

25.5

20

27

22

26.5

21

28

23

27.5

22

29

24

28.5

23

30

Series

Pitch

Type

Contacts

CFPC

XXX

S113

XX

FPC Connector 050=0.50mm S113 ZIF Type 4-24 see chart

030=0.30mm

100=1.00mm

125=1.25mm

Style

XX

R=Right Angle

V=Vertical

VR=Vertical Reverse

Pins

U=Upper Contacts

B=Bottom Contacts

D

5.1

6.1

7.1

8.1

9.1

10.1

11.1

12.1

13.1

14.1

15.1

16.1

17.1

18.1

19.1

20.1

21.1

22.1

23.1

24.1

25.1

A

B

C

D

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

E

Plating

Options

XX

TN=Tin over nickel [blank]=None

GD1=Gold 1u” over TR=Tape & Reel

nickel

TB=Tube

GD3=Gold 3u” over

nickel

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CFPC-100-S113-XX-VR-XX-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description:1.0mm Pitch FPC/FFC Connector
