S2010CKX0R0255G80 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> S2010CKX0R0255G80

S2010CKX0R0255G80: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 0.0255ohm, 2% +/-Tol, 800ppm/Cel, Surface Mount, 2010, CHIP; CategoryPassive components The resistor; File Size90KB，1 Pages; ManufacturerState of the Art Inc.

Download Datasheet Parametric View All

S2010CKX0R0255G80 Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 0.0255ohm, 2% +/-Tol, 800ppm/Cel, Surface Mount, 2010, CHIP

S2010CKX0R0255G80 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1892102967
package instruction	CHIP
Reach Compliance Code	not_compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	6.55
JESD-609 code	e0
Manufacturer's serial number	S2010
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK; TR; WAFFLE PACK
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	0.0255 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	800 ppm/°C
Terminal surface	Tin/Lead (Sn60Pb40) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%

Preview

Download Datasheet

View All

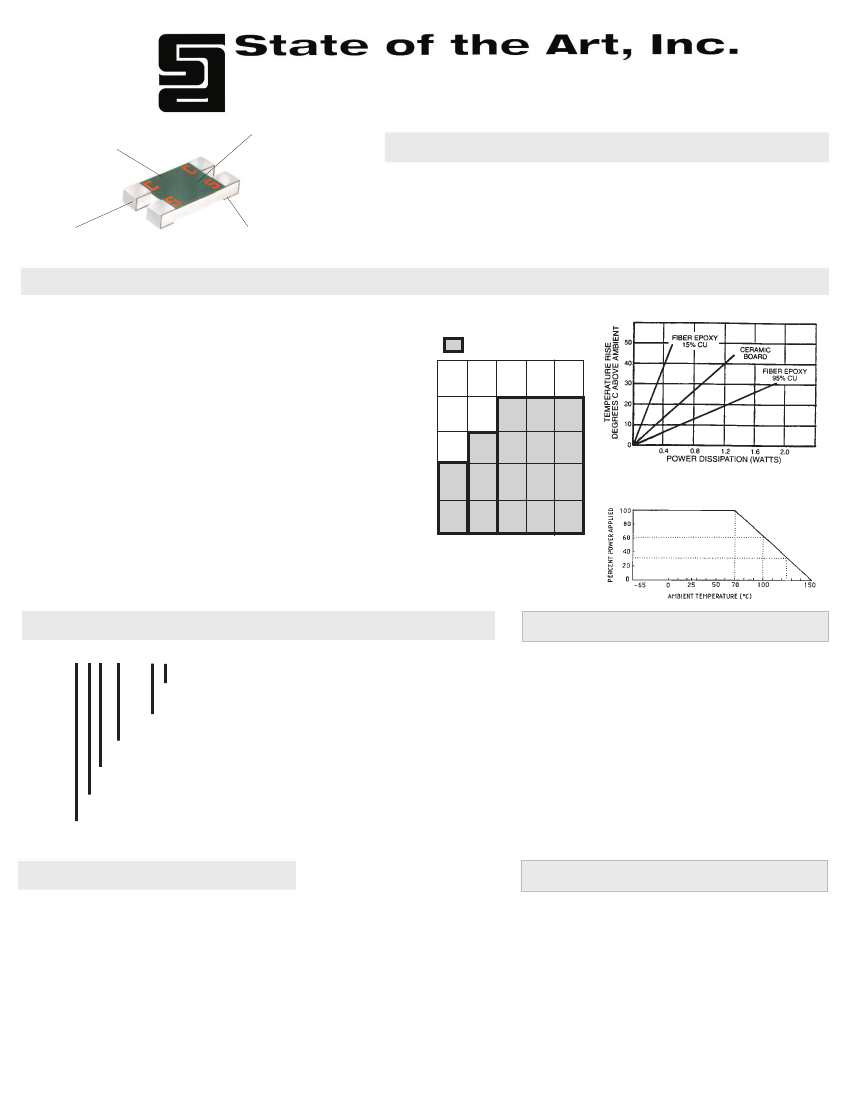

2010 size, Surface Mount, 4-Terminal Kelvin

GLASS

PASSIVATION

THICK FILM

RESISTOR

ELEMENT

Current Sense Chip Resistor

FEATURES

• Tolerances to 1%

• Operating temperature range :

-55

C to +150

• Pretinned (Sn60) nickel barrier

terminations

WRAPAROUND

PRETINNED

TERMINATIONS

4-TERMINAL DESIGN

• Ideal for current sensing

• Maufactured using the same process as

our MIL-PRF-55342 "S"

level qualified chips

• Suitable for solder reflow, vapor

phase, or wave solder attachment

PERFORMANCE CHARACTERISTICS

Resistance Range

Tolerances

Maximum Power

Maximum Voltage

0.020 Ohms -1 Ohm

1%, 2%, 5%, 10%, 20%

1000 mW

150 Volts

RESISTANCE TABLE

POWER DISSIPATION

Available Range

0.02

0.05

0.10

1.00

TCR (-55 to +125

C in ppm/

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Bonding Exposure

Moisture Resistance

High Temperature Exposure

*Typical resistance change.

Test methods are per MIL-PRF-55342.

< 600 ppm

±0.03%

±0.02%

±0.03%

±0.05%

Resistance (ohms)

ENVIRONMENTAL PERFORMANCE *

POWER DERATING

10%

20%

Tolerance

PART NUMBERING

S2010CKX0R02 J 80 (others available)

TCR

80: 800PPM (others available)

TOLERANCES

F: 1% G: 2% J: 5% K: 10% M: 20%

RESISTANCE VALUE

Value in ohms. The letter "R" is used to represent the decimal.

TERMINATION FINISH

Sn60 over nickel barrier

PRODUCT CODE

Kelvin resistor

TERMINATION STYLE

Dual wrapaound

MECHANICAL

INCHES

MILIMETERS

Length

Width

Thickness

Top Term

Bottom Term

Term Width

Gap

Approx. Weight

.200 (.198 -.208)

.100 (.098 -.106)

.025 (.023 -.033)

.026 (.021 -.031)

.040 (.036 -.044)

.142 (.138 -.146)

.0323 grams

5.08

2.54

0.64

0.66

1.02

3.61

(5.03 - 5.28)

(2.49 - 2.69)

(0.58 - 0.84)

(0.53 - 0.79)

(0.91 - 1.12)

(3.51 - 3.71)

Solderability: Excellent. Solder coating compatible with

Sn60, 62 or 63 solders, provides good wetting with all

types of solder attachment. All product is tested IAW Mil-

Std-202, method 208.

PACKAGING

Three packaging options are available:

• Bulk Packaging - (1400 per Bag Max.)

• Waffle Pack - (60 per Tray Max.)

• Tape & Reel - (4000 per Reel Max.)

OPTIONS

SOTA offers a full line of component parts in the 2010 size

including Military (MIL-PRF-55342 "S" level), High-

Reliability (customer specified testing), and commercial

grade. Available options are epoxy bondable and wire

bondable terminations, custom part marking, and

untrimmed resistors.

STATE OF THE ART, INC.

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004 Fax (814) 355-2714

Toll Free 1-800-458-3401

02/23/06

Where Quality Isn't a Goal...It's Our Tradition
