MPH2-20-U-PP-SMT datasheet, PDF

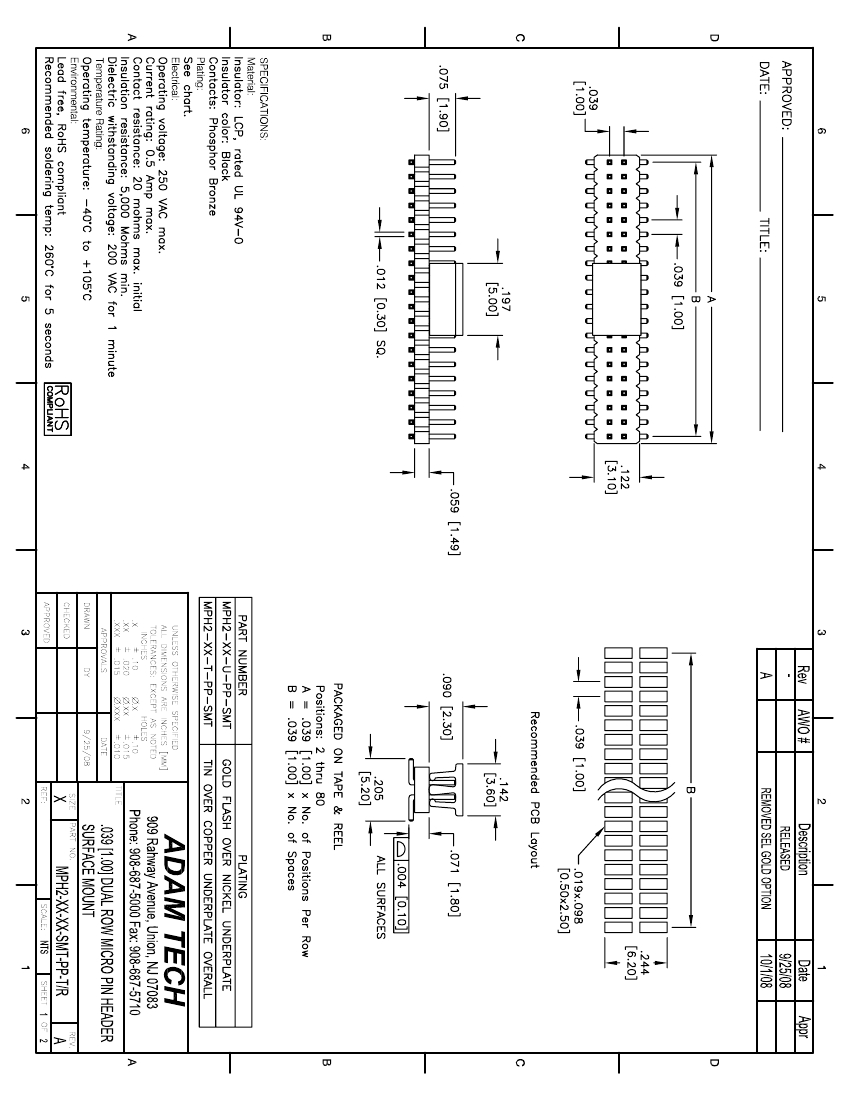

MPH2-20-U-PP-SMT: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator,; CategoryThe connector The connector; File Size107KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric View All

MPH2-20-U-PP-SMT Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7013968654
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
body width	0.122 inch
subject depth	0.071 inch
body length	0.39 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
