EMA-1H

Description
0.5MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.5dB CONVERSION LOSS-MAX, R-1, 8 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size34KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

EMA-1H Overview

0.5MHz - 500MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 8.5dB CONVERSION LOSS-MAX, R-1, 8 PIN

EMA-1H Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
Characteristic impedance50 Ω
structureCOMPONENT
Maximum frequency conversion loss8.5 dB
Maximum input power (CW)23 dBm
Maximum operating frequency500 MHz
Minimum operating frequency0.5 MHz
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesDOUBLE BALANCED
Base Number Matches1

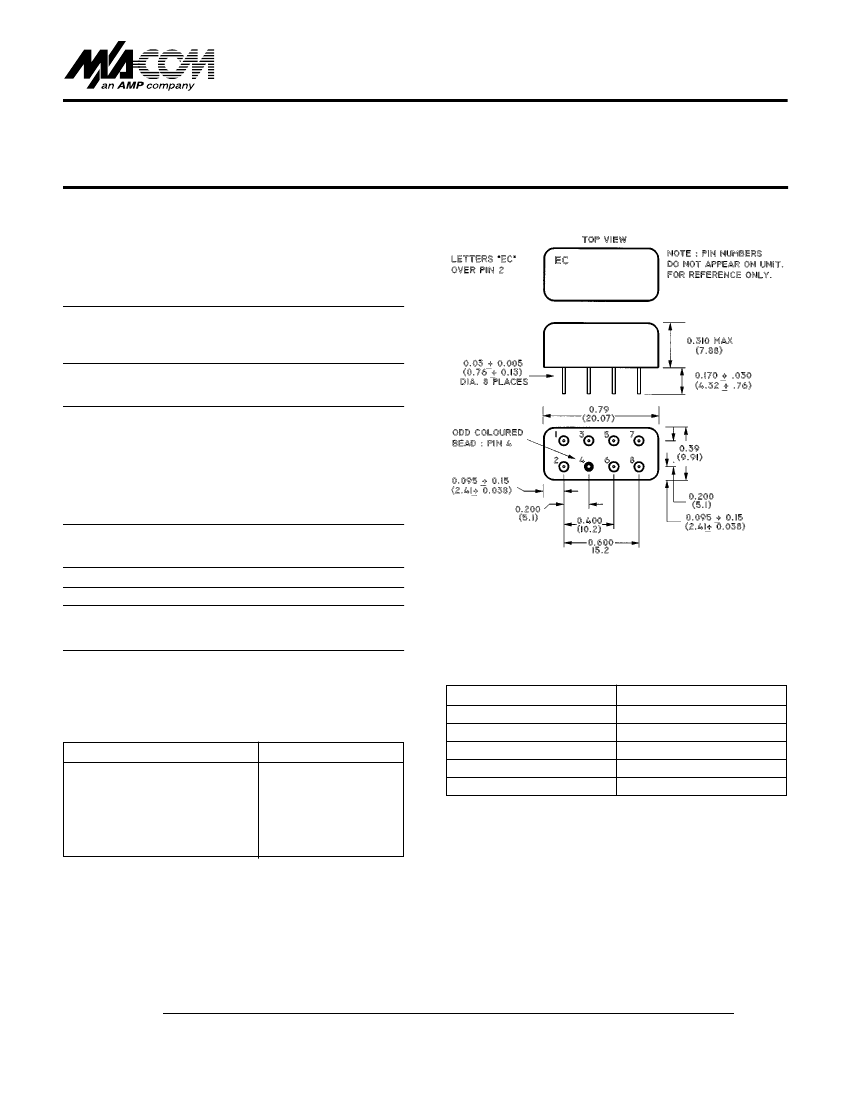

E-Series Plug-In Mixer
0.5 - 500 MHz
Features
q
q
EMA-1H
V3.00
R-1
LO Power: +17 dBm
Up to +10 dBm RF
Specifications
@ 25°C
Frequency Range
RF
LO
IF
Conversion Loss (dB)
1 - 250 MHz
0.5 - 500 MHz
Isolation (dB)
LO to RF
0.5 - 5 MHz
5 - 250 MHz
250 - 500 MHz
LO to IF
0.5 - 5 MHz
5 - 250 MHz
250 - 500 MHz
Typical
5.5
6.5
Typical
55
45
35
45
40
30
0.5 - 500 MHz
0.5 - 500 MHz
DC - 500 MHz
Maximum
7.5
8.5
Minimum
45
30
25
35
30
20
Operating Characteristics
Impedance
RF input for 1dB Compression
50 Ohms Nominal
+ 10 dBm
Dimensions in ( ) are in mm.
Unless Otherwise Noted: .x = ±0.04 (1.00)
.xx = ±0.02 (0.50)
.xxx = ±0.010 (0.250)
WEIGHT (APPROX.): 0.16 OUNCES 4.4 GRAMS
Ordering Information
Part No.
EMA-1H
EMA-1HTR
Packaging
Tube
Forward Tape & Reel
Pin Configuration
Function
LO
RF
IF*
Ground
Case Ground
*IF pins must be connected together externally.
Pin No.
8
1
3,4
2,5,6,7
2
Absolute Maximum Ratings
Parameter
RF Power
Peak IF Current
Storage Temperature
Operating Temperature
Pin Temperature (10 Seconds)
Absolute Maximum
200 mW
40 mA
-55°C to 100°C
-55°C to 100°C
260°C
S 0018 B
Specifications Subject to Change Without Notice.
