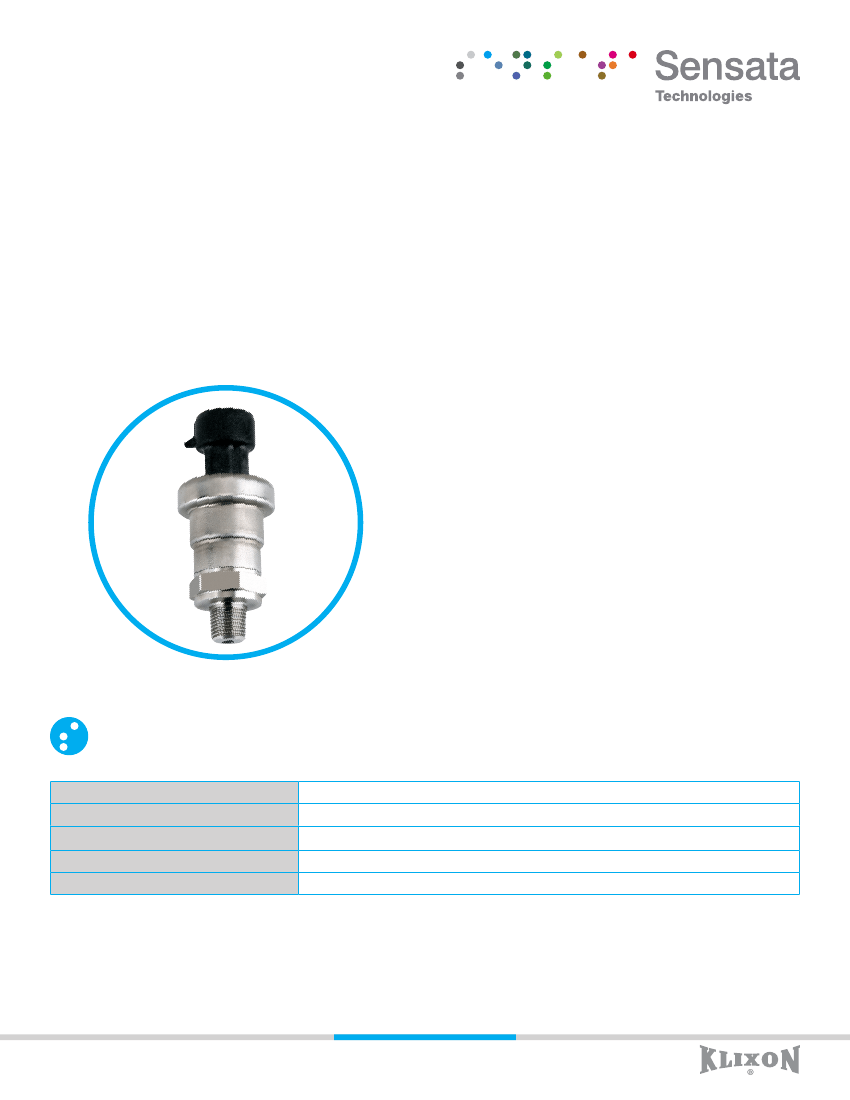

P4000
Pressure Sensor
Introduction
The P4000 series of pressure sensors incorporates a stainless steel isolation diaphragm and welded construction to withstand harsh environments.
The sensor uses piezo-resistive sensing technology and is paired with our custom ASIC to produce a stable, accurate output. Using a 5 Vdc input, the
sensors provide a 0.5 to 4.5 Vdc output proportional to pressure. Internal temperature compensation provides an accurate, easy-to-use device.
The rugged construction of the P4000 series is specifically designed to withstand high overpressure spikes and provide compatibility with a wide range
of process media including refrigerants and hydraulic oils.
Features
• Welded Stainless Steel Construction
• Isolation Diaphragm
• Absolute or Sealed Gage Reference
• Low Power Consumption
• High Vibration Tolerance
• Outstanding EMI/RFI Protection
• Amplified Linear Output
• Temperature Compensated
Aplications
• On & Off-Highway Vehicle
• Hydraulic Systems
• Pressurized Tools
• Instruments
• Pneumatic Controls
• Refrigerant Control & Recovery
MAIN FEATURES
Pressure Ranges
Electrical Connection
Pressure Connection
Housing Material
Output Signal
0 to 100 up to 0 to 5000 PSI
Packard Electric Metri-Pack 150 Series, Deutsch
1/8 – 27 NPT, 7/16 – 20 UNF – for more options see how to order section
304 Stainless Steel (1.4301)
0.5 - 4.5 VDC
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
TECHNICAL SPECIFICATIONS
Pressure Ranges
From 0 to …
(1)
Proof pressure
Burst pressure
PSI
(gage)
PSI
(gage)
PSI
(gage)
100
300
3750
200
900
3750
300
900
3750
500
150
3750
750
1500
3750
1000
3000
15000
1500
5000
15000
2000
5000
15000
3000
8000
15000
4000
8000
15000
5000
8000
15000
Physical
Operating Life Cycle
Vibration Resistance
Shock Resistance
Drop Test
Weight
Ingress Protection
Media Temperature
Environmental Temperature
Storage Temperature
Media
min. 1 million full pressure cycles over the full range
MIL-STD 202, Method 204, Condition A (10 G’s sinusoidal)
75 G’s ½ sine wave
1m onto concrete surface
80 grams (without mating connector)
IP67
-40°C to + 150°C
- 40°C to + 125 °C
- 40°C to + 125 °C
All fluids compatible with stainless steel 304 (1.4301)
Performance
Total error band
(2)
+/-2% of span (-40
≤
T
≤
125° C)
Electrical
Output Signal
Operating Supply Signal
Power Consumption
Excitation Current
Overvoltage Protection
Short-circuit Proofness
Reverse Polarity Protection
Output Load
Response Time
0.5…4.5 VDC ratiometric
5.0 ± 0.5 VDC 10%
<16 mW
< 3 mA
16 VDC
Yes
(3)
Yes
(4)
≥
25 kΩ
≤
10 ms max. to 63% of full scale pressure with step change on input
GENERAL NOTES
For more options see Ordering Options
Including accuracy, calibration, temperature, non-linearity, hysteresis, non-repeatability, error
(3)
For min. 3 intervals at 5 minutes each
(4)
For min. 10 seconds on assigned pins
(1)
(2)
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com

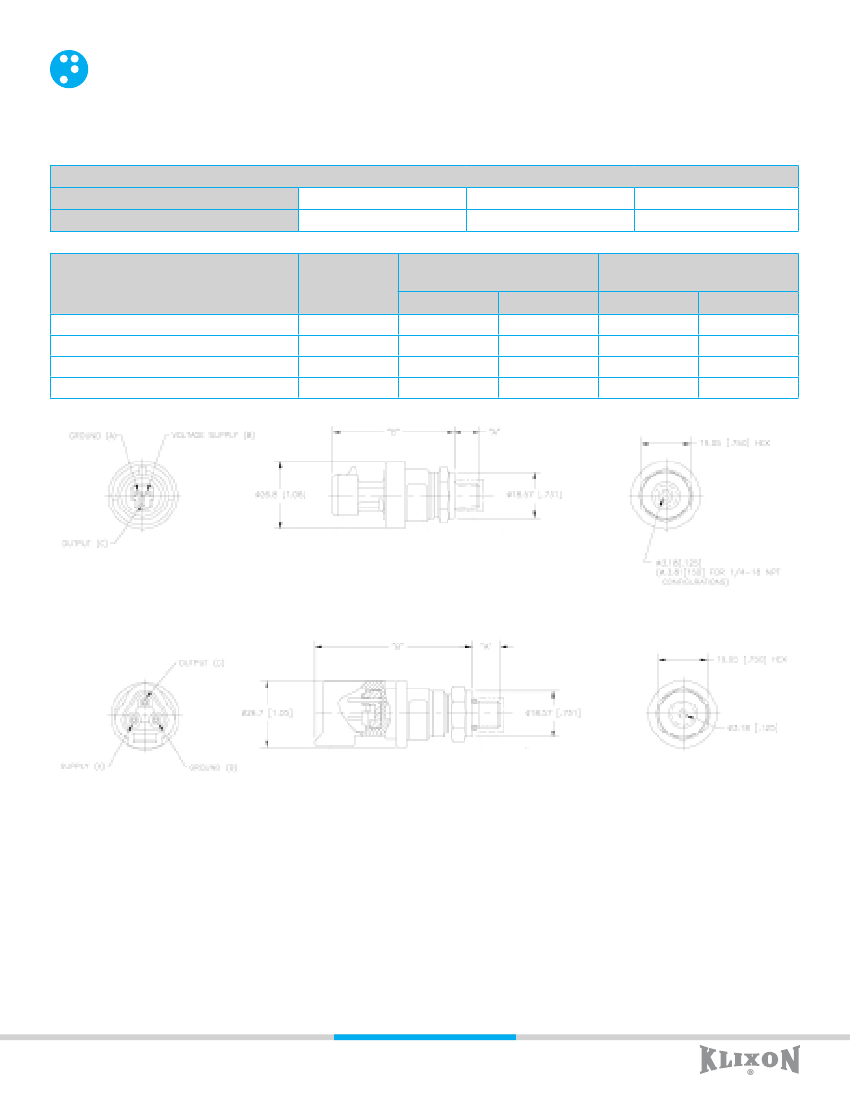

ORDERING OPTIONS
Example : P4000-1000-AB1BA
P4000 Pressure Sensor, 0 – 1000 PSI Absolute, Nitrile External O- Ring, 1/8-27
NPT Pressure Connection, with Deutsch Built-in Connector , without further
electrical options
A
B
1
B
A
Family
P4000
P4000
1000
Pressure Ranges (PSI)
100:
0-100
150:
0-150
200:
0-200
250:
0-250
300:
0-300
500:
0-500
600:
0-600
750:
0-750
1000:
0-1000
1500:
0-1500
2000:
0-2000
2500:
0-2500
3000:
0-3000
3500:
0-3500
4000:
0-4000
4500:
0-4500
5000:
0-5000
Reference
A:
Absolute
S:
Sealed Gauge
External O-Ring
A:
None
B:
Nitrile
Pressure Connection (port)
1:
1/8 - 27 NPT
2:
Schrader (7/16 - 20 UNF)
3:
7/16 - 20 UNF SAE J1926/2
4:
1/2 - 20 UNF SAE J1926/2
5:
1/4 - 18 NPT
Built-in Connection
A:
Packard PA66 GF33
B:
Deutsch
C:
Deutsch, Voltage regulated
D:
Packard with mating connector 36” leads 16 AWG
E:
Deutsch with mating connector 36” leads 16 AWG
F:
Deutsch, voltage regulated with mating connector
36” leads 16 AWG
G:
Packard PEI GF30
H:
Packard with mating connector 12” leads 16 AWG
J:
M12 with straight mating connector assy (2 meter
leads, 22 AWG)
K:
Metripack 150, with mating connector assy 48”
leads 16 AWG
Options
A:
4.5 VDC @ full scale pressure
B:
4.75 VDC @full scale pressure
WARNINGS
RISK OF MATERIAL DAMAGE AND HOT ENCLOSURE
• The product’s side panels may be hot, allow the product to cool
before touching
• Follow proper mounting instructions including torque values
• Do not allow liquids or foreign objects to enter this product
Failure to follow these instructions can result in serious injury, or
equipment damage.
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR
ARC FLASH
• Disconnect all power before installing or working
with this equipment
• Verify all connections and replace all covers before
turning on power
Failure to follow these instructions will result in
death or serious injury.
