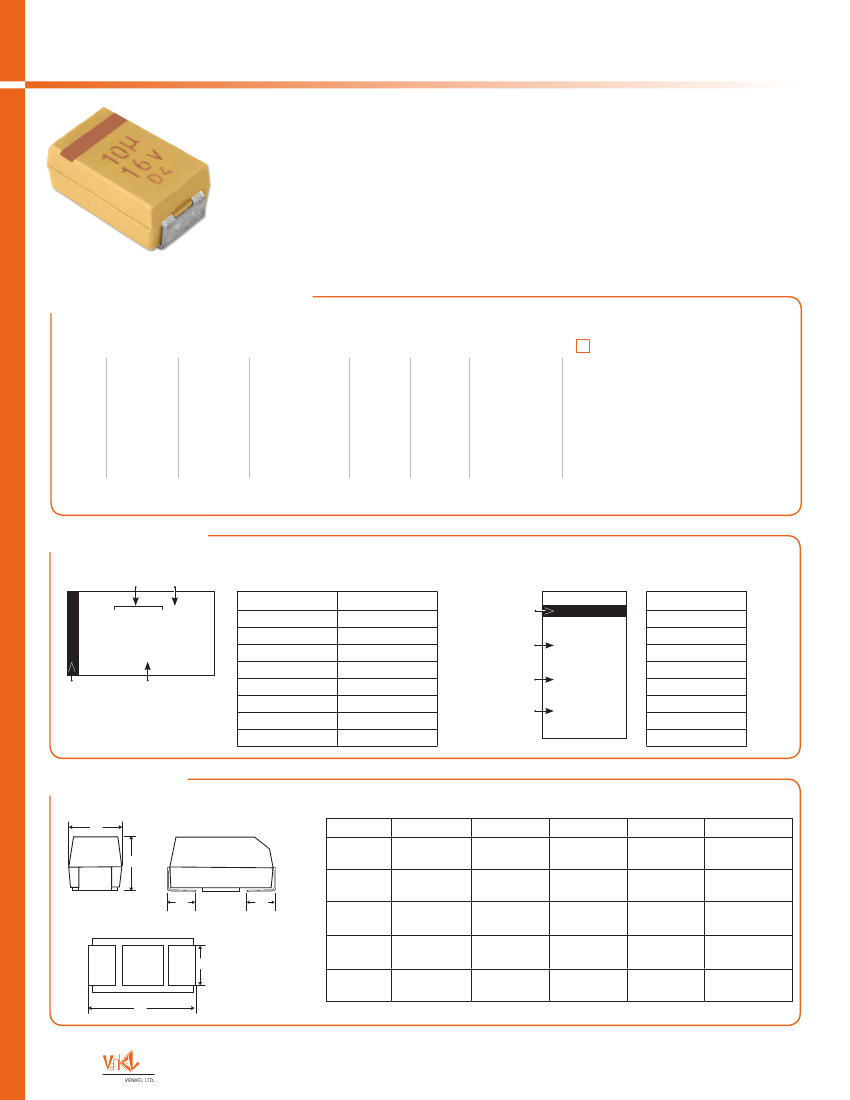

General Purpose Tantalum Capacitors
(TCM Series)
Features:
•
•
•
•
•
•
•
RoHS Compliant and Halogen Free
Excellent frequency characteristics and impedance
Laser marking for easy identification
Voltage range: 4V to 50V
Operating Temperature: -55°C to + 125°C
Capacitance range: 0.1uF to 1000uF
Molded case sizes: A (3216), B (3528), C (6032), D (7343), and E (7343H)
Part Number Structure
TA
Tantalum
Capacitor
016
Rated Voltage
004 = 4.0V
006 = 6.3V
010 = 10V
016 = 16V
020 = 20V
025 = 25V
035 = 35V
050 =50V
TCM
Series
TCM
106
Capacitance
(pico - Farads)
1st two figures are
significant.
Third is the number
of zeros to follow.
105 = 1.0uF
226 = 22uF
107 = 100uF
K
Tolerance
K = ±10%
M = ±20%
C
Case Code
A
B
C
D
E
R
Packaging
R = Tape & Reel
Optional Reel Identifier
Leave blank for standard
7 inch reels.
For 13 inch reels add "-13".
Example P/N:
TA016TCM106KCR
Standard termination finish is 100% matte Tin (Sn) over Nickel
Marking Code
Voltage Code ( A & B Case)
Capacitance Code
Voltage Code
Voltage Code (C, D, E Case)
Voltage Code
e
G
J
A
C
D
E
V
Rated Voltage
2.5V
4V
6.3V
10V
16V
20V
25V
35V
Polarity Band
108G
XXXXX
ID Code
Polarity Band
Rated Voltage
4V
Capacitance Code
10µ
16V
XX
6.3V
10V
16V
20V
25V
35V
50V
Voltage Code
ID Code
Dimensions
END VIEW
W
SIDE VIEW
Unit: mm (inch)
Case Code
L
3.2 ± 0.2
(0.126 ± 0.008)
3.5 ± 0.2
(0.138 ± 0.008)
6.0 ± 0.3
(0.236 ± 0.012)
7.3 ± 0.3
(0.287 ± 0.012)
7.3 ± 0.3
(0.287 ± 0.012)
W
1.6 ± 0.2
(0.063 ± 0.008)
2.8 ± 0.2
(0.110 ± 0.008)
3.2 ± 0.3
(0.126 ± 0.012)
4.3 ± 0.3
(0.169 ± 0.012)
4.3 ± 0.3
(0.169 ± 0.012)
H
1.6 ± 0.2
(0.063 ± 0.008)
1.9 ± 0.2
(0.075 ± 0.008)
2.5 ± 0.3
(0.098 ± 0.012)
2.8 ± 0.3
(0.110 ± 0.012)
4.0 ± 0.3
(0.157 ± 0.012)
a
0.8 ± 0.3
(0.031 ± 0.012)
0.8 ± 0.3
(0.031 ± 0.012)
1.3 ± 0.3
(0.051 ± 0.012)
1.3 ± 0.3
(0.051 ± 0.012)
1.3 ± 0.3
(0.051 ± 0.012)
b
1.2 ± 0.2
(0.047 ± 0.008)
2.2 ± 0.2
(0.087 ± 0.008)
2.2 ± 0.2
(0.087 ± 0.008)
2.4 ± 0.2
(0.094 ± 0.008)
2.4 ± 0.2
(0.094 ± 0.008)
H
A
B
a
a
BOTTOM VIEW
C
D
E
b
L
40
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev. 05/2014-D
General Purpose Tantalum Capacitors
(TCM Series)
Standard Rating and Case Codes
Rated Voltage
Capacitance (uF)
0.1
0.15
0.22
0.33
0.47
0.68
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
A,B
A,B
B
A,B,C
B,C,D
B
C,D
D,E
D,E
E
A
A
A
A
A
A
A
B
A,B
A,B
A,B,C
A,B,C
A,B,C
B,C,D
B,C,D
B, C,D
C,D,E
C, D,E
D,E
E
E
A
A
A
A,B
A,B
A,B,C
A,B,C
A,B,C
A,B,C,D
B,C,D
B,C,D
C,D
C,D,E
D,E
D,E
E
A
A
A
A,B
A,B,C
A,B
A, B,C
A,B,C
B,C,D
C,D
D
C,D
D,E
D,E
E
A
A
A,B
A,B
A,B,C
A,B,C
B,C
C,D
B,C,D
C,D
D
D,E
E
E
A
A
A
A,B
A, B
B,C
A,B,C
B,C
B,C,D
C,D,E
C,D
D,E
D,E
E
E
4V
6.3V
10V
16V
20V
25V
35V
A
A
A
A
A,B
A,B
A,B
B,C
B,C
C,D
C,D
C,D
C,D
D,E
D,E
E
E
50V
A
A,B
B
B
B,C
B,C
B,C
C,D
C,D
D
D
D
D,E
E
Electrical Specifications and Part Numbers
Rated
Voltage
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
4.0V
Capacitance
(uF)
3.3
4.7
6.8
10
10
15
15
33
33
33
47
47
47
68
68
68
100
Case
Code
A
A
A
A
B
A
B
A
B
C
A
B
C
B
C
D
A
Max. DCL
@ +25°C
(uA)
0.5
0.5
0.5
0.5
0.5
0.6
0.6
1.3
1.3
1.3
1.9
1.9
1.9
2.7
2.7
2.7
4.0
Max. DF
@ +25°C
120 Hz (%)
6
6
6
6
6
6
6
6
6
6
12
6
6
6
6
6
30
Max. ESR
100 kHz
(W)
8
8
6
6
3.5
4
3.5
4
3.5
1.8
2.5
3
1.8
3.5
1.6
0.8
4
Venkel Part Number
TA004TCM335 K or M AR
TA004TCM475 K or M AR
TA004TCM685 K or M AR
TA004TCM106 K or M AR
TA004TCM106 K or M BR
TA004TCM156 K or M AR
TA004TCM156 K or M BR
TA004TCM336 K or M AR
TA004TCM336 K or M BR
TA004TCM336 K or M CR
TA004TCM476 K or M AR
TA004TCM476 K or M BR
TA004TCM476 K or M CR
TA004TCM686 K or M BR
TA004TCM686 K or M CR
TA004TCM686 K or M DR
TA004TCM107 K or M AR
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Rev. 05/2014-D
