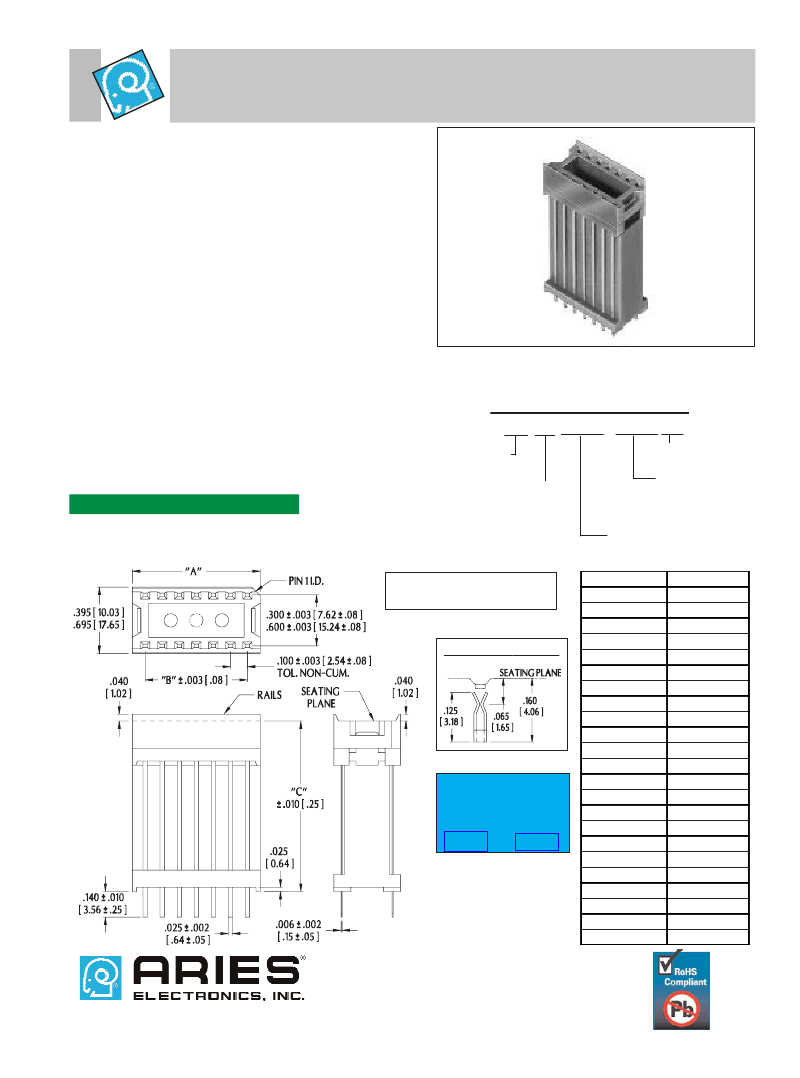

Series 8XXX
Elevator Sockets with Bifurcated Contacts
FEATURES:
• Ideal for elevating devices (displays, switches, etc.) to desired level with
.260 to 1.250 [6.60 to 31.75] height extension.
SPECIFICATIONS:
• Standard socket body is black UL 94V-0 Glass Filled 4/6 Nylon.
• Bifurcated contacts are Grade A Phosphor Bronze per
QQ-B-750.
• Contact plating:
-10
= 50-130μ” [1.27-3.30μm] Matte Tin per ASTM B545-97 over
50μ”[1.27μm] Nickel per SAE-AMS-QQ-N-290.
-10TL=
50-130μ” [1.27-3.30μm] 90/10 Tin/Lead per MIL-T-10727 Type 1
over 50μ” [1.27μm] Nickel per SAE-AMS-QQ-N-290.
-11
= 10μ” [0.25μm] min. Gold per MIL-G-45204 over 50
μ”
[1.27μm]
Nickel per SAE-AMS-QQ-N-290. (consult factory for availability).
• Contact current rating=1 Amp.
• Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin
average.
• Operating temperatures=
-67°F to 221°F [-55°C to 105°C]
Tin & Tin/Lead Plating:
-67°F to 257°F [-55°C to 125°C]
Gold Plating
• Accepts flat leads up to .014 thk. x .020 wide [.36-.51], round leads up to
.020 [.51] in diameter.
• Socket accepts lead lengths from seating plane .075-.160 [1.91-4.06].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.035 ± .002 [.89 ± .05]. dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
X X - X8 X X X X - 1 X X X X X
No. of pins:
14, 16, 18
Optional suffix:
WR=without rails
-10= Tin
-10TL=Tin/Lead
-11=Gold
(consult factory)
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Row-to-row spacing:
8= .300 [7.62] centers
(14 & 16 pin)
68= .600 [15.24] centers
(18 pin only)
Dim. “C”: seating plane
height (see table)
All tolerances ± .005 [.13]
unless otherwise specified
CONTACT DETAIL
Elevator sockets with
collet contacts also
available. Consult
Data Sheet Nos.
13007 and 13008.
Part no.
10-28440-10
14-8260-10
14-8350-10
14-8400-10
14-8435-10
14-8470-10
14-8510-10
14-8620-10
14-8770-10
14-8870-10
14-81000-10
14-81100-10
14-81187-10
14-81250-10
16-8430-10
16-8480-10
16-8700-10
16-8810-10
16-81250-10
18-68500-10
18-68587-10
18-68660-10
18-681250-10
Dim. “C”
.440 [11.18]
.260 [6.60]
.350 [8.89]
.400 [10.16]
.440 [11.17]
.470 [11.93]
.510 [12.95]
.620 [15.74]
.770 [19.55]
.870 [22.09]
1.000 [25.40]
1.100 [27.94]
1.180 [29.97]
1.250 [31.75]
.430 [10.92]
.480 [12.19]
.700 [17.78]
.810 [20.57]
1.250 [31.75]
.500 [12.70]
.587 [14.90]
.660 [16.76]
1.250 [31.75]
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
abc
13006
REV. F
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
