8 Channel Signal Retimer for
8.0Gps, 5.0Gbps and 2.5Gbps PCIe®
®
89HT0808P
Product Brief
The 89HT0808P (T0808P) is a Signal Retimer/Conditioner used to
improve signal integrity for enhancing system performance and reliability
across long PCB traces or cables. It removes both random and deter-
ministic jitter from the input signal eliminating inter-symbol interference,
and resets the output jitter budget. It provides eight differential, 8Gbps
PCIe Express® 3.0 channels, supporting up to 4 full lanes. The Retimer
also fully supports PCIe Express 5Gbps and 2.5Gbps features. The
T0808P is targeted to meet the high-performance needs of PCIe®
Gen 3/2/1 applications.
Device Overview
Applications
Features
◆
–
Computing and Storage
–
Consumer Electronics and Communications
High Performance Retimer
–
Eliminates random input jitter
–
Eliminates deterministic ISI jitter
–
Compensates for PCB trace and cable attenuations
–
Performance and power tunable for each data rate
–
Wide swing, transmit driver offers up to 8dB of transmit de-
emphasis to meet the needs of the most challenging of back-
planes
–
Multi-stage equalizer: CTLE and 5 tap DFE
–
Fast acquisition PLL for L0s exit
–
SERDES Rx eye generation (on-chip)
◆
PCIe Standards and Compatibility
–
PCI Express Base Specification 3.0 compliant
–
PCI Express Base Specification 2.1 compliant
◆
Power Management
–
Low power
–
Supports the following optional PCI Express features
•
L0s ASPM
•
L1 ASPM
◆
Hot Plug Support
◆
SerDes Power Savings
–
Supports low swing (half-swing) SerDes operation
–
SerDes associated with unused lanes are placed in a low
power state automatically
◆
Link Configurability
–
Links can be configured with 1x4, 1x1, 2x1
–
Automatic per port link width negotiation (e.g., a x4 port can
link train to x4 or x1)
–
Per-lane SerDes configuration
•
De-emphasis, receive equalization, drive strength
Clocking
–
Uses standard 100 MHz PCIe reference clock
–
SSCLK (Spread Spectrum Clocking) supported with common
clock configuration
–
Non-SSCLK supported with common and non-common clock
configuration
2
◆
I C Interface
–
Dedicated master interface
•
External EEPROM configuration loading
–
Dedicated slave interface
•
Configuration loading
•
Writing new or initial image into external EEPROM
•
Expose internal global CSR space to system controller
◆
Reliability, Availability and Serviceability (RAS)
–
Physical layer error checking and accounting
–
End-to-end data path parity protection
–
Checksum Serial EEPROM content protected
◆
Test and Debug
–
Per link/lane error diagnostic registers
–
All registers accessible from I
2
C or JTAG port
–
SerDes test modes
–
Supports IEEE 1149.6 AC JTAG and IEEE 1149.1 JTAG
–
Several loopback modes
◆
Packaged in a 9x9mm, 100-pin BGA, 0.8mm ball spacing
◆
IDT and the IDT logo are registered trademarks of Integrated Device Technology, Inc.
1 of 2
2010 Integrated Device Technology, Inc.
October 1, 2010
IDT 89HT0808P Product Brief
Applications
IDT’s Retimer products fit into server, storage, and blade products.
memory
memory
y
memor

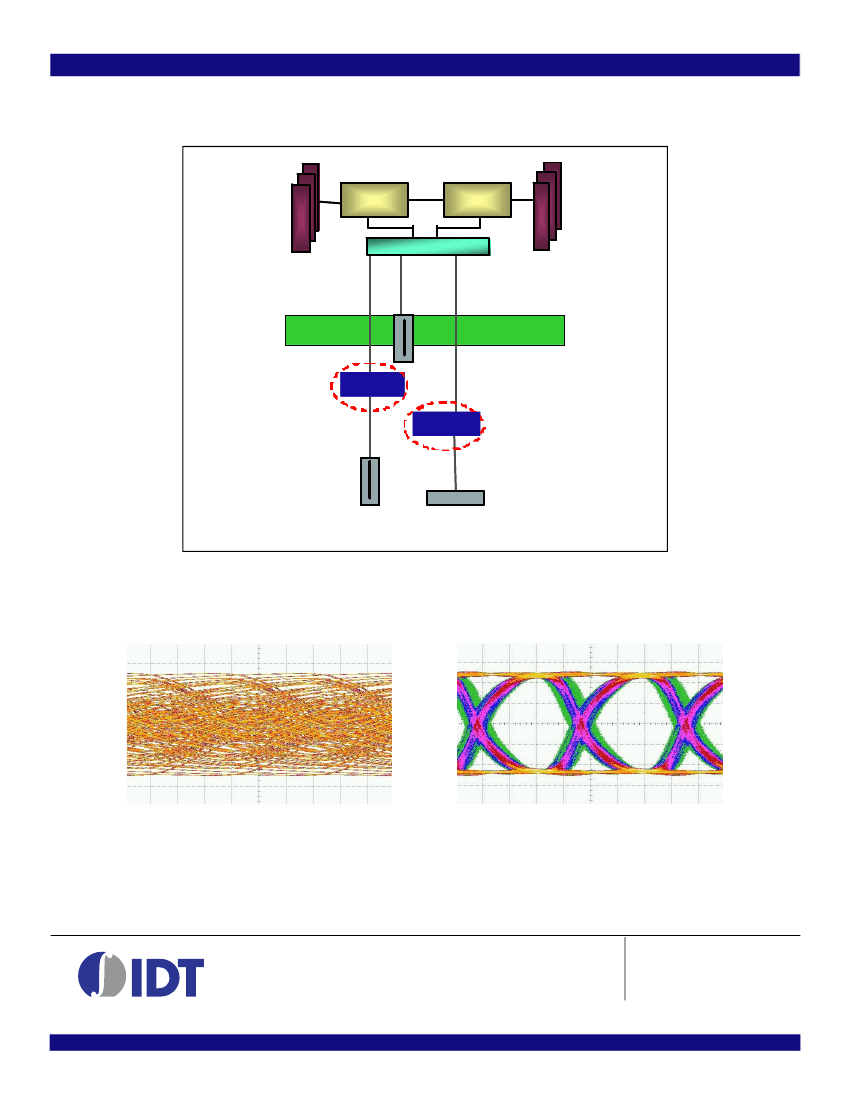

Improving Signal Integrity with IDT Retimers
memor y
memor y
memor y
memor y
me mory
memory
memory
memory
memory
CPU
QPI
CPU
IOH
PCIe
PCIe
89HT0808P
89HT0816P
Retimer
Retimer
89HT0808P
89HT0816P
Retimer
Retimer
PCIeSlot with a
long trace
Backplane
No Retimer
With IDT Retimer
Example Eye diagram FR4 and PRBS patterns
August 16, 2004August 16, 200
