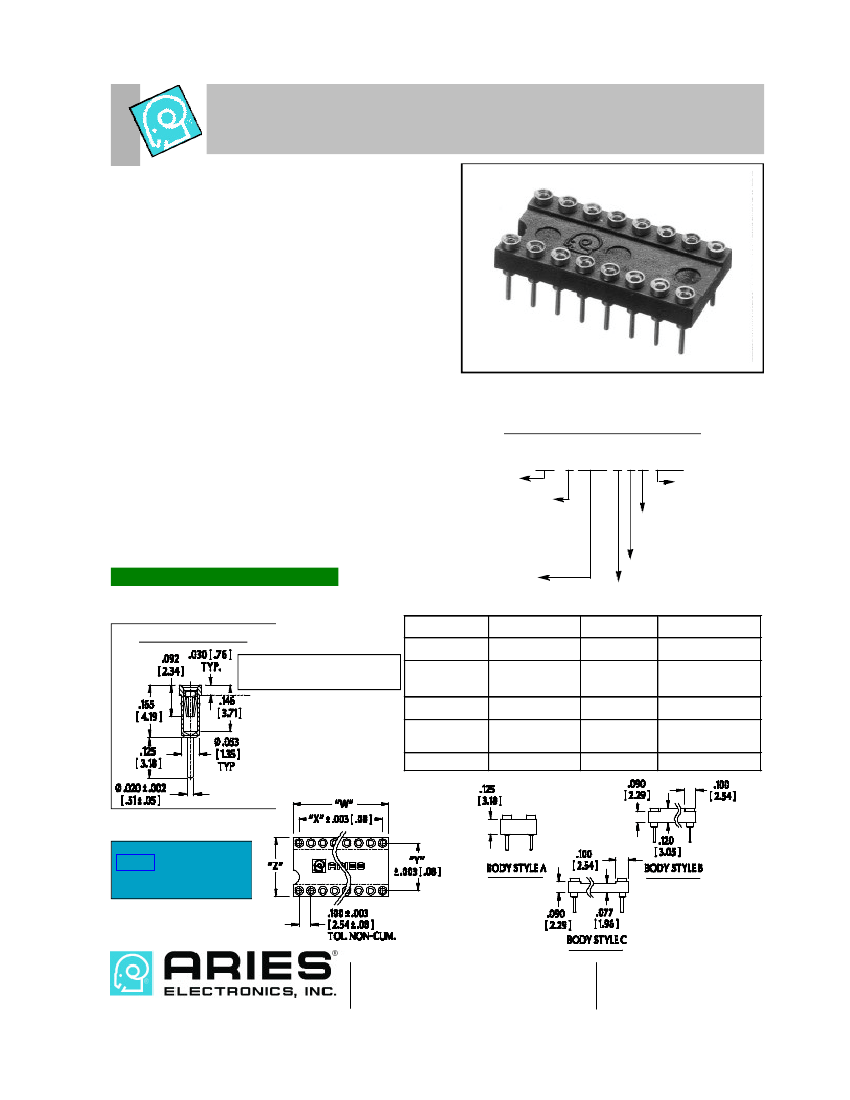

Series 513 LO-PRO
®
file Collet
Sockets with Solder Tail Pins
FEATURES:
• LO-PRO
®
file Collet Sockets are available with solder tail or
wire wrap pins. Consult Data Sheet No. 12012 for wire
wrap pins.
• Choose from several size and plating options.
SPECIFICATIONS:
• Body material is black UL 94-HB Glass-filled Nylon.
Hi-Temp body material is black UL 94V-0 4/6 Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is either 200µ [5.08µm] min. 93/7 Tin/Lead
per MIL-P-81728 or 10µ [.025µm] min. Gold per MIL-G-
45204 over 100µ [2.54µm] min. Nickel per QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-92.
• Contact plating is either 10µ [.25µm] Gold per MIL-G-45204
Note: Aries specializes in custom design and production. In addition to the
or 150µ [3.81µm] min. 93/7 Tin/Lead per MIL-P-81728 over
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
50µ min. [1.27µm] Nickel per QQ-N-290. Heavy 30µ
right to change product specifications without notice.
[.76µm] min. Gold on contact also available.
ORDERING INFORMATION
• Contact current rating=3 Amps.
• Insertion Force=180 grams/pin; Withdrawal Force=90
XX-X513-1XX XX
grams/pin; Normal Force=140 grams/pin; based on a .018
No. of pins
[.46] dia. test lead.
(see table)
V0=UL 94V-0
• Operating temperature=221°F [105°C] Tin plating,
Row-to-row spacing:
plastic
=257°F [125°C] Gold plating.
2: “Y”=.200 [5.08]
• Accepts leads .015-.025 [.38-.64] in diameter,
*
: “Y”=.300 [7.62]
Optional plating suffix:
.100-.146 [2.54-3.71] long.
4: “Y”=.400 [10.16]
H=Heavy Gold on collet
MOUNTING CONSIDERATIONS:
6: “Y”=.600 [15.24]
T=Tin collet/Tin shell
•Suggested PCB hole size=.030 ± .002 [.76 ± .05] dia.
9: “Y”=.900 [22.86]
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
*use P/N xx-513-1xx when
ordering .300 ctr socket
Series:
“W”=NO. OF PINS PER ROW X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Solder tail pin
Plating:
0=Gold collet/Tin shell
1=Gold collet/Gold shell
SOLDER TAIL PIN
All tolerances ± .005 [.13]
unless otherwise specified
Centers “Y”
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
.900 [22.86]
Dim. “Z”
.300 [5.08]
.400 [10.16
.500 [12.70]
.700 [17.78]
1.000 [25.40]
Body Style
A
C
B
C
C
B
B
Available Sizes
2 thru 10
2 thru 20
22 thru 40
2 thru 22
2 thru 40
42 thru 48
2 thru 64
Consult Data Sheet No.
12012 for LO-PRO
®
file
collet sockets with wire
wrap pins.
http://www.arieselec.com • info@arieselec.com
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
12011
REV.E
