DF14-H-25 datasheet, PDF - EEWORLD Datasheet

DF14-H-25: DescriptionBoard Connector, 25 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Locking, Plug; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric View All

DF14-H-25 Overview

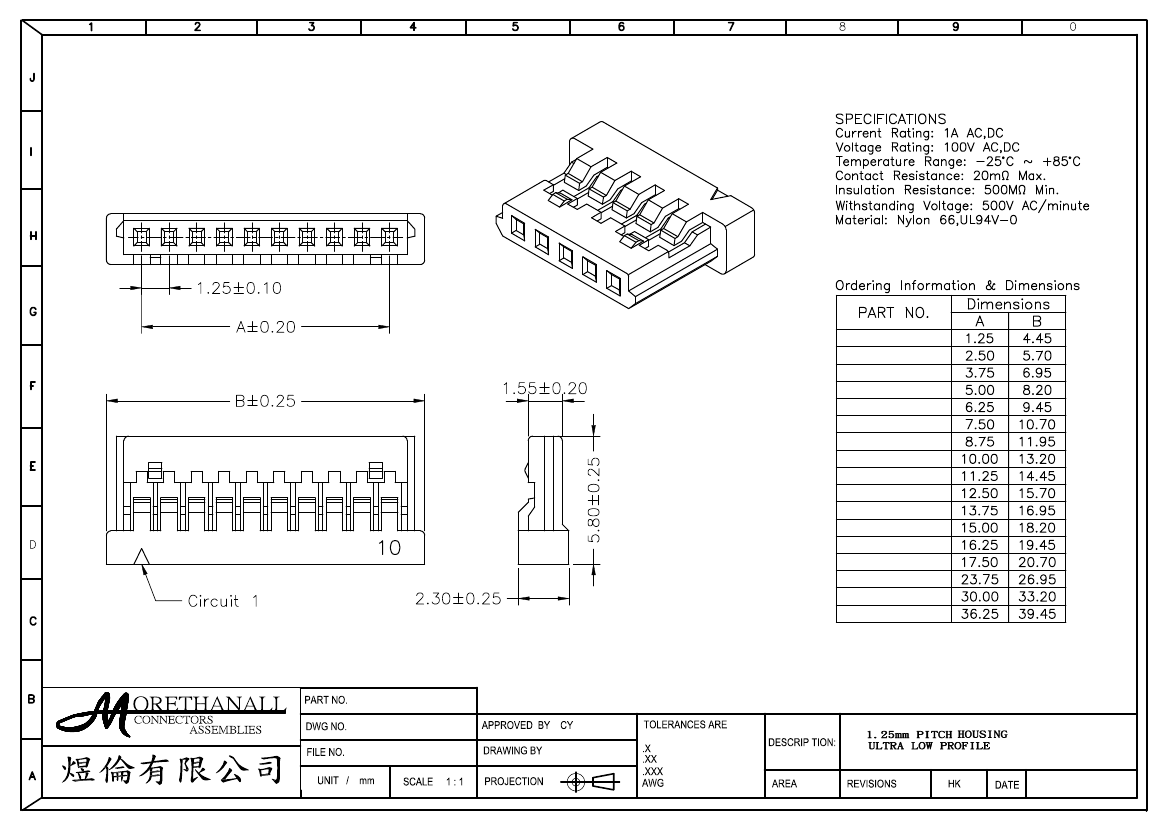

Board Connector, 25 Contact(s), 1 Row(s), Female, 0.049 inch Pitch, Locking, Plug

Parameter Name	Attribute value
Objectid	303812093
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.091 inch
subject depth	0.228 inch
body length	1.307 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	REMOVABLE CNT BLOCK
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	NYLON
Manufacturer's serial number	DF14
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Total number of contacts	25

DF14-H-02

DF14-H-03

DF14-H-04

DF14-H-05

DF14-H-06

DF14-H-07

DF14-H-08

DF14-H-09

DF14-H-10

DF14-H-11

DF14-H-12

DF14-H-13

DF14-H-14

DF14-H-15

DF14-H-20

DF14-H-25

DF14-H-30

DF14-H-xx
