2N4449J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N4449J

2N4449J: DescriptionSmall Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3; CategoryDiscrete semiconductor The transistor; File Size743KB，2 Pages; ManufacturerSemicoa; Websitehttp://www.snscorp.com/Semicoa.htm

Download Datasheet Parametric Compare View All

2N4449J Overview

Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3

2N4449J Parametric

Parameter Name	Attribute value
Parts packaging code	TO-46
package instruction	CYLINDRICAL, O-MBCY-W3
Contacts	3
Reach Compliance Code	unknown
Collector-emitter maximum voltage	15 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JEDEC-95 code	TO-46
JESD-30 code	O-MBCY-W3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Guideline	MIL-19500
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	18 ns
Maximum opening time (tons)	12 ns
Base Number Matches	1

Preview

Download Datasheet

View All

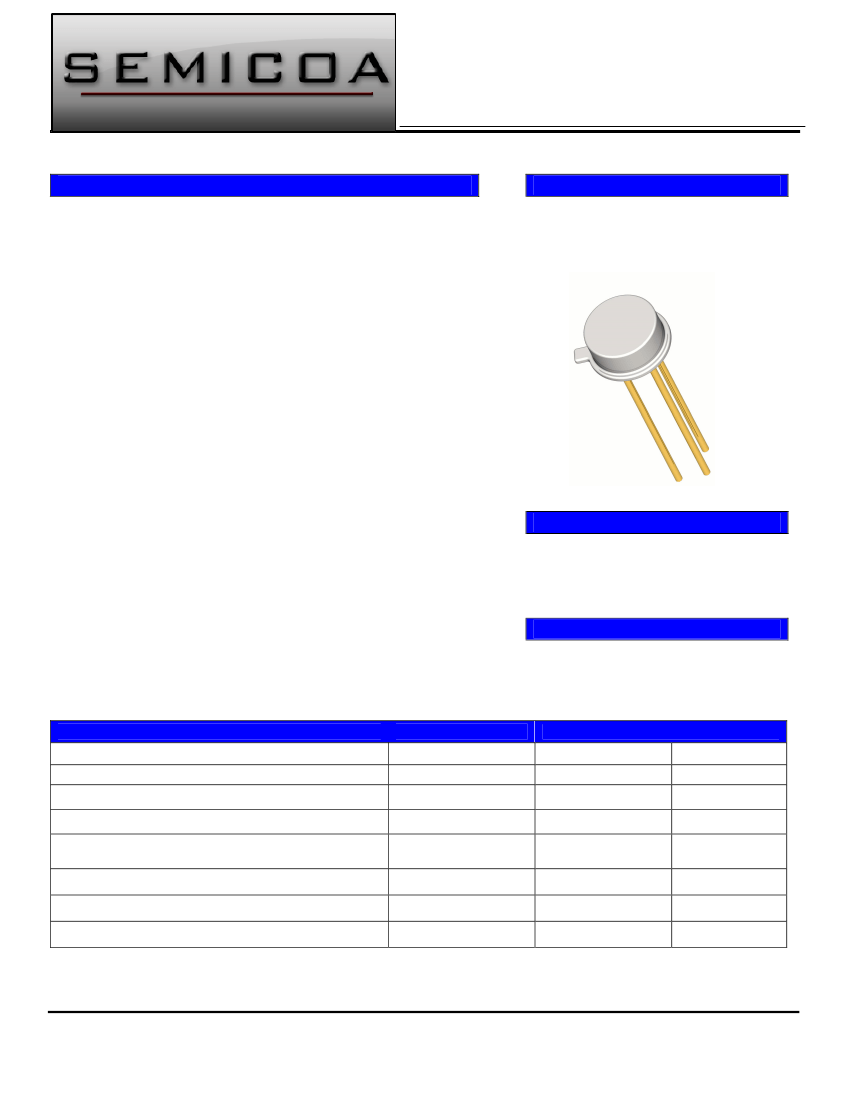

2N4449

Silicon NPN Transistor

Data Sheet

Description

EMICOA Corporation

offers:

•

Screening and processing per MIL-PRF-19500

Appendix E

•

JAN level (2N4449J)

•

JANTX level (2N4449JX)

•

JANTXV level (2N4449JV)

•

JANS level (2N4449JS)

•

JANSR level (2N4449JSR)

•

JANSF level (2N4449JSF)

•

QCI to the applicable level

•

100% die visual inspection per MIL-STD-750 method

2072 for JANTXV and JANS

•

Radiation testing (total dose) upon request

Applications

•

High-speed switching transistor

•

Low power

•

NPN silicon transistor

Features

•

Hermetically sealed TO-46 metal can

Also available in chip configuration

Chip geometry 0005

Reference document:

MIL-PRF-19500/317

Benefits

Please contact S

EMICOA

for special configurations

www.SEMICOA.com or (714) 979-1900

•

Qualification Levels: JAN, JANTX,

JANTXV

JANS

, JANSR and JANSF

•

Radiation testing available

Absolute Maximum Ratings

Parameter

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Power Dissipation, T

= 25°C

Derate linearly above 25°C

Thermal Resistance

Operating Junction Temperature

Storage Temperature

Symbol

CEO

CBO

EBO

= 25°C unless otherwise specified

Rating

4.5

0.36

2.06

325

-65 to +200

Unit

Volts

mW/°C

°C/W

°C

θJA

STG

Rev. J

EMICOA Corporation

333 McCormick Avenue, Costa Mesa, California 92626 714.979.1900, FAX 714.557.4541

Page 1 of 2

www.SEMICOA.com

2N4449J Related Products

	2N4449J	2N4449JX	2N4449JV	2N4449JSR	JANTXVF2N4449	JANSR2N4449	2N4449JS	2N4449JSF	2N4449
Description	Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3	Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3	Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3	Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3	Small Signal Bipolar Transistor, 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3	Small Signal Bipolar Transistor,	Small Signal Bipolar Transistor, 0.2A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, TO-46, HERMETIC SEALED, METAL CAN-3
package instruction	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	,	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	,	CYLINDRICAL, O-MBCY-W3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	compliant
Base Number Matches	1	1	1	1	1	1	1	1	1
Parts packaging code	TO-46	TO-46	TO-46	-	-	-	TO-46	-	TO-46
Contacts	3	3	3	-	-	-	3	-	3
Collector-emitter maximum voltage	15 V	15 V	15 V	-	15 V	15 V	15 V	-	15 V
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	-	SINGLE
Minimum DC current gain (hFE)	20	20	20	-	20	20	20	-	20
JEDEC-95 code	TO-46	TO-46	TO-46	-	TO-46	TO-46	TO-46	-	TO-46
JESD-30 code	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	-	O-MBCY-W3	O-MBCY-W3	O-MBCY-W3	-	O-MBCY-W3
Number of components	1	1	1	-	1	1	1	-	1
Number of terminals	3	3	3	-	3	3	3	-	3
Package body material	METAL	METAL	METAL	-	METAL	METAL	METAL	-	METAL
Package shape	ROUND	ROUND	ROUND	-	ROUND	ROUND	ROUND	-	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	-	NPN	NPN	NPN	-	NPN
Guideline	MIL-19500	MIL-19500	MIL-19500	-	MIL-19500; RH - 300K Rad(Si)	MIL-19500; RH - 100K Rad(Si)	MIL-19500	-	-
surface mount	NO	NO	NO	-	NO	NO	NO	-	NO
Terminal form	WIRE	WIRE	WIRE	-	WIRE	WIRE	WIRE	-	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON	-	SILICON
Maximum off time (toff)	18 ns	18 ns	18 ns	-	-	-	18 ns	-	18 ns
Maximum opening time (tons)	12 ns	12 ns	12 ns	-	-	-	12 ns	-	12 ns
