396G2-H20: DescriptionBoard Connector, 20 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size29KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

396G2-H20 Overview

Board Connector, 20 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Plug

396G2-H20 Parametric

Parameter Name	Attribute value
Objectid	303807982
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.25 inch
subject depth	0.626 inch
body length	3.129 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STAMPED, STRIP, X7K
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Minimum insulation diameter	0.059 inch
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	396G2
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Termination type	CRIMP
Total number of contacts	20
Maximum wire diameter	18 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

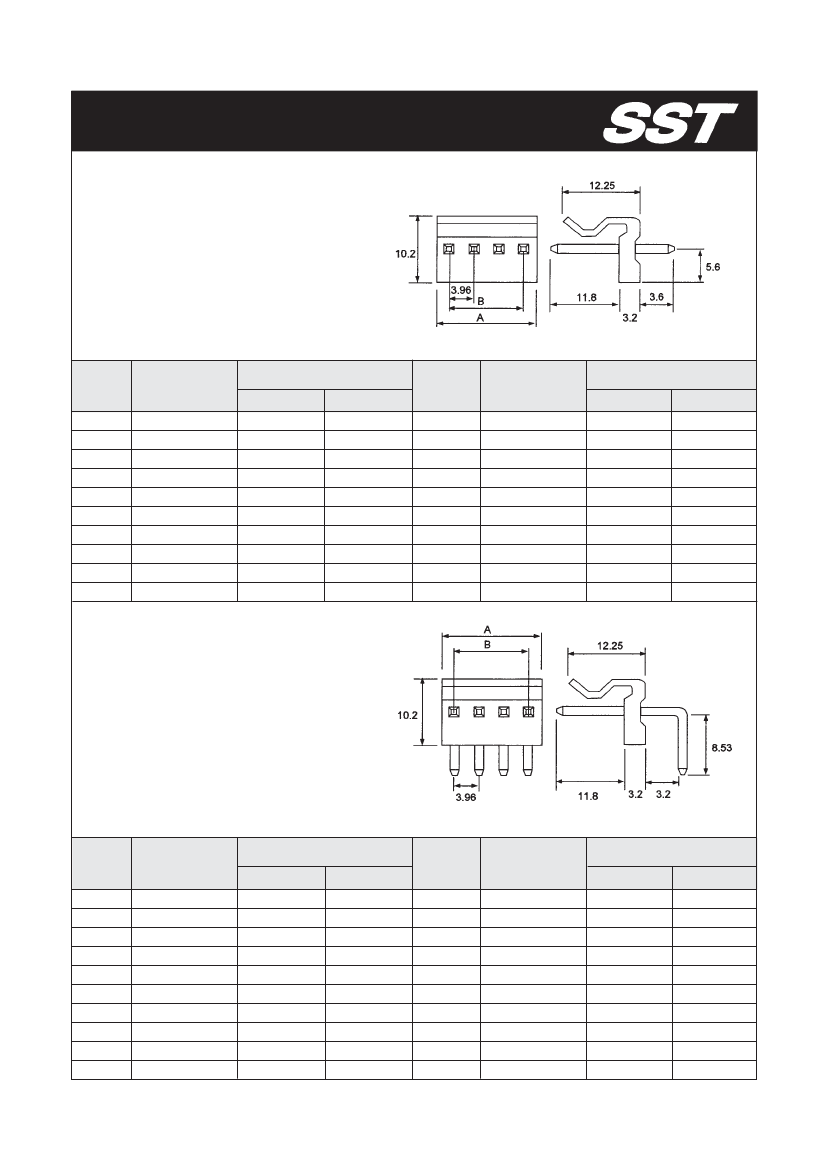

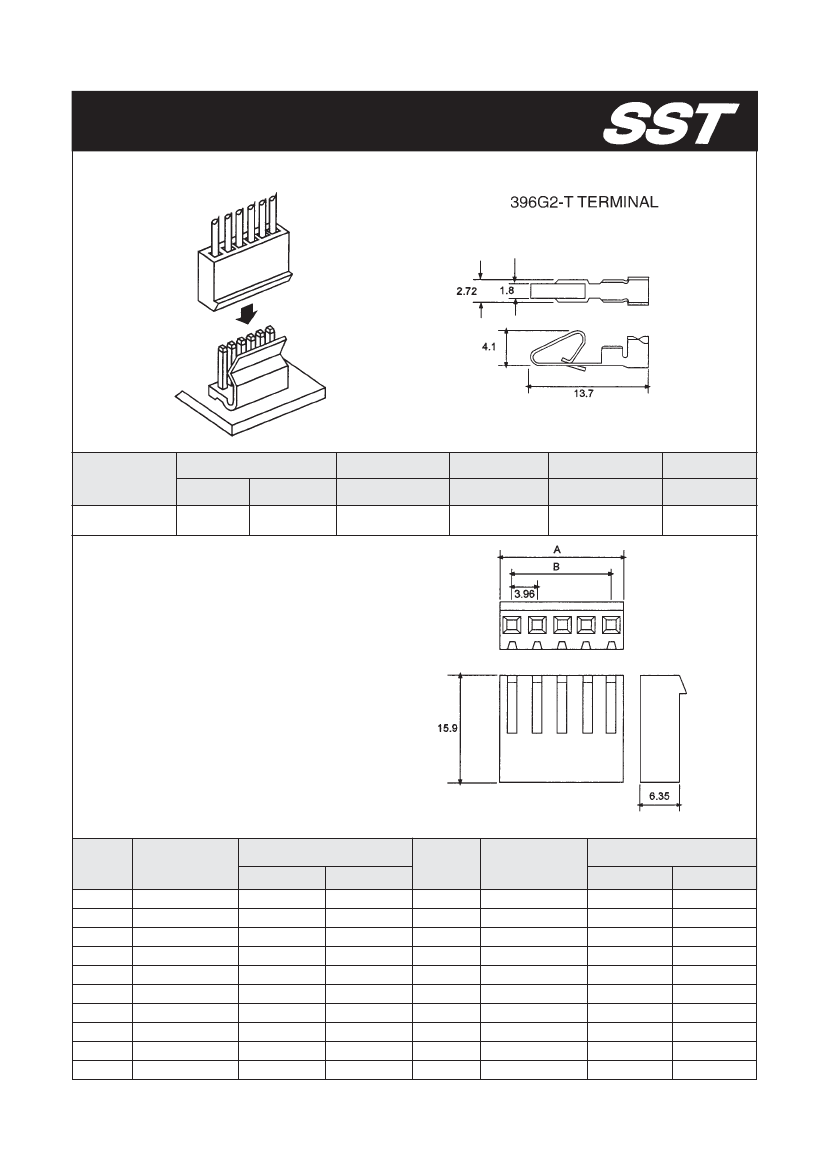

396G2 CONNECTOR SYSTEM

.156” (3.96mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

396G2-T

18-24

mm

2

0.83-0.22

MATERIAL/

FINISH

BRASS/TIN

THICKNESS

mm

0.25

INSULATION

O.D.(mm)

3.0-1.5

REEL

PCS

7000

396G2-H SERIES HOUSING

MATERIAL : NYLON 66 UL 94V-2

ACCEPT 396G2-T TERMINAL

MATE WITH 396G2-V(R) HEADER

CURRENT RATING : 7A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE ; 20m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 1500V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

2

3

4

5

6

7

8

9

10

11

PART NO.

396G2-H02

396G2-H03

396G2-H04

396G2-H05

396G2-H06

396G2-H07

396G2-H08

396G2-H09

396G2-H10

396G2-H11

DIMENSIONS (mm)

POLES

A

8.20

12.16

16.12

20.08

24.04

28.00

31.96

35.92

39.88

43.84

B

3.96

7.92

11.88

15.84

19.80

23.76

27.72

31.68

35.64

39.60

12

13

14

15

16

17

18

19

20

396G2-H12

396G2-H13

396G2-H14

396G2-H15

396G2-H16

396G2-H17

396G2-H18

396G2-H19

396G2-H20

PART NO.

DIMENSIONS (mm)

A

47.80

51.76

55.72

59.68

63.64

67.60

71.56

75.52

79.48

B

43.56

47.52

51.48

55.44

59.40

63.36

67.32

71.28

75.24
