8005PS4-1041AW datasheet, PDF - EEWORLD Datasheet

8005PS4-1041AW: DescriptionTelecom and Datacom Connector, 40 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

8005PS4-1041AW Overview

Telecom and Datacom Connector, 40 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Objectid	1166541190
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH GROUNDING
Board mount options	SPLIT BOARD LOCK
body width	0.535 inch
subject depth	0.837 inch
body length	2.325 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact style	TELCOM, MODULAR
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8005PS
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40

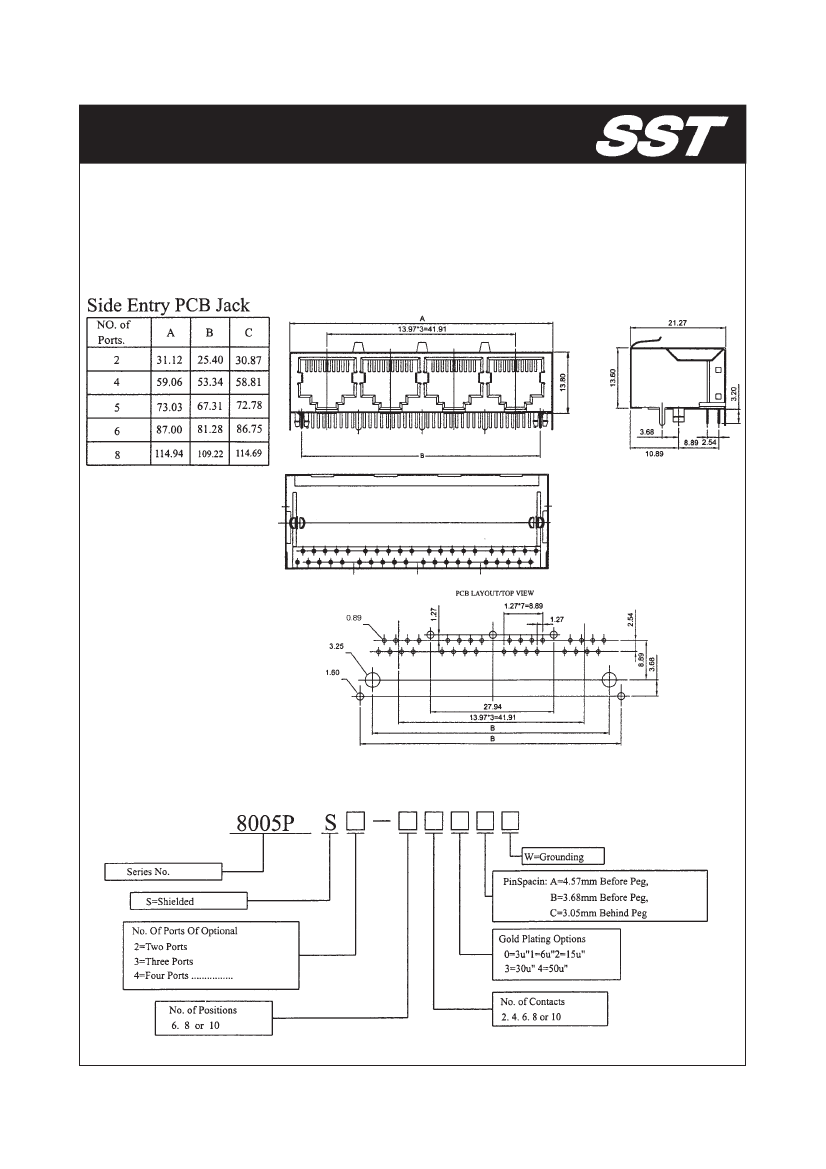

8005PS SERIES MODULAR JACK

Side Entry With Shield type

HOUSING : GLASS FILLED POLYESTER UL 94V-0

CONTACT : 0.46 MM DIAMETER ALLOY. GOLD PLATED OVER NICKET IN CONTACT AREA

GOLD PLATED : SELECTIVE GOLD PLATED.
