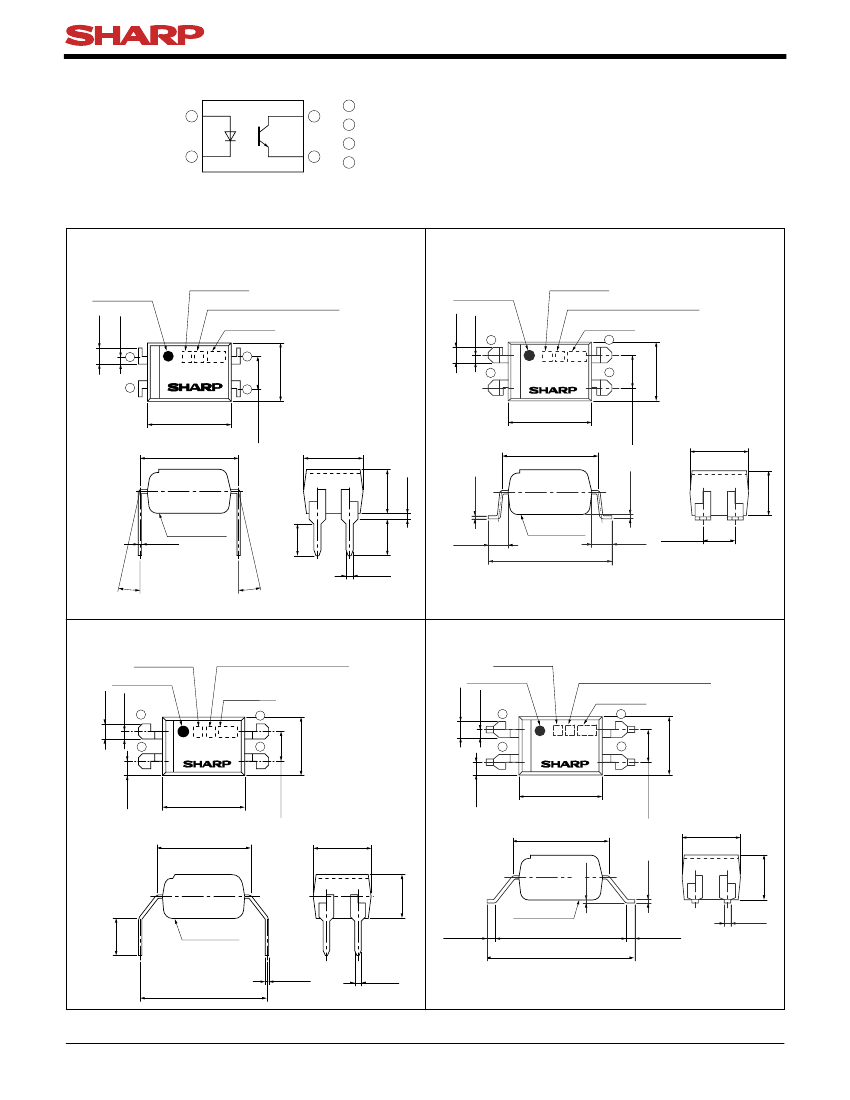

It is packaged in a 4pin DIP, available in wide-lead
spacing option and SMT gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
Collector-emitter voltage is 80V
(*)
and CTR is 50%
to 600% at input current of 5mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC817)
2. Package resin : UL flammability grade
(94V-0)
■
Applications
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different po-
tentials and impedances
■
Features
1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Solder-
ing)
3. High collector-emitter voltage (V
CEO
:80V
(*)
)
4. Current transfer ratio (CTR : MIN. 50% at I
F
=5 mA,
V
CE
=5V)
5. Several CTR ranks available
6. High isolation voltage between input and output
(V
iso(rms)
: 5.0 kV)
(*) Up to Date code "P7" (July 2002) V
CEO
: 35V.
From the production Date code "J5" (May 1997) to "P7" (July
2002), however the products were screened by BV
CEO
≥70V.
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
