MICRONECTOR 300
CONTENTS
Main features ……………………..…..………………………….……………..…………………………………………………………..………………………….. 3
Characteristics …………………..…..………………………….……………..………………..………………………………………………………………….….... 4
Styles available …………………..…..………………………….……………..………………..………………………………………………………………….. 5 - 6
Common dimensions / mounting details …………………..…..………………………….……………..……………….……………………….………… 7
Ordering information …………………..…..……………………………………….……….……………..……………………………………………….………… 8
Product safety information ……………………………..……..……………………………...……..……………………………………………………….…… 9
This publication is issued to provide outline information only and unless specifically agreed to the contrary by WEALD ELECTRONICS LTD.
in writing, is not to form part of any order or contract or be regarded as a representation relating to the products or services concerned.
WEALD ELECTRONICS LTD. reserve the right to alter without notice the product design, price or conditions of supply of any product or service.
Whilst every effort has been made to ensure that the information contained in this catalogue is accurate, no responsibility can be accepted
for any errors or omissions nor for the effects of such errors or omissions.
2
www.wealdelectronics.com
GENERAL INFORMATION
CHARACTERISTICS
•
2mm pitch
Small footprint for increased packing density
Optional Jackscrews will fit either male or female
•
Sizes from 27 to 78 way
•
Male straight p.c., 90° p.c. and crimp terminations
•
Female straight p.c., flexi circuit and crimp terminations
MATERIALS
Insulator
Contact
Termination
Jackscrews
ELECTRICAL
Current
Individual contacts
(in insolation)
All contacts
(simultaneously)
Working voltage
Proof voltage
Contact
resistance
Insulation resistance
initially
after conditioning
initially
after conditioning
MECHANICAL
Mechanical operations
Insertion and withdrawal force (par contact pair)
Contact retention
Crimp barrel accommodation
ENVIRONMENTAL
Climatic category
Vibration severity General
Vibration severity Additional
Bump severity
Shock severity
Acceleration severity
55/125/56
10Hz to 2000Hz
0.75mm/98m/s² (10g
n
) duration 6h
13.3Hz to 2000Hz random with superimposed sinusoids, duration 15min
each of 4 planes. No intermittencies measured when using an H.S.L.I.
(High Speed Logic Interrupt) detector with a trip threshold of 2ns
390m/s² (40g
n
) 4000 ± 10 bumps
981m/s² (100g
n
) for 6ms
490m/s² (50g
n
)
500
0.8N max., 0.2N min.
10N min.
22 AWG – 28AWG to BS G 210 Type A
at 25°C Tamb. 3.3A max.
at 85°C Tamb. 2.6A max.
at 25°C Tamb. 3.0A max.
at 85°C Tamb. 2.2A max.
120V d.c. or a.c. peak
360V d.c. or a.c. peak
10mΩ max.
13mΩ max.
1000MΩ min.
100MΩ min.
Glass filled thermoplastic UL94V-0
Copper alloy plated hard acid gold
Hard acid gold or tin
Stainless steel
MICRONECTOR 300
FOR SALES ENQUIRIES CONTACT
F.C. LANE ELECTRONICS LTD TEL: 01403 790661 FAX: 01403 790849 E-mail: sales@fclane.com
FOR TECHNICAL ENQUIRIES CONTACT
WEALD ELECTRONICS LTD TEL: 01403 790715 FAX: 01403 790734 E-mail: technical@wealdelectronics.com
3
www.wealdelectronics.com
STYLES AVAILABLE

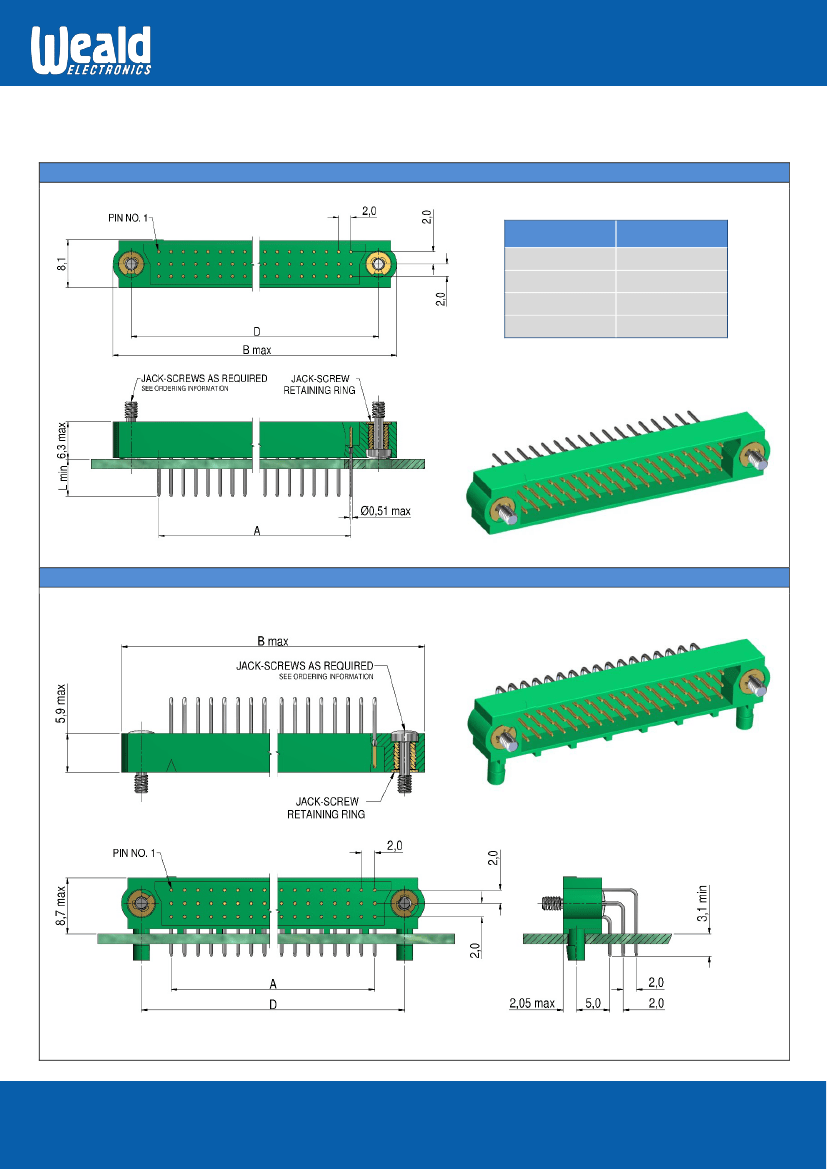

MALE STRAIGHT P.C. TERMINATION TYPE T, N, X, Y & Z
MICRONECTOR 300
Type
T
N
X
Y
L (min)
3.1
7.4
9.5
5.7
MALE 90° P.C. TERMINATION TYPE L
FOR SALES ENQUIRIES CONTACT
F.C. LANE ELECTRONICS LTD TEL: 01403 790661 FAX: 01403 790849 E-mail: sales@fclane.com
FOR TECHNICAL ENQUIRIES CONTACT
WEALD ELECTRONICS LTD TEL: 01403 790715 FAX: 01403 790734 E-mail: technical@wealdelectronics.com
4
www.wealdelectronics.com
MICRONECTOR 300
STYLES AVAILABLE

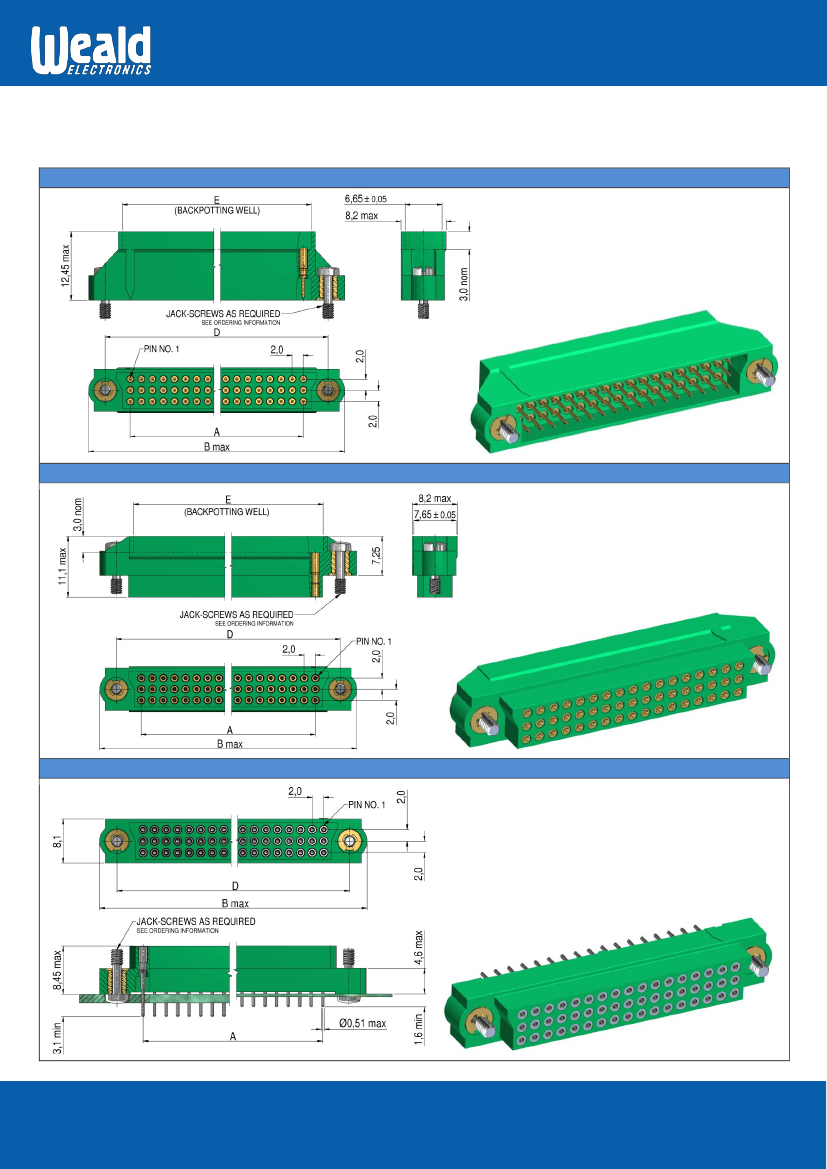

MALE CRIMP TERMINATION TYPE C
FEMALE CRIMP TERMINATION TYPE C & D
FEMALE STRAIGHT P.C. TERMINATION TYPE T & N
FOR SALES ENQUIRIES CONTACT
F.C. LANE ELECTRONICS LTD TEL: 01403 790661 FAX: 01403 790849 E-mail: sales@fclane.com
FOR TECHNICAL ENQUIRIES CONTACT
WEALD ELECTRONICS LTD TEL: 01403 790715 FAX: 01403 790734 E-mail: technical@wealdelectronics.com
5
