PD - 90720C
RADIATION HARDENED
POWER MOSFET
SURFACE MOUNT (SMD-1)
Product Summary
Part Number
IRHN7150
IRHN3150
IRHN4150
IRHN8150
Radiation Level R
DS(on)
100K Rads (Si) 0.065Ω
300K Rads (Si) 0.065Ω
600K Rads (Si) 0.065Ω
1000K Rads (Si) 0.065Ω
HEXFET
®
I
D
34A
34A
34A
34A
IRHN7150
JANSR2N7268U
100V, N-CHANNEL
REF: MIL-PRF-19500/603
®
RAD Hard HEXFET
TECHNOLOGY
™
QPL Part Number
JANSR2N7268U
JANSF2N7268U
JANSG2N7268U
JANSH2N7268U
SMD-1
International Rectifier’s RADHard
technol-
ogy provides high performance power MOSFETs for
space applications. This technology has over a de-
cade of proven performance and reliability in satellite
applications. These devices have been character-
ized for both Total Dose and Single Event Effects (SEE).
The combination of low Rdson and low gate charge
reduces the power losses in switching applications
such as DC to DC converters and motor control. These
devices retain all of the well established advantages
of MOSFETs such as voltage control, fast switching,
ease of paralleling and temperature stability of elec-
trical parameters.
Features:
n
n
n
n
n
n
n
n
n
n
Single Event Effect (SEE) Hardened
Low R
DS(on)
Low Total Gate Charge
Proton Tolerant
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Surface Mount
Ceramic Package
Light Weight
Absolute Maximum Ratings
Parameter
ID @ VGS = 12V, TC = 25°C
ID @ VGS = 12V, TC = 100°C
IDM
PD @ TC = 25°C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
➀
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
➁
Avalanche Current
➀
Repetitive Avalanche Energy
➀
Peak Diode Recovery dv/dt
➂
Operating Junction
Storage Temperature Range
PCKG. Mounting Surface Temp.
Weight
For footnotes refer to the last page
34
21
136
150
1.2
±20
500
34
15
5.5
-55 to 150
Pre-Irradiation
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
o
C
300 ( for 5s)
2.6 (Typical )
g
www.irf.com
1
02/01/01
IRHN7150, JANSR2N7268U
Pre-Irradiation
Electrical Characteristics
@ Tj = 25°C (Unless Otherwise Specified)
Parameter
BVDSS
Drain-to-Source Breakdown Voltage
∆BV
DSS/∆T J Temperature Coefficient of Breakdown
Voltage
RDS(on)
Static Drain-to-Source
On-State Resistance
VGS(th)
Gate Threshold Voltage
gfs
Forward Transconductance
IDSS
Zero Gate Voltage Drain Current
Min
100
—
—
—
2.0
8.0
—
—
—
—
—
—
—
—
—
—
—
—
Typ Max Units
—
0.13
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
4.0
—
—
V
V/°C
Test Conditions
VGS =0 V, ID = 1.0mA
Reference to 25°C, ID = 1.0mA
VGS = 12V, ID = 21A
VGS = 12V, ID = 34A
VDS = VGS, ID = 1.0mA
VDS > 15V, IDS = 21A
VDS= 160V,VGS=0V
VDS = 80V
VGS = 0V, TJ = 125°C
VGS = 20V
VGS = -20V
VGS = 12V, ID = 34A
VDS = 50V
VDD = 50V, ID = 34A,
VGS = 12V, RG =2.35Ω
0.065
Ω
0.070
4.0
V
—
S( )
25
µA
250
100
-100
160
35
65
45
190
170
130
—
Ω
IGSS
IGSS
Qg
Q gs
Q gd
td
(on)
tr
td
(off)
tf
LS + LD
Gate-to-Source Leakage Forward
Gate-to-Source Leakage Reverse
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain (‘Miller’) Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Total Inductance
nA
nC
ns
nH
Measured from the center of
drain pad to center of source pad
VGS = 0V, VDS = 25V
f = 1.0MHz
Ciss
C oss
C rss
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
—
—
—
4300
1200
200
—
—
—
pF
Source-Drain Diode Ratings and Characteristics
Parameter
IS
ISM
VSD
t rr
Q RR
ton
Continuous Source Current (Body Diode)
Pulse Source Current (Body Diode)
➀
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min Typ Max Units
—
—
—
—
—
—
—
—
—
—
34
136
1.4
570
5.8
Test Conditions
A
V
nS
µC
T
j
= 25°C, IS = 34A, VGS = 0V
➃
Tj = 25°C, IF = 34A, di/dt
≥
100A/µs
VDD
≤
25V
➃
Intrinsic turn-on time is negligible. Turn-on speed is substantially controlled by LS + LD.
Thermal Resistance
Parameter
R thJC
RthJ-PCB
Junction-to-Case
Junction-to-PC board
Min Typ Max Units
—
—
—
6.6
0.83
—
°C/W
Test Conditions
soldered to a 1”sq. copper-clad board
Note: Corresponding Spice and Saber models are available on the G&S Website.
For footnotes refer to the last page
2
www.irf.com
Radiation Characteristics
Pre-Irradiation
IRHN7150, JANSR2N7268U
International Rectifier Radiation Hardened MOSFETs are tested to verify their radiation hardness capability.
The hardness assurance program at International Rectifier is comprised of two radiation environments.
Every manufacturing lot is tested for total ionizing dose (per notes 5 and 6) using the TO-3 package. Both
pre- and post-irradiation performance are tested and specified using the same drive circuitry and test
conditions in order to provide a direct comparison.
Table 1. Electrical Characteristics @ Tj = 25°C, Post Total Dose Irradiation
➄➅
Parameter
BV
DSS
V
GS(th)
I
GSS
I
GSS
I
DSS
R
DS(on)
R
DS(on)
V
SD
Drain-to-Source Breakdown Voltage
Gate Threshold Voltage
Gate-to-Source Leakage Forward
Gate-to-Source Leakage Reverse
Zero Gate Voltage Drain Current
Static Drain-to-Source
➃
On-State Resistance (TO-3)
Static Drain-to-Source
➃
On-State Resistance (SMD-1)
Diode Forward Voltage
➃
100K Rads(Si)
1
600 to 1000K Rads (Si)
2
Units
V
nA
µA
Ω
Ω
V
Test Conditions
V
GS
= 0V, I
D
= 1.0mA
V
GS
= V
DS
, I
D
= 1.0mA
V
GS
= 20V
V
GS
= -20 V
V
DS
=80V, V
GS
=0V
V
GS
= 12V, I
D
=21A
V
GS
= 12V, I
D
=21A
V
GS
= 0V, IS = 34A
Min
200
2.0
—
—
—
—
—
—
Max
—
4.0
100
-100
25
0.065
0.065
1.4
Min
200
1.25
—
—
—
—
—
—
Max
—
4.5
100
-100
50
0.09
0.09
1.4
1. Part number IRHN7150 (JANSR2N7268U)
2. Part numbers IRHN3150 (JANSF2N7268U), IRHN4150 (JANSG2N7268U) and IRHN8150 (JANSH2N7268U)
International Rectifier radiation hardened MOSFETs have been characterized in heavy ion environment for
Single Event Effects (SEE). Single Event Effects characterization is illustrated in Fig. a and Table 2.
Table 2. Single Event Effect Safe Operating Area
Ion
Cu
Br
LET
MeV/(mg/cm
2
))
28
36.8
Energy
(MeV)
285
305
Range
V
DS(V)
(µm)
@
V
GS
=0V @
V
GS
=-5V @
V
GS
=-10V @
V
GS
=-15V @
V
GS
=-20V
43
100
100
100
80
60
39
100
90
70
50
—
120
100
80
VDS
60
40
20
0
0
-5
-10
VGS
-15
-20
-25
Cu
Br
Fig a.
Single Event Effect, Safe Operating Area
For footnotes refer to the last page
www.irf.com
3
IRHN7150, JANSR2N7268U
Post-Irradiation
Pre-Irradiation

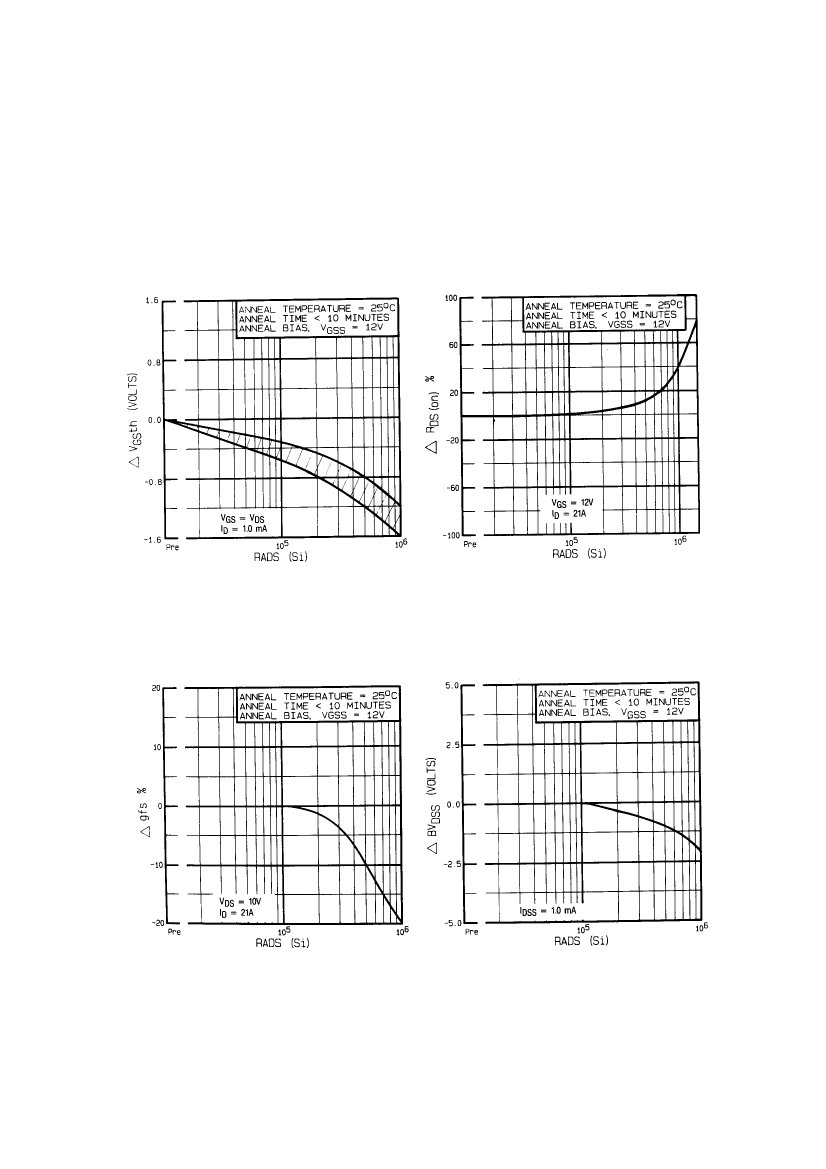

Fig 1.
Typical Response of Gate Threshhold
Fig 2.
Typical Response of On-State Resistance
Vs. Total Dose Exposure
Voltage Vs. Total Dose Exposure
Fig 3.
Typical Response of Transconductance
Vs. Total Dose Exposure
Fig 4.
Typical Response of Drain to Source
Breakdown Vs. Total Dose Exposure
4
www.irf.com
Post-Irradiation
Pre-Irradiation
IRHN7150, JANSR2N7268U

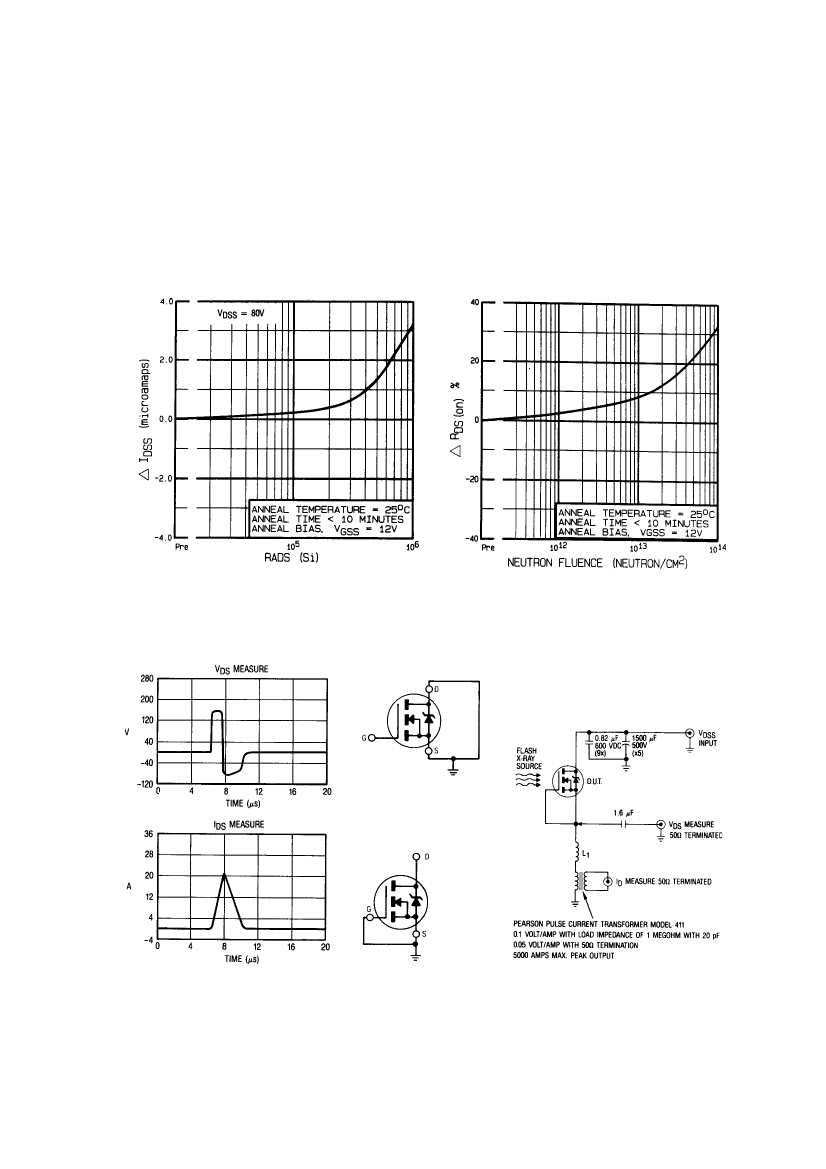

Fig 5.
Typical Zero Gate Voltage Drain
Current Vs. Total Dose Exposure
Fig 6.
Typical On-State Resistance Vs.
Neutron Fluence Level
Fig 8a.
Gate Stress of V
GSS
Equals 12 Volts During
Radiation
Fig 7.
Typical Transient Response
of Rad Hard HEXFET During
1x10
12
Rad (Si)/Sec Exposure
Fig 8b.
V
DSS
Stress Equals
80% of B
VDSS
During Radiation
Fig 9.
High Dose Rate
(Gamma Dot) Test Circuit
www.irf.com
5
