PC715V0NSZX Series
PC715V0NSZX
Series
DIP 6 pin Darlington Phototransistor
Output Photocoupler
■
Description
PC715V0NSZX Series
contains an IRED optically
coupled to a phototransistor.
It is packaged in a 6 pin DIP.
Input-output isolation voltage(rms) is 5.0kV.
CTR is MIN. 600% at input current of 1mA.
■
Agency approvals/Compliance
1. Recognized by UL1577 (Double protection isolation),
file No. E64380 (as model No.
PC715V)
2. Approved by TÜV (VDE0884) (as an option) file No.
R-9151576 (as model No.
PC715V)
3. Package resin : UL flammability grade (94V-0)
■
Features
1. 6 pin DIP package
2. Double transfer mold package (Ideal for Flow
Soldering)
3. Darlington phototransistor output (CTR : MIN. 600%
at I
F
=1mA, V
CE
=2V)
4. High isolation voltage between input and output
(V
iso(rms)
: 5.0kV)
■
Applications
1. Home appliances
2. Programmable controllers
3. Personal computer peripherals
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
1
Sheet No.: D2-A04401EN
Date Nov. 28. 2003
© SHARP Corporation
PC715V0NSZX Series
■

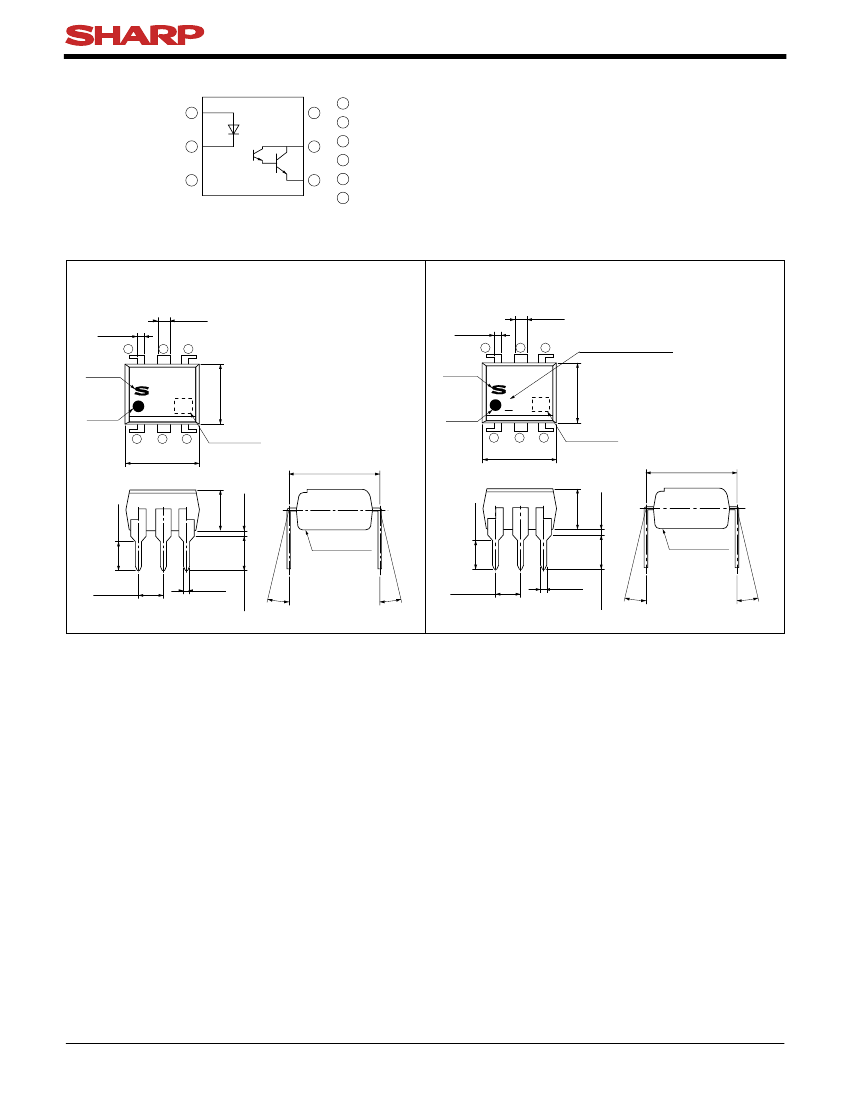

Internal Connection Diagram
1
2
3
1
6
5
4
2
3
4
5
6
Anode
Cathode
NC
Emitter
Collector
NC
■
Outline Dimensions
1. Through-Hole [ex.
PC715V0NSZX]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
Anode
mark
1
2
3
6
5
4
(Unit : mm)
2. Through-Hole (VDE0884 option) [ex.
PC715V0YSZX]
1.2
±0.3
0.6
±0.2
SHARP
mark
"S"
6
5
4
VDE0884
Identification mark
6.5
±0.5
Date code
7.62
±0.3
0.5
TYP.
3.5
±0.5
6.5
±0.5
PC715V
PC715V
Anode
mark
1
4
2
3
±0.3
Date code
7.62
±0.3
0.5
TYP.
3.5
±0.5
7.12
±0.5
7.12
2.9
±0.5
2.9
±0.5
Epoxy resin
3.25
±0.5
0.5
±0.1
0.5
±0.1
3.25
±0.5
Epoxy resin
2.54
±0.25
θ
θ
: 0 to 13˚
θ
2.54
±0.25
θ
θ
: 0 to 13˚
θ
Product mass : approx. 0.36g
Sheet No.: D2-A04401EN
2
PC715V0NSZX Series
■
Absolute Maximum Ratings
Parameter
Symbol
Forward current
I
F
*1
Peak forward current
I
FM
Reverse voltage
V
R
Power dissipation
P
Collector-emitter voltage V
CEO
Emitter-collector voltage V
ECO
I
C
Collector current
Collector power dissipation
P
C
P
tot
Total power dissipation
T
opr
Operating temperature
T
stg
Storage temperature
*2
Isolation voltage
V
iso (rms)
*3
Soldering temperature
T
sol
(T
a
=25˚C)
Rating
Unit
50
mA
1
A
6
V
70
mW
35
V
6
V
80
mA
150
mW
170
mW
−25
to
+100
˚C
−40
to
+125
˚C
5
kV
260
˚C
*1 Pulse width≤100µs, Duty ratio : 0.001
*2 40 to 60%RH, AC for 1minute, f=60Hz
*3 For 10s
■
Electro-optical Characteristics
Parameter
Symbol
Forward voltage
V
F
Peak forward voltage
V
FM
Reverse current
I
R
Terminal capacitance
C
t
I
CEO
Collector dark current
Collector-emitter breakdown voltage BV
CEO
Emitter-collector breakdown voltage BV
ECO
Current transfer ratio
I
C
Collector-emitter saturation voltage V
CE (sat)
Isolation resistance
R
ISO
C
f
Floating capacitance
f
C
Cut-off frequency
t
r
Rise time
Response time
Fall time
t
f
Conditions
I
F
=10mA
I
FM
=0.5V
V
R
=4V
V=0, f=1kHz
V
CE
=10V,
I
F
=0
I
C
=0.1mA,
I
F
=0
I
E
=10µA,
I
F
=0
I
F
=1mA,
V
CE
=2V
I
F
=20mA,
I
C
=5mA
DC500V, 40 to 60%RH
V=0, f=1MHz
V
CE
=2V,
I
C
=2mA,
R
L
=100Ω −3dB
Output
Input
Input
Output
Transfer
charac-
teristics
V
CE
=2V,
I
C
=10mA,
R
L
=100Ω
MIN.
−
−
−
−
−
35
6
6.0
−
5×10
10
−
−
−
−
TYP.
1.2
−
−
30
−
−
−
16.0
−
1×10
11
0.6
6
60
53
MAX.
1.4
3.0
10
250
1 000
−
−
75.0
1.0
−
1.0
−
250
250
(T
a
=25˚C)
Unit
V
V
µA
pF
nA
V
V
mA
V
Ω
pF
kHz
µs
µs
Sheet No.: D2-A04401EN
4
